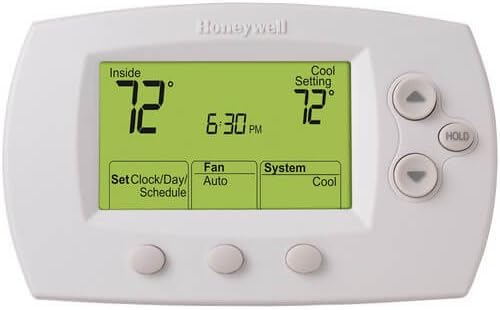

Resideo FocusPRO 6000 TH6220D1028 Programmable Thermostat, 5-1-1 Day, 5-2 Day Programmability, 2 H / 2 C, Auto, Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC / 750 mV, Dual Powered
Resideo FocusPRO 6000 TH6220D1028 Programmable Thermostat, 5-1-1 Day, 5-2 Day Programmability, 2 H / 2 C, Auto, Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC / 750 mV, Dual Powered
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Control Range | : | 40 °F-99 °F |
| Dehumidification | : | No |
| Dimensions | : | 3-9/16" H x 5-13/16" W x 1-1/2" D |
| Display Type | : | Digital |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH6220D1028 |
| Mounting Type | : | Wall Mount (Horizontal) |
| Power Source | : | Dual Powered |
| Programmability | : | 5-1-1 Day, 5-2 Day |
| Series | : | FocusPRO 6000 |
| Stages | : | 2 H / 2 C |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | Y, R, W2(AUX), L, W(O/B), Rc, Y2(E), G, C |
| Voltage Rating | : | 20-30 VAC / 750 mV |
The FocusPRO 6000 programmable thermostat offers electronic control for 24 VAC conventional and heat pump systems, as well as 750 mV heating systems. It features flexible programming options, allowing users to set schedules for 5-1-1 day (weekdays, Saturday, Sunday) or 5-2 day (weekdays, weekend) configurations to optimize comfort and potential energy savings.Equipped with a large, clear backlit display, this thermostat is easy to read in various lighting conditions and prominently shows both room and set temperatures. It provides precise temperature control within +/- 1°F and can be powered either through a hardwired connection or AA batteries, offering installation flexibility.
Resideo Programmable Thermostat, Model: FocusPRO 6000, 5-1-1 Day, 5-2 Day Programmability, 2 H / 2 C, Auto, Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC / 750 mV, Dual Powered, Digital, 40°F - 90°F (Heat), 50°F - 99°F (Cool), Y, R, W2(aux), L, W(o/B), Rc, Y2(e), G, C Terminal Designation, ± 1 °F, 5-90% RH (Non-Condensing), No Dehumidification, White, 3-9/16" H x 5-13/16" W x 1-1/2" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A, 50 Hz, 60 Hz
- Offers versatile 5-1-1 or 5-2 day programming to fit different schedules.
- Features a large, clear, backlit digital display for easy viewing.
- Maintains consistent comfort with precise temperature control (+/- 1°F).
- Compatible with up to 2 Heat / 2 Cool conventional systems and heat pumps.
- Dual powered via hardwire (20-30 VAC / 750 mV) or AA batteries.
- Adaptive Intelligent Recovery ensures the desired temperature is reached by the programmed time.
- Includes a 5-year limited warranty.
