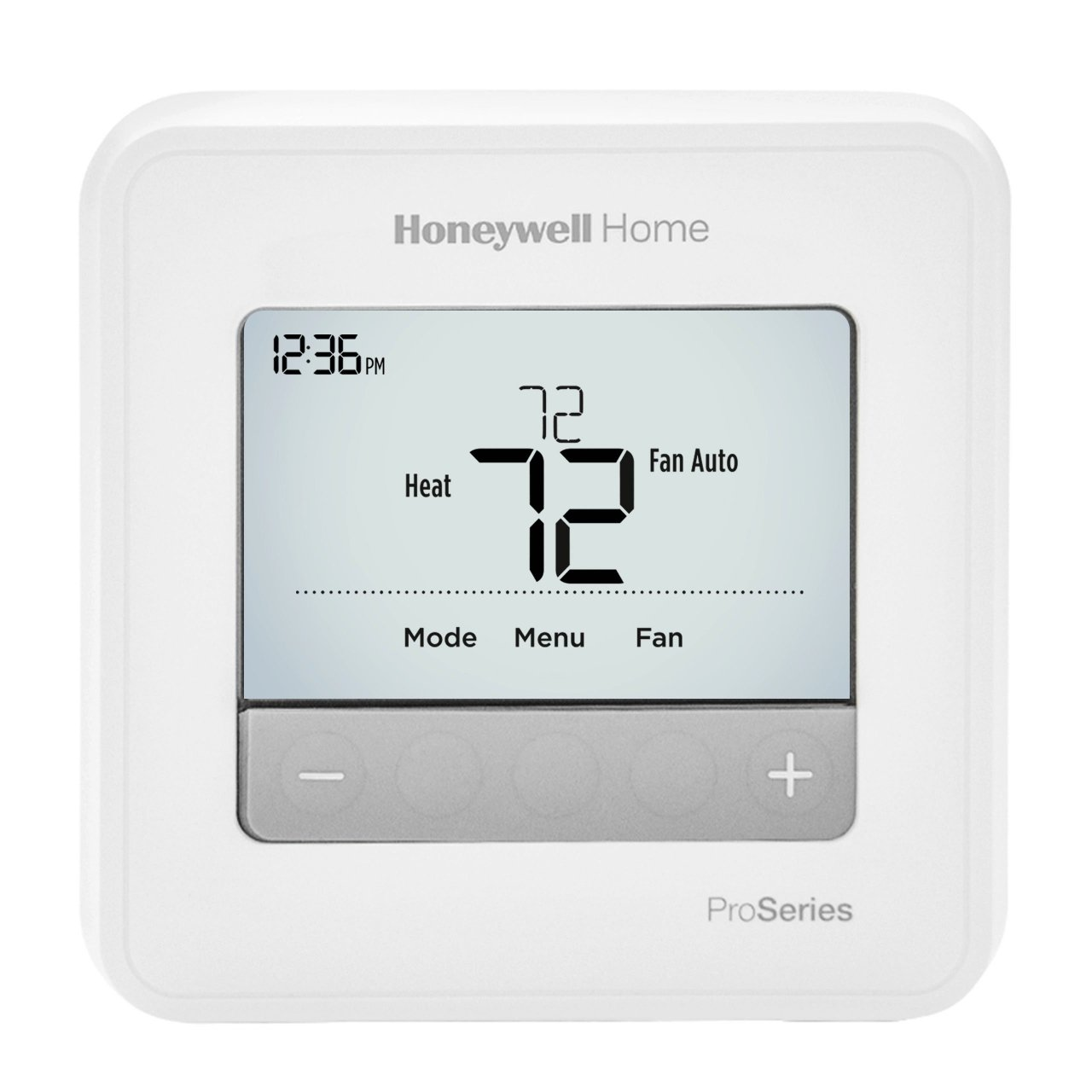

Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Heating W), 0.02-1.0 A (Cooling Y), 0.02-0.5 A (Fan G) |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A |
| Dehumidification | : | No |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4-1/16" H x 4-1/16" W x 1-5/32" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | UWP Mounting System |
| Fan Current | : | 0.02-0.5 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH4110U2005/U |
| Mounting Type | : | Wall Mount (UWP Mount) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Sensing Element | : | Thermistor |
| Series | : | T4 Pro |
| Stages | : | 1 H / 1 C (Conventional or Heat Pump Without Aux Heat) |
| Switch Type | : | Relay |
| Temperature Rating | : | 37-102 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, RC, C, W, O/B, Y, G, L, K |
| VA Rating | : | 1 VA (Backlight On) |
| Voltage Rating | : | 20-30 VAC |
The T4 Pro Programmable Thermostat streamlines everything from installation to customer service and support. With a 7-day programmable schedule and simple interface, the T4 will enhance the entire thermostat experience for you and your customers.The T4 Pro Thermostat is simple, programmable control for your customers. Easy to install and simple to use, the T4 7-day programmable thermostat offers weekday and weekend scheduling in a no-frills push-button format. As part of the Honeywell Home T-Series, the T4 makes your job easier too, with quick installation features and maintenance reminders so customers can help themselves and help reduce service calls. With a snap-together design, the T-Series enables you to easily move customers from a non-connected to a connected thermostat without having to replace the connector and wall plate. (C-wire required)
Resideo Programmable Thermostat, Model: T4 Pro, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), UWP Mounting System, R, RC, C, W, O/B, Y, G, L, K Terminal Designation, 1 VA (Backlight On), 37-102 °F, ± 1 °F, Thermistor, 5-90% RH (Non-Condensing), No Dehumidification, White, 4-1/16" H x 4-1/16" W x 1-5/32" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC), 50 Hz, 60 Hz, Heat/Off/Cool/Auto (System), Auto/On (Fan), Relay
- Controls 1 Heat/1 Cool conventional systems or heat pumps without auxiliary heat.
- Offers flexible programming options: 7-day, 5-2 day, 5-1-1 day, or non-programmable.
- Features simple push-button functionality and a clear, backlit digital display.

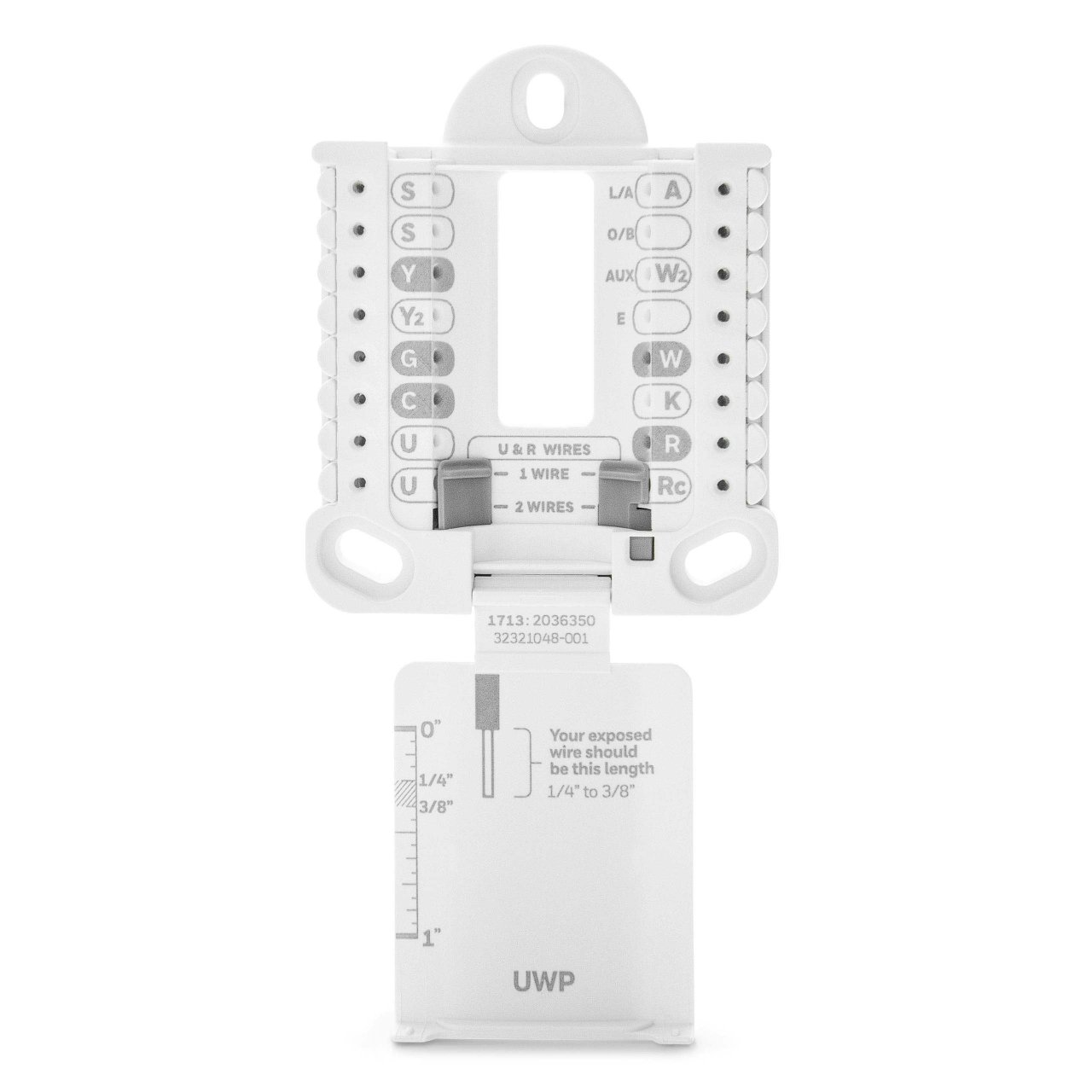

- Utilizes the standard UWP mounting system for simplified installation and standardization across the T Series.
- Includes programmable filter change reminders.
- Dual powered: Operates via battery (2 AA included) or hardwired (20-30 VAC).
- Covered by a 5-year manufacturer warranty.
