Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
Resideo T4 Pro TH4110U2005/U Programmable Thermostat, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Heating W), 0.02-1.0 A (Cooling Y), 0.02-0.5 A (Fan G) |
| Battery Size | : | AA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Auto, Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A |
| Dehumidification | : | No |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4-1/16" H x 4-1/16" W x 1-5/32" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | UWP Mounting System |
| Fan Current | : | 0.02-0.5 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH4110U2005/U |
| Mounting Type | : | Wall Mount (UWP Mount) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Programmability | : | 7 Day, 5-1-1 Day, 5-2 Day or Non-Programmable |
| Sensing Element | : | Thermistor |
| Series | : | T4 Pro |
| Stages | : | 1 H / 1 C (Conventional or Heat Pump without Aux Heat) |
| Switch Type | : | Relay |
| Temperature Rating | : | 37-102 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, RC, C, W, O/B, Y, G, L, K |
| Termination | : | Screw Terminals |
| VA Rating | : | 1 VA (Backlight On) |
| Voltage Rating | : | 20-30 VAC |

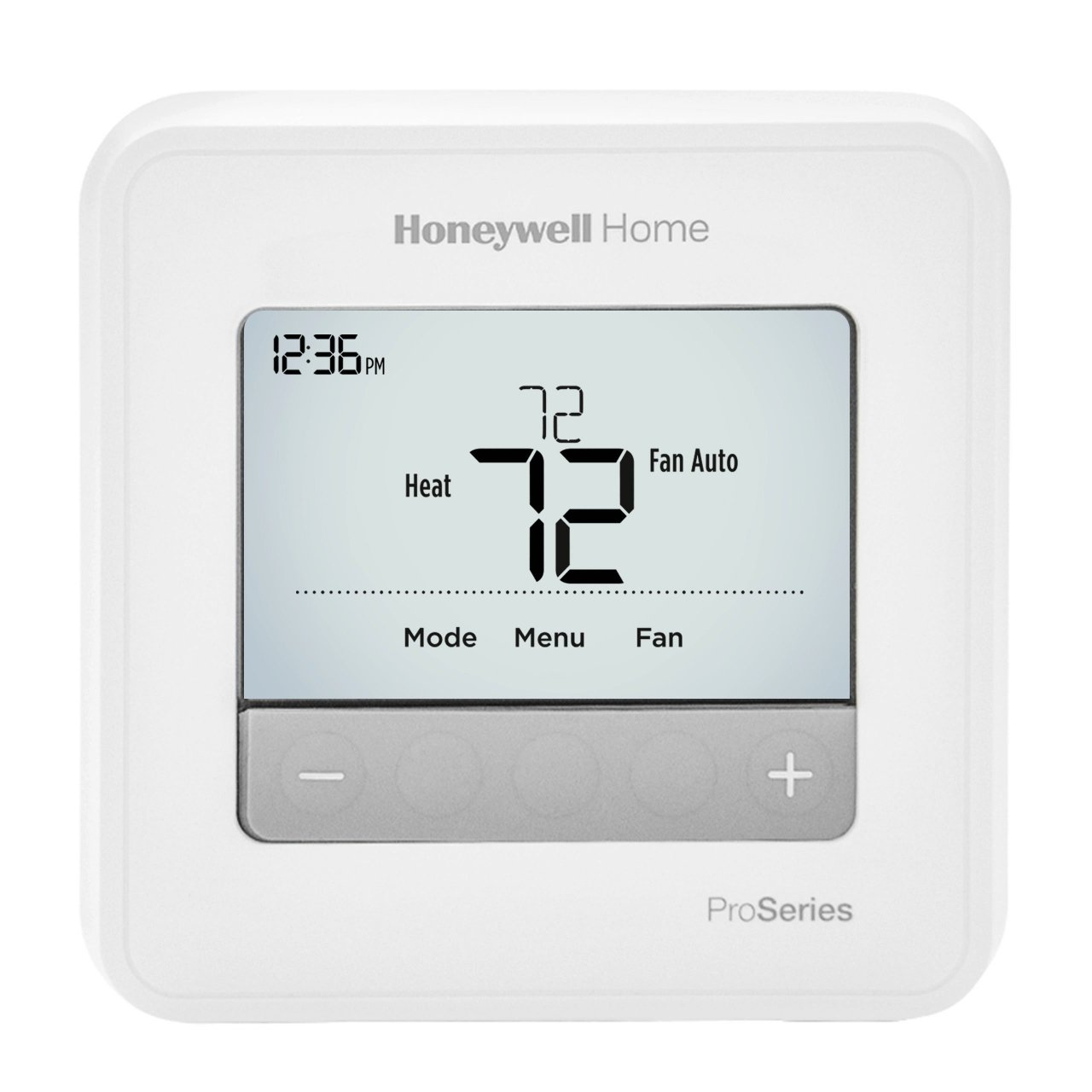

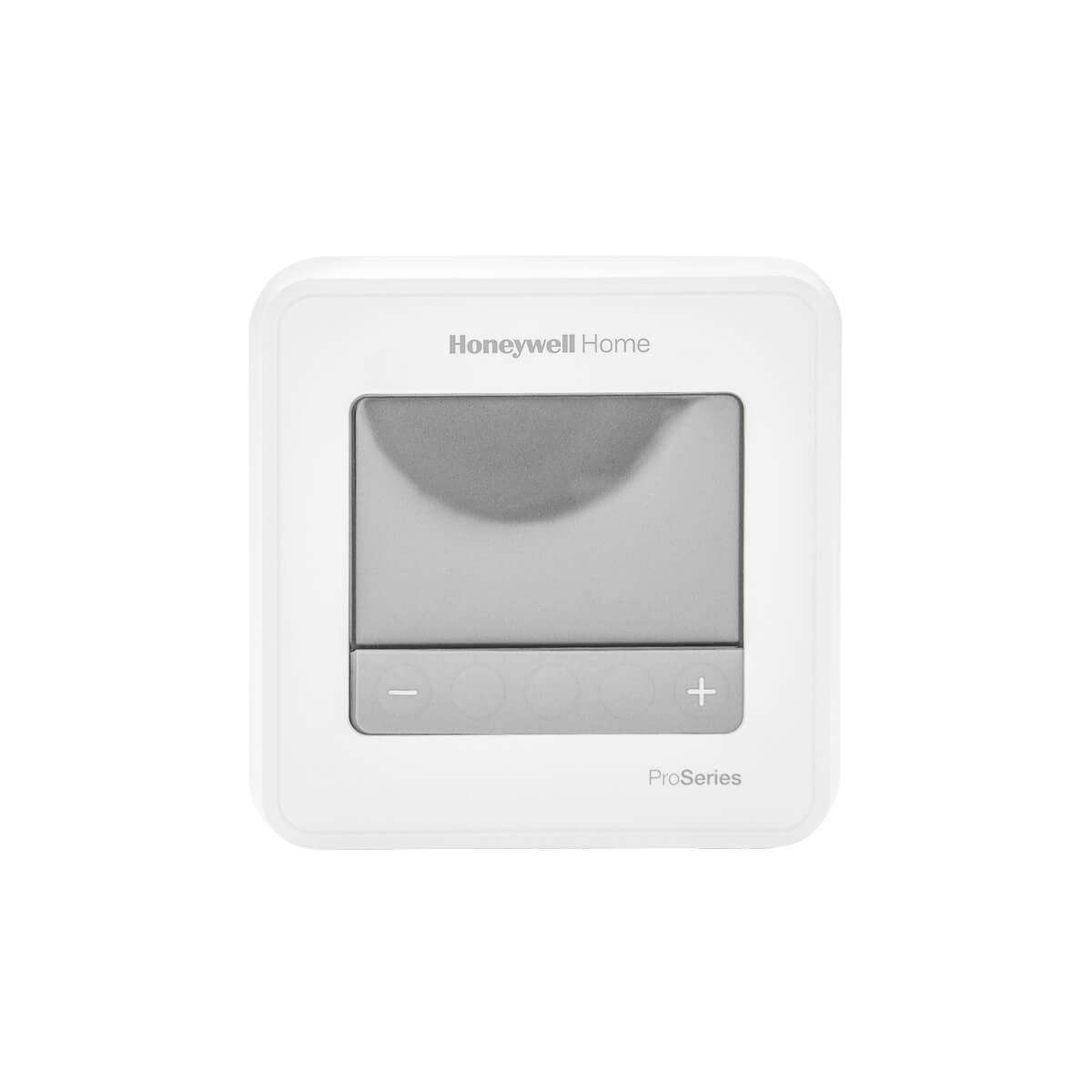

Easy to install and intuitive to use, the T4 Pro Programmable Thermostat learns how long it takes your system to reach the desired temperature and activates the system earlier, ensuring you feel comfortable sooner thanks to its Adaptive Intelligent Recovery feature. This thermostat helps you manage home heating and cooling with a simple, easy-to-use device.Designed to streamline everything from installation to user experience, the T4 features push-button control and flexible seven-day scheduling, including an option to set a different schedule on weekends. It utilizes the standard UWP mounting system for quick installs and compatibility across the T Series line.
Resideo Programmable Thermostat, Model: T4 Pro, 7 Day, 5-1-1 Day, 5-2 Day Or Non-Programmable Programmability, 1 H / 1 C (Conventional Or Heat Pump Without Aux Heat), Auto, Manual, Wall Mount (UWP Mount), Wired / Lead Wires, 20-30 VAC, Dual Powered, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), Screw Terminals, UWP Mounting System, R, RC, C, W, O/B, Y, G, L, K Terminal Designation, 1 VA (Backlight On), 37-102 °F, ± 1 °F, Thermistor, 5-90% RH (Non-Condensing), No Dehumidification, White, 4-1/16" H x 4-1/16" W x 1-5/32" D Dimensions, Plastic, AA Alkaline Battery, 0.02-1.0 A (Heat/Cool, 20-30 VAC), 0.02-0.5 A (Fan, 20-30 VAC), 50 Hz, 60 Hz, Heat/Off/Cool/Auto (System), Auto/On (Fan)
- Offers versatile programming options: 7-day, 5-2, 5-1-1 day schedules, or non-programmable mode.
- Features Adaptive Intelligent Recovery to learn system runtime and optimize comfort.
- Simple push-button controls, a clear backlit digital display, filter change reminders, and auto/manual changeover enhance usability.
- Compatible with single-stage (1H/1C) conventional and heat pump systems (without auxiliary heat).
- Dual-powered operation via included AA batteries or hardwired connection (C-wire optional).

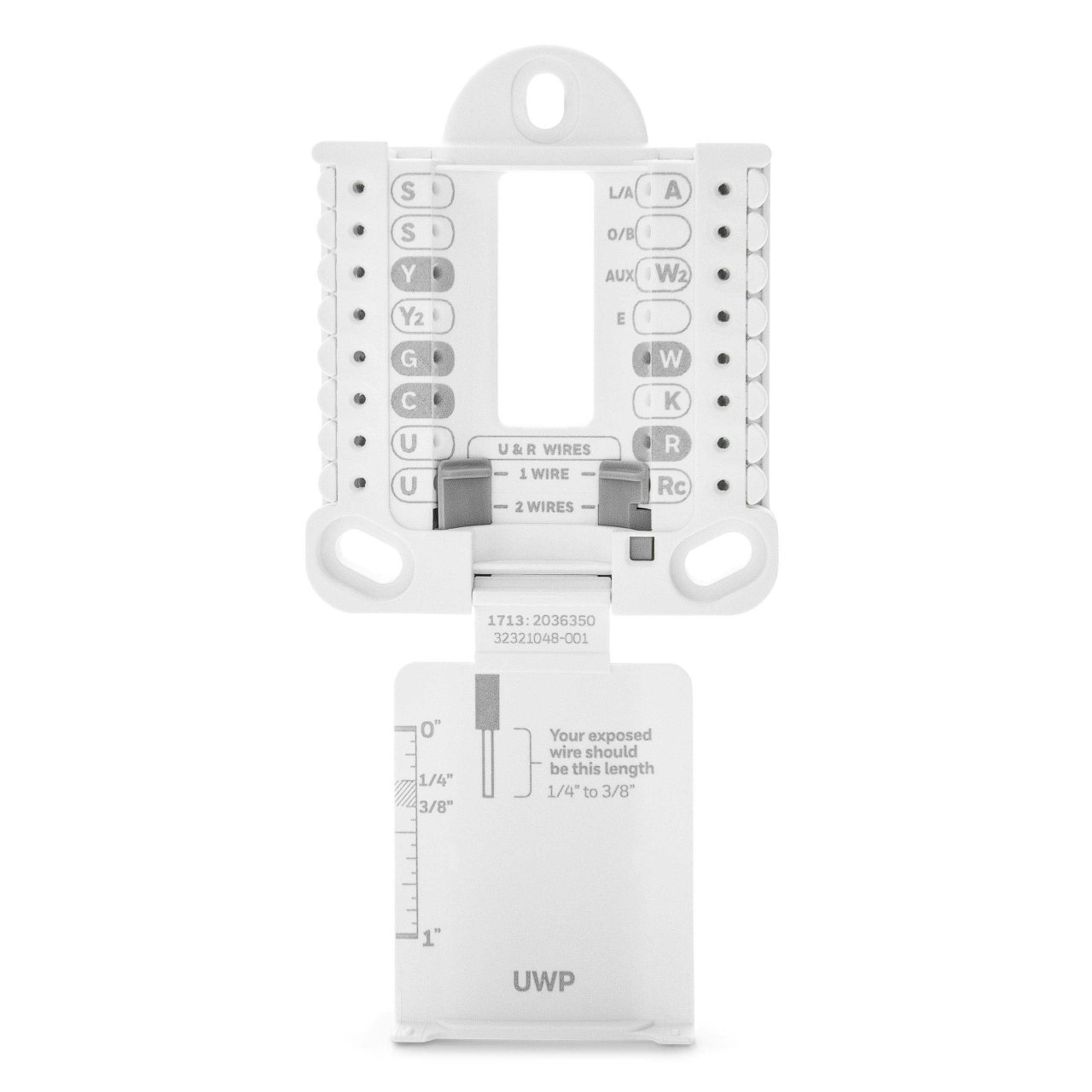

- Installs quickly using the standard UWP mounting system (J-box adapter and decorative cover plate included).
- Backed by a 5-year limited warranty.
