Resideo PRO 3000 TH3210D1004 Non-Programmable Thermostat, 2 H / 1 C (Heat Pump), Screw Terminal, 20-30 VAC, 750 Mvdc, Dual Powered, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
Resideo PRO 3000 TH3210D1004 Non-Programmable Thermostat, 2 H / 1 C (Heat Pump), Screw Terminal, 20-30 VAC, 750 Mvdc, Dual Powered, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Running, Heat/Cool) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Screw Terminal |
| Contact Rating | : | 0.02-1.0 A (20-30 VAC / 750 mV DC) |
| Cool Current | : | 0.02-1.0 A (Running) |
| Cycles per Hour | : | 1-12 CPH (Heating), 1-6 CPH (Cooling) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 3-13/16" H x 5-3/8" W x 1-1/4" D |
| Display Type | : | LCD |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (Running) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | TH3210D1004 |
| Mounting Type | : | Wall Mount (Horizontal) |
| Number of Fans | : | 1 |
| Power Source | : | Dual Powered |
| Sensing Element | : | Thermistor |
| Stages | : | 2 H / 1 C (Heat Pump) |
| Suitable For Use With | : | Up to 2 Heat/1 Cool Heat Pump Systems (with Auxiliary Heat) |
| Switch Position | : | Heat/Off/Cool/EM.HEAT (System), Auto/On (Fan) |
| Switch Type | : | Relay |
| Temperature Rating | : | 32-120 °F |
| Temperature Settings | : | 40-90 °F (Heat); 50-99 °F (Cool) |
| Voltage Rating | : | 20-30 VAC, 750 mVDC |

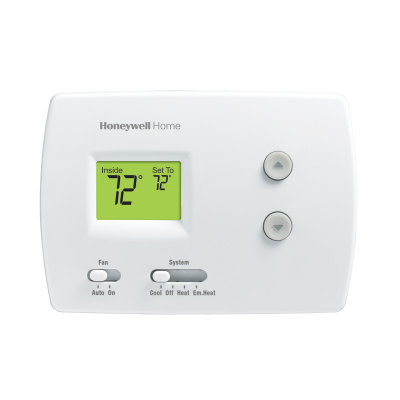

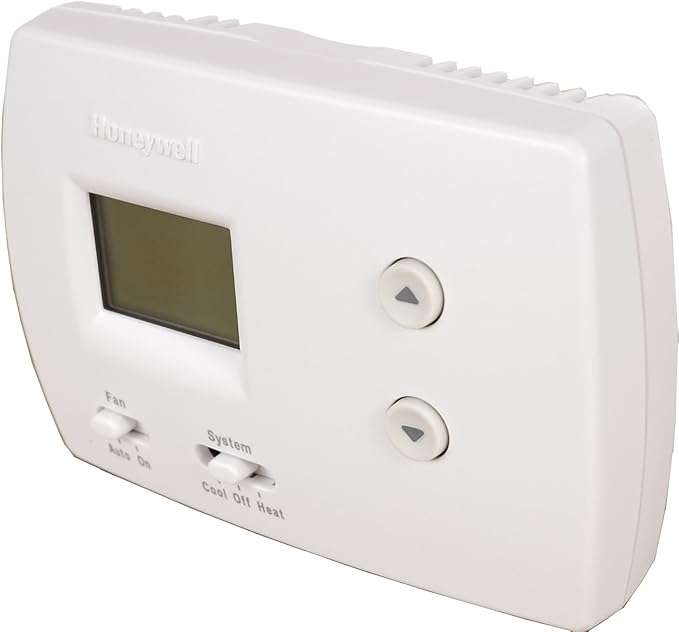

Built for basic functionality, the PRO 3000 Non-programmable Digital Thermostat has an easy-to-read backlit digital display showing current and set temperatures. Features slide switches for easy transition between heat, cool, and fan modes.Provide basic operation and simple temperature control for your customers with the Honeywell Home Non-Programmable Thermostat from Resideo. Users can expect years of quality and reliable service from the Honeywell brand.
Resideo Non-Programmable Thermostat, Model: PRO 3000, 2 H / 1 C (Heat Pump), Screw Terminal, 20-30 VAC, 750 Mvdc, Dual Powered, Manual Changeover, LCD, 40-90 °F (Heat); 50-99 °F (Cool) Temperature Settings, 1 Fan(s), Wall Mount (Horizontal), ± 1 °F Differential Temperature, AA Alkaline Battery, Relay, Heat/Off/Cool/Em.heat (System), Auto/On (Fan), Thermistor, 3-13/16" H x 5-3/8" W x 1-1/4" D Dimensions, White, 5-90% RH (Non-Condensing), 0.02-1.0 A (Running, Heat/Cool), 50 Hz, 60 Hz, 1-12 CPH (Heating), 1-6 CPH (Cooling)
- Features an easy-to-read backlit digital display showing both current and set temperatures.
- Simple operation with slide switches for selecting heat, cool, emergency heat, off modes, and fan control (Auto/On).
- Maintains consistent comfort with precise temperature control accuracy of ±1°F.
- Offers flexible installation with dual power options (battery or hardwired).
- Includes UWP mounting system and standard installation adapter (J-box adapter).
- Built-in compressor protection helps prevent equipment damage.
- Compatible With: Up to 2 Heat/1 Cool Heat Pump systems with auxiliary heat.
- Comes with a 5-year manufacturer warranty.
