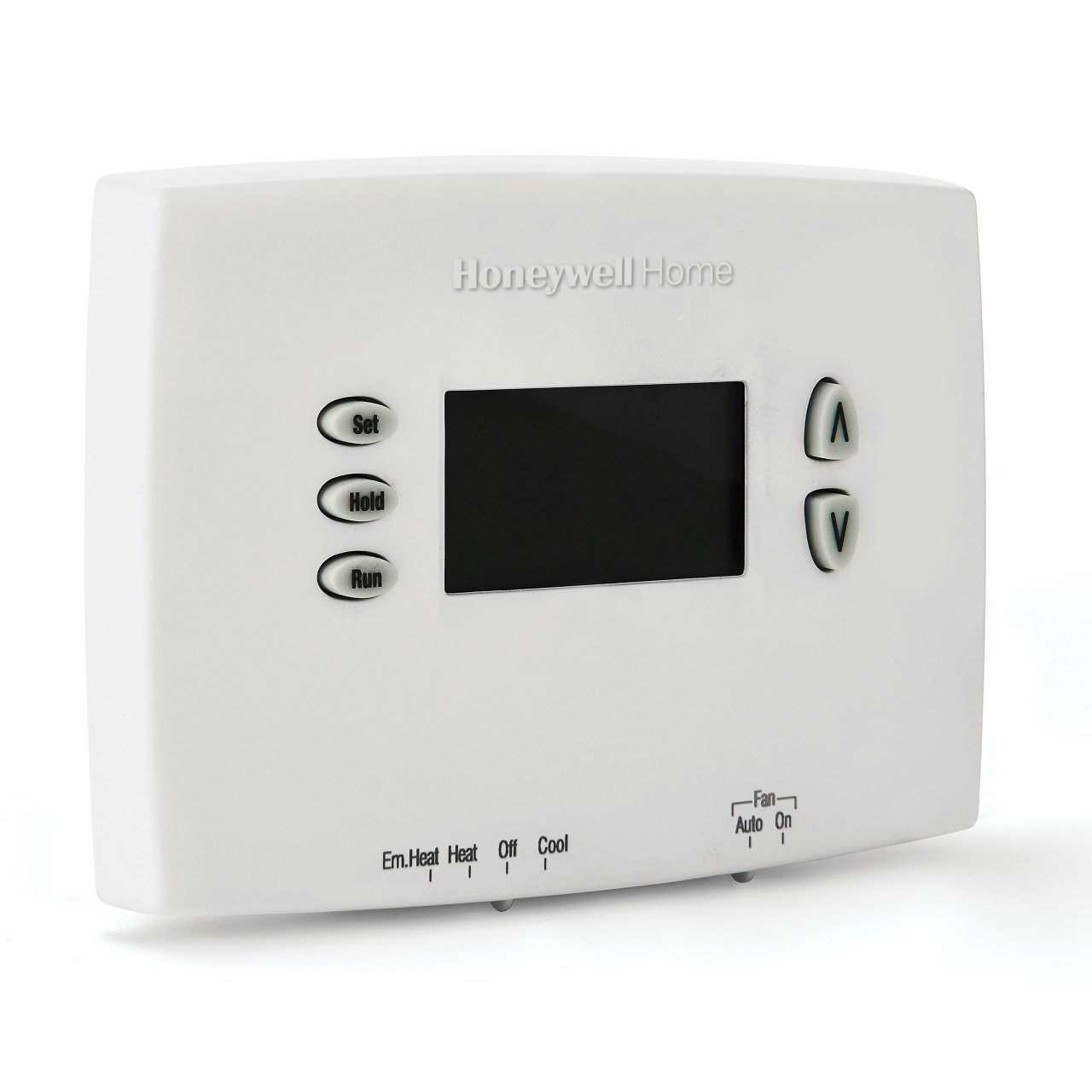

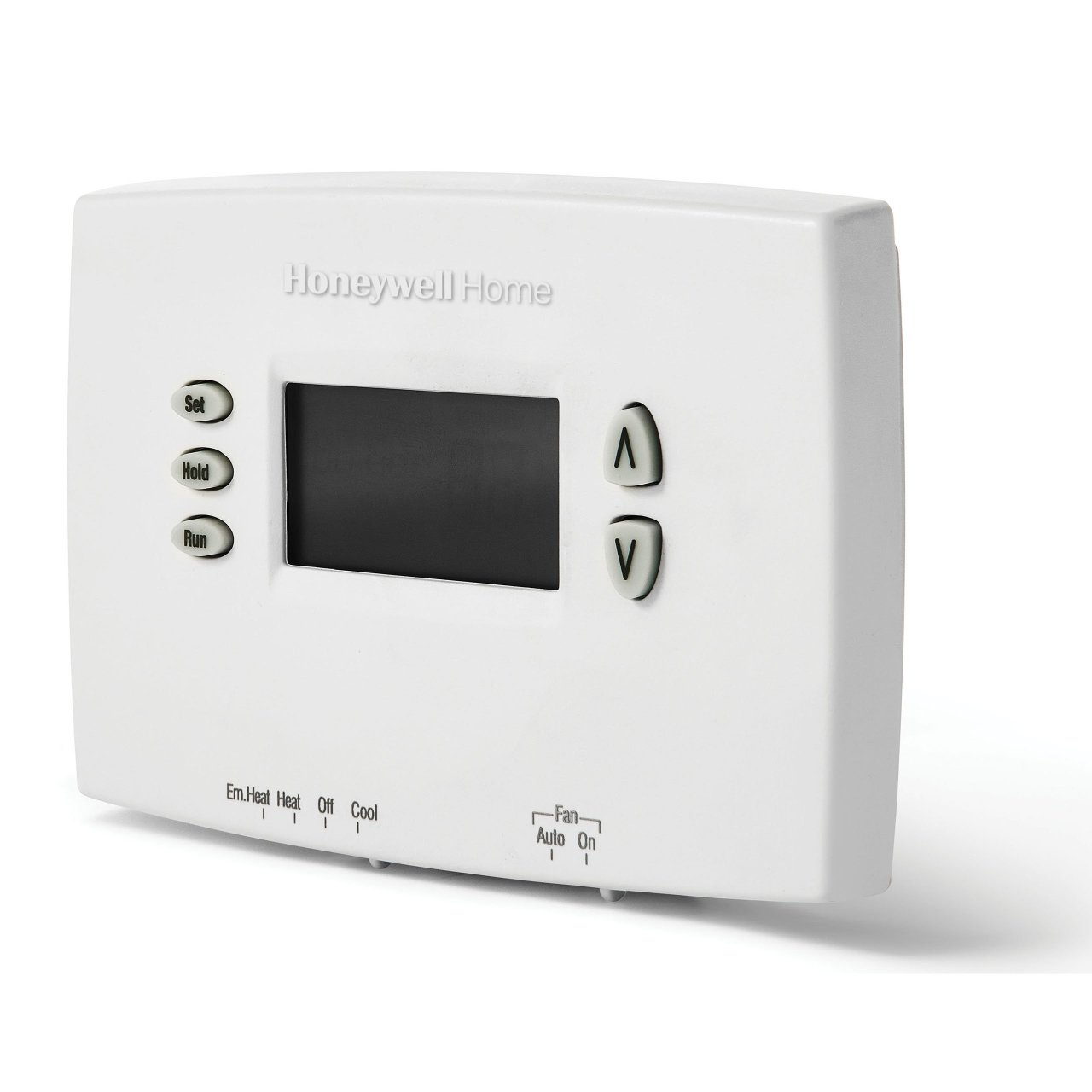

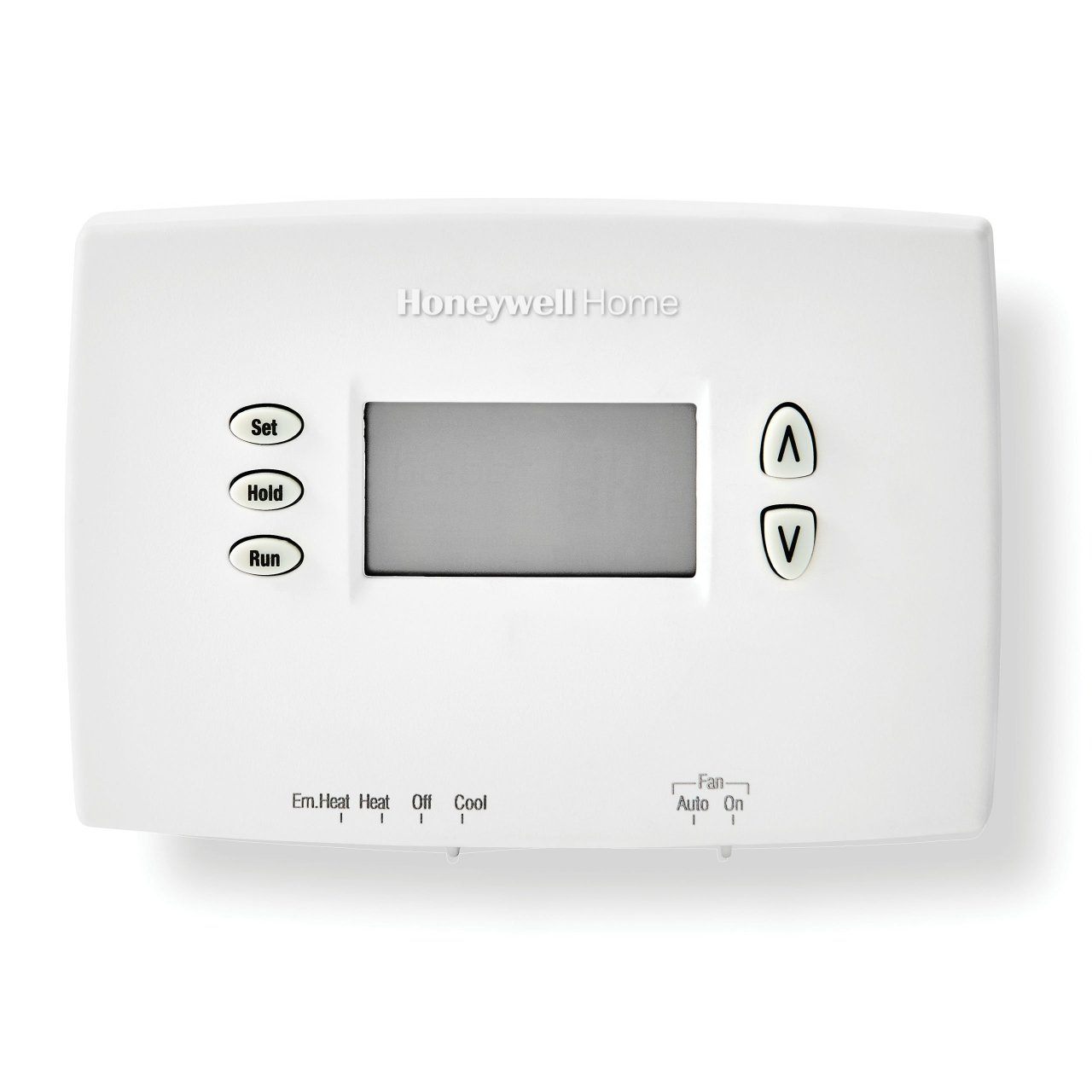

Resideo PRO 2000 TH2210DH1000 Programmable Thermostat, 5-2 Day Programmability, 2 H / 1 C (Heat Pump), Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC, Dual Powered
Resideo PRO 2000 TH2210DH1000 Programmable Thermostat, 5-2 Day Programmability, 2 H / 1 C (Heat Pump), Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC, Dual Powered
| Accuracy | : | ± 1 °F |
| Battery Size | : | AAA |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Wired / Lead Wires |
| Contact Rating | : | 0.02-1.0 A (20-30 VAC) |
| Control Range | : | 40 °F-90 °F (Heat), 50 °F-99 °F (Cool) |
| Cool Current | : | 0.02-1.0 A (Compressor Stage 1), 0.02-1.0 A (Changeover Valve Cool) |
| Cycles per Hour | : | 2-6 CPH (Heating), 2-6 CPH (Cooling) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 3-7/16" H x 4-5/8" W x 1-3/16" D |
| Display Type | : | LCD (Backlit) |
| Electrical Connection | : | Screw Terminals |
| Fan Current | : | 0.02-1.0 A |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Material | : | Plastic |
| Model | : | TH2210DH1000 |
| Mounting Type | : | Wall Mount (Horizontal) |
| Power Source | : | Dual Powered |
| Programmability | : | 5-2 Day |
| Sensing Element | : | Thermistor |
| Series | : | PRO 2000 |
| Stages | : | 2 H / 1 C (Heat Pump) |
| Temperature Rating | : | 32-120 °F |
| Temperature Settings | : | 40°F - 90°F (Heat), 50°F - 99°F (Cool) |
| Terminal Designation | : | R, C, Y, AUX/E, G, O, B |
| Termination | : | Screw Terminals |
| Voltage Rating | : | 20-30 VAC |
The Honeywell Home PRO programmable family of thermostats from Resideo offers your customers a basic thermostat with the benefits of energy savings. The PRO 2000 Horizontal Thermostat features an easy-to-read display and 5-2 day programming for precise control that fits their schedule.The simplicity of the Honeywell Home PRO 2000 Horizontal thermostat from Resideo makes it an easy upgrade from basic up-down temperature controls without committing to a WiFi-connected thermostat. The PRO 2000 thermostat has a large, backlit screen that is easy-to-read and features a real-time clock, with simple push-button controls. If your customers are looking to take the first steps to a smart home, this thermostat's 5-2 day programming lets them set separate heating and cooling schedules for the weekdays and weekends, giving them energy-saving automation from a non-connected thermostat.
Resideo Programmable Thermostat, Model: PRO 2000, 5-2 Day Programmability, 2 H / 1 C (Heat Pump), Manual, Wall Mount (Horizontal), Wired / Lead Wires, 20-30 VAC, Dual Powered, LCD (Backlit), 40°F - 90°F (Heat), 50°F - 99°F (Cool), Screw Terminals, R, C, Y, AUX/E, G, O, B Terminal Designation, 32-120 °F, ± 1 °F, Thermistor, 5-90% RH (Non-Condensing), White, 3-7/16" H x 4-5/8" W x 1-3/16" D Dimensions, Plastic, AA Alkaline Battery, AAA Battery, 0.02-1.0 A (20-30 VAC), 2-6 CPH (Heating), 2-6 CPH (Cooling), 50 Hz, 60 Hz, System (Heat/Off/Cool/Em.heat), Fan (Auto/On)
- Designed for up to 2 Heat/1 Cool heat pump systems.
- Features 5-2 day programmability for separate weekday and weekend schedules.
- Easy-to-read backlit digital display shows current and set temperatures clearly.
- Dual powered options offer installation flexibility with battery or hardwire operation.
- Maintains consistent comfort with precise temperature control within ±1°F (±0.5°C).
- Adaptive Intelligent Recoveryâ„¢ ensures desired temperature is reached by the programmed time.
- Includes a 2-year manufacturer warranty.
