Resideo T1 Pro TH1110D2009-381 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
Resideo T1 Pro TH1110D2009-381 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
| Amperage Rating | : | 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Terminals (R, RC, C, W, O/B, Y, G) via UWP Mounting System |
| Contact Rating | : | 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 mVDC) |
| Cool Current | : | 0.02-1.0 A (20-30 VAC) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4.0625" H x 4.0625" W x 1.156" D |
| Display Type | : | LCD (Backlit) |
| Fan Current | : | 0.02-0.5 A (20-30 VAC) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (20-30 VAC), 0.1 A (750 mV DC) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | TH1110D2009-381 |
| Mounting Type | : | Wall Mount (UWP Mounting System) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Sensing Element | : | Thermistor |
| Stages | : | 1 H / 1 C |
| Suitable For Use With | : | 1H/1C Conventional Systems (Gas, Oil, Electric Warm Air; Hot Water Coil; Gas, Oil, Electric Hydronic; Steam/Gravity Systems @ 24 VAC); 1H/1C Heat Pump Systems (Without Auxiliary Heat) |
| Switch Position | : | Heat/Off/Cool (System), Auto/On (Fan) |
| Switch Type | : | Relay |
| Temperature Rating | : | 32-102 °F |
| Temperature Settings | : | 32-90 °F (Heating), 50-99 °F (Cooling) |
| Voltage Rating | : | 20-30 VAC, 750 mVDC (W Heating) |
The soft key controls (with a 2.37 sq. in. display) of the T1 Pro Thermostat have an easy-to-read LED back light. It's simple to install, easy to read and looks elegant. All these make it an ideal choice for any homeowner concerned with comfort, quality and aesthetic appeal.
Resideo Non-Programmable Thermostat, Model: T1 Pro, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings, Wall Mount (UWP Mounting System), ± 1 °F Differential Temperature, AA Alkaline Battery, Relay, Heat/Off/Cool (System), Auto/On (Fan), Thermistor, 4.0625" H x 4.0625" W x 1.156" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 VA (Backlight On), 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B), 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 Mvdc) Contact Rating, 50 Hz, 60 Hz

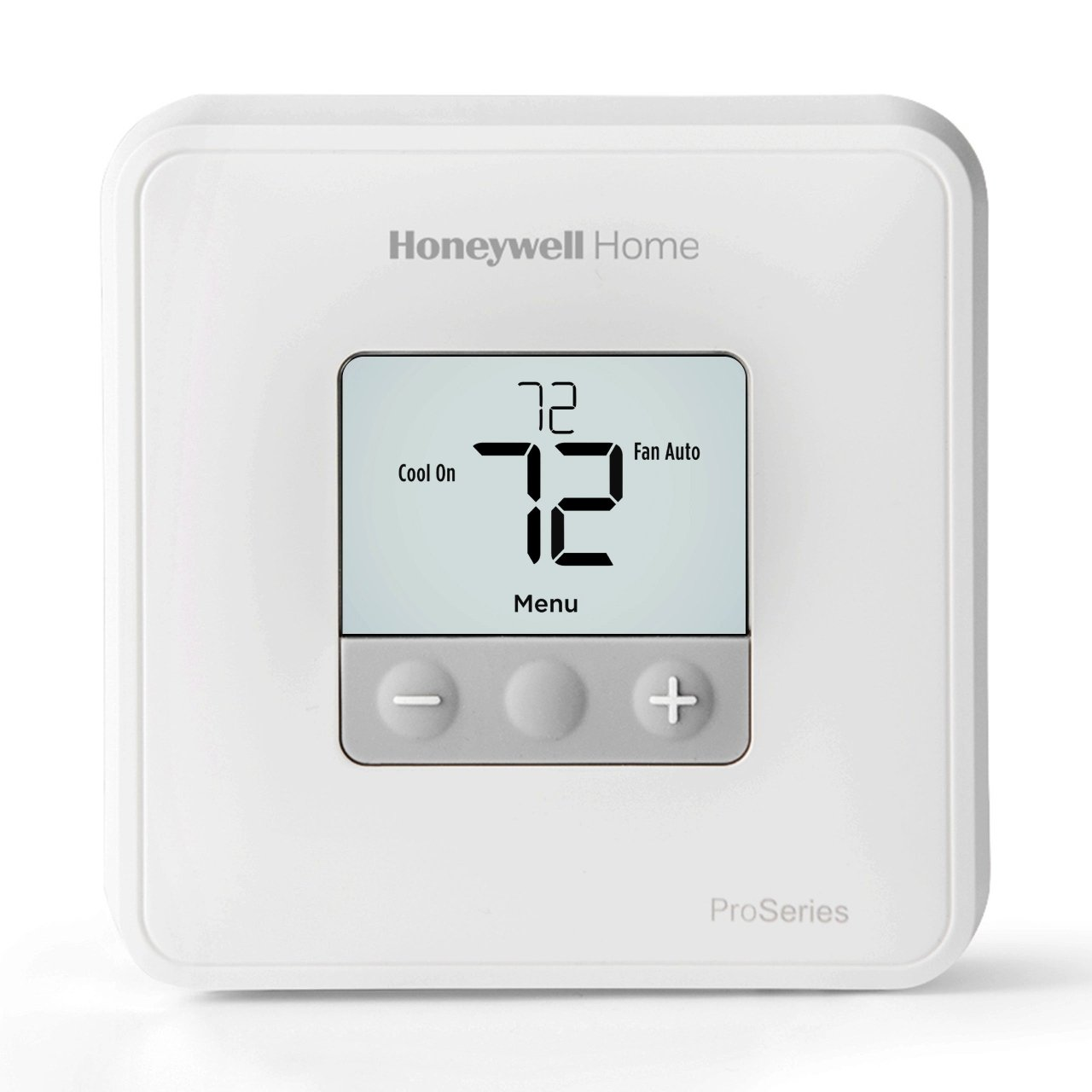

- Features simple push-button controls and an easy-to-read backlit LCD display (2.37 sq. in.).
- Installs easily using the included UWP mounting system, J-box adapter, and cover plate.
- Offers flexible dual power options: battery (2 AA included) or hardwired (C-wire).
- Compatible with 1H/1C conventional systems (gas, oil, electric, hot water coil, hydronic, steam/gravity).
- Suitable for 1H/1C heat pump systems without auxiliary heat.
- Provides manual changeover for Heat/Off/Cool system control and Auto/On fan settings.
- Backed by a 5-year warranty.
