Resideo T1 Pro TH1110D2009-1035 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
Resideo T1 Pro TH1110D2009-1035 Non-Programmable Thermostat, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings
| Accuracy | : | ± 1 °F |
| Amperage Rating | : | 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B) |
| Battery Type | : | AA Alkaline |
| Changeover | : | Manual |
| Color | : | White |
| Connection Type | : | Terminals (R, RC, C, W, O/B, Y, G) via UWP Mounting System |
| Contact Rating | : | 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 mV DC) |
| Cool Current | : | 0.02-1.0 A (20-30 VAC) |
| Differential Temperature | : | ± 1 °F |
| Dimensions | : | 4.0625" H x 4.0625" W x 1.156" D |
| Display Type | : | LCD (Backlit) |
| Fan Current | : | 0.02-0.5 A (20-30 VAC) |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Heat Current | : | 0.02-1.0 A (20-30 VAC), 0.1 A (750 mV DC) |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Model | : | TH1110D2009-1035 |
| Mounting Type | : | Wall Mount (UWP Mounting System) |
| Power Rating | : | 1.0 VA (Backlight On) |
| Power Source | : | Dual Powered |
| Sensing Element | : | Thermistor |
| Stages | : | 1 H / 1 C |
| Suitable For Use With | : | 24 VAC Systems; Gas, Oil, Electric Warm Air; Hot Water Coil; Gas, Oil, Electric Hydronic; Steam / Gravity Systems; Single Stage Heat Pumps (Without Auxiliary Heat) |
| Switch Position | : | Heat/Off/Cool (System), Auto/On (Fan) |
| Switch Type | : | Relay |
| Temperature Rating | : | 32-102 °F |
| Temperature Settings | : | 32-90 °F (Heating), 50-99 °F (Cooling) |
| Voltage Rating | : | 20-30 VAC, 750 mVDC (W Heating) |
The Resideo T1 Pro is a straightforward, non-programmable thermostat designed for ease of use and installation. It features intuitive soft key controls and a clear, backlit 2.37 sq. in. LCD display for easy reading in various lighting conditions. The included UWP mounting system simplifies the installation process for contractors.This thermostat provides basic temperature control for single-stage heating and cooling conventional systems (1H/1C) or single-stage heat pumps without auxiliary heat (1H/1C). It operates on 20-30 VAC power and can be powered via AA batteries or hardwired using a C-wire. Suitable applications include gas, oil, electric warm air, hot water coil, electric hydronic, or steam/gravity systems.
Resideo Non-Programmable Thermostat, Model: T1 Pro, 1 H / 1 C, Terminals (R, RC, C, W, O/B, Y, G) Via UWP Mounting System, 20-30 VAC, 750 Mvdc (W Heating), Dual Powered, Manual Changeover, LCD (Backlit), 32-90 °F (Heating), 50-99 °F (Cooling) Temperature Settings, Wall Mount (UWP Mounting System), ± 1 °F Differential Temperature, AA Alkaline Battery, Relay, Heat/Off/Cool (System), Auto/On (Fan), Thermistor, 4.0625" H x 4.0625" W x 1.156" D Dimensions, White, 5-90% RH (Non-Condensing), 1.0 VA (Backlight On), 0.02-1.0 A (Heating W/Cooling Y), 0.02-0.5 A (Fan G/Changeover O/B), 1.0 A (Heat/Cool, 20-30 VAC), 0.5 A (Fan/Changeover, 20-30 VAC), 0.1 A (Heat, 750 mV DC) Contact Rating, 50 Hz, 60 Hz

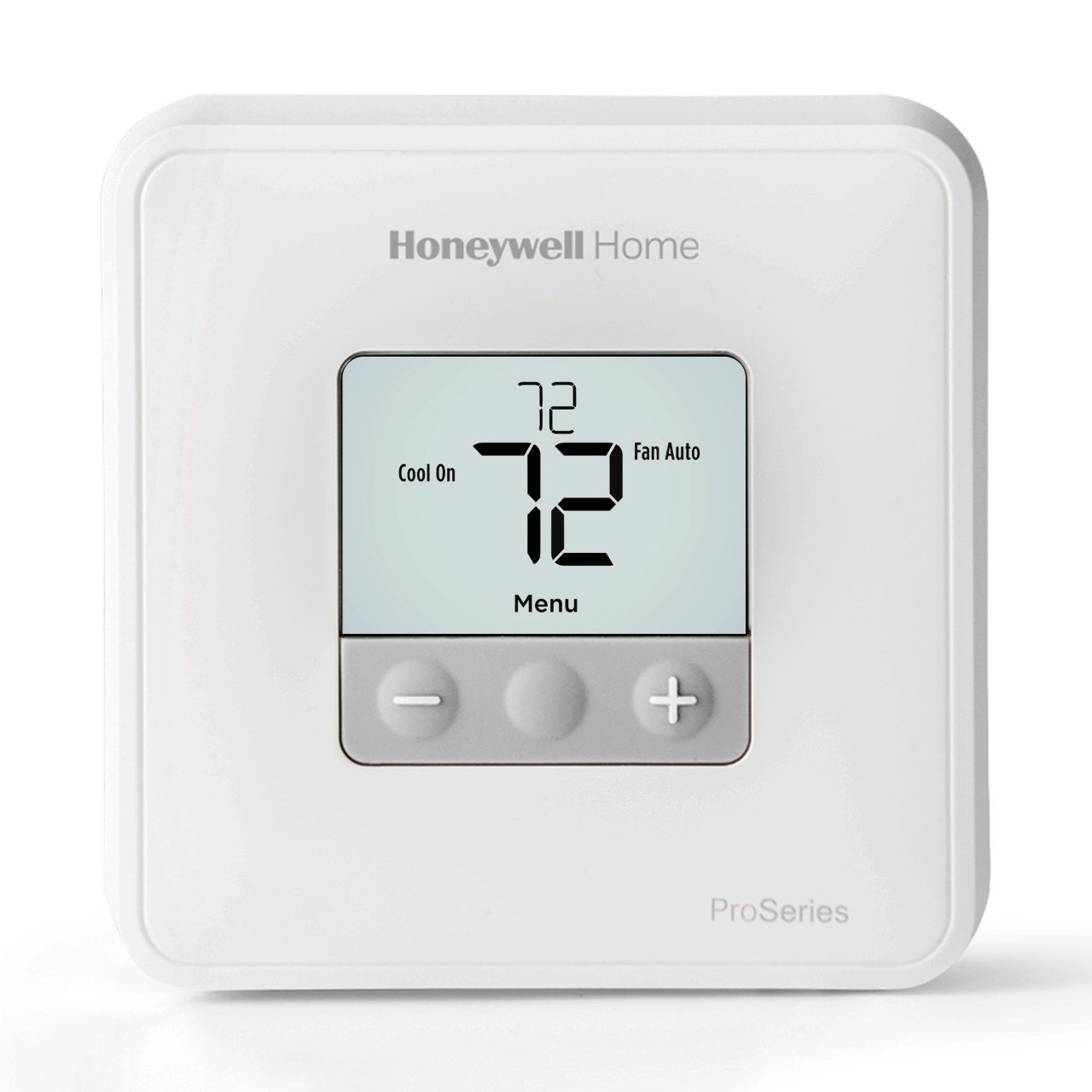

- Clear, backlit 2.37 sq. in. LCD display with soft key controls.
- Simple push-button operation for basic temperature adjustments.
- Controls 1H/1C conventional systems or 1H/1C heat pump systems without auxiliary heat.
- Dual powered via AA batteries or hardwired using a C-wire.

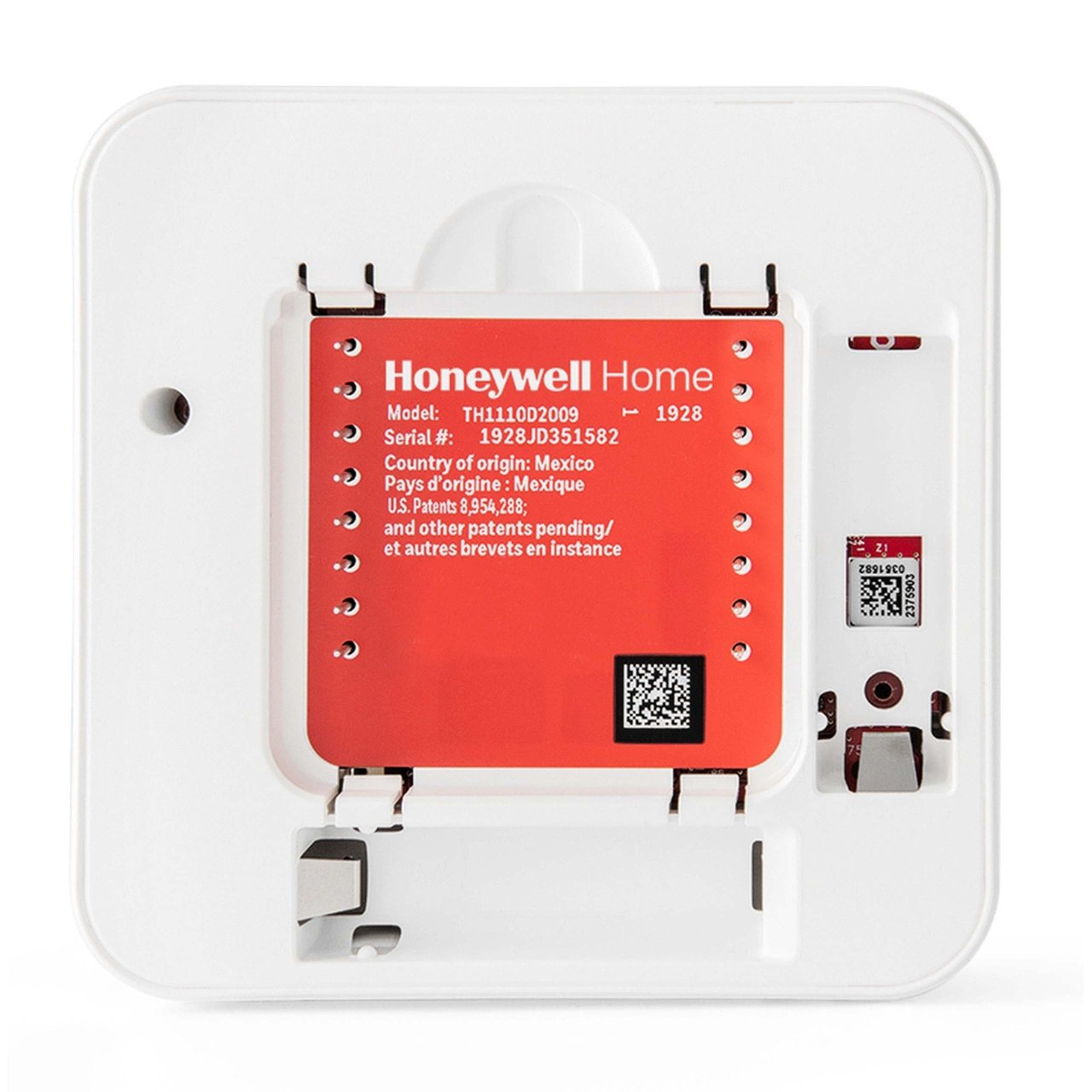

- Includes Resideo's UWP mounting system for easy installation.
- Manual system changeover (Heat/Off/Cool) and fan control (Auto/On).
- Backed by a 5-year manufacturer warranty.
