Resideo TrueZONE HZ432 Zoning Control Panel, 4 Zones, 3 H / 2 C, 24 VAC, Auto Changeover, Push Terminal, 8.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size
Resideo TrueZONE HZ432 Zoning Control Panel, 4 Zones, 3 H / 2 C, 24 VAC, Auto Changeover, Push Terminal, 8.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size
| Changeover | : | Auto |
| Color | : | Gray |
| Connection Type | : | Push Terminal |
| Control Output | : | 24 VAC |
| Dimensions | : | 13.42" H x 8" W x 1.86" D |
| Electrical Connection | : | Push Terminals |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Number of Zones | : | 4 |
| Outputs | : | 4 Zones |
| Series | : | TrueZONE |
| Stages | : | 3 H / 2 C |
| Temperature Rating | : | -40-165 °F |
| VA Rating | : | 8.5 VA (Zone Panel) |
| Voltage Rating | : | 24 VAC |
| Wire Size | : | 18 AWG, 20 AWG |

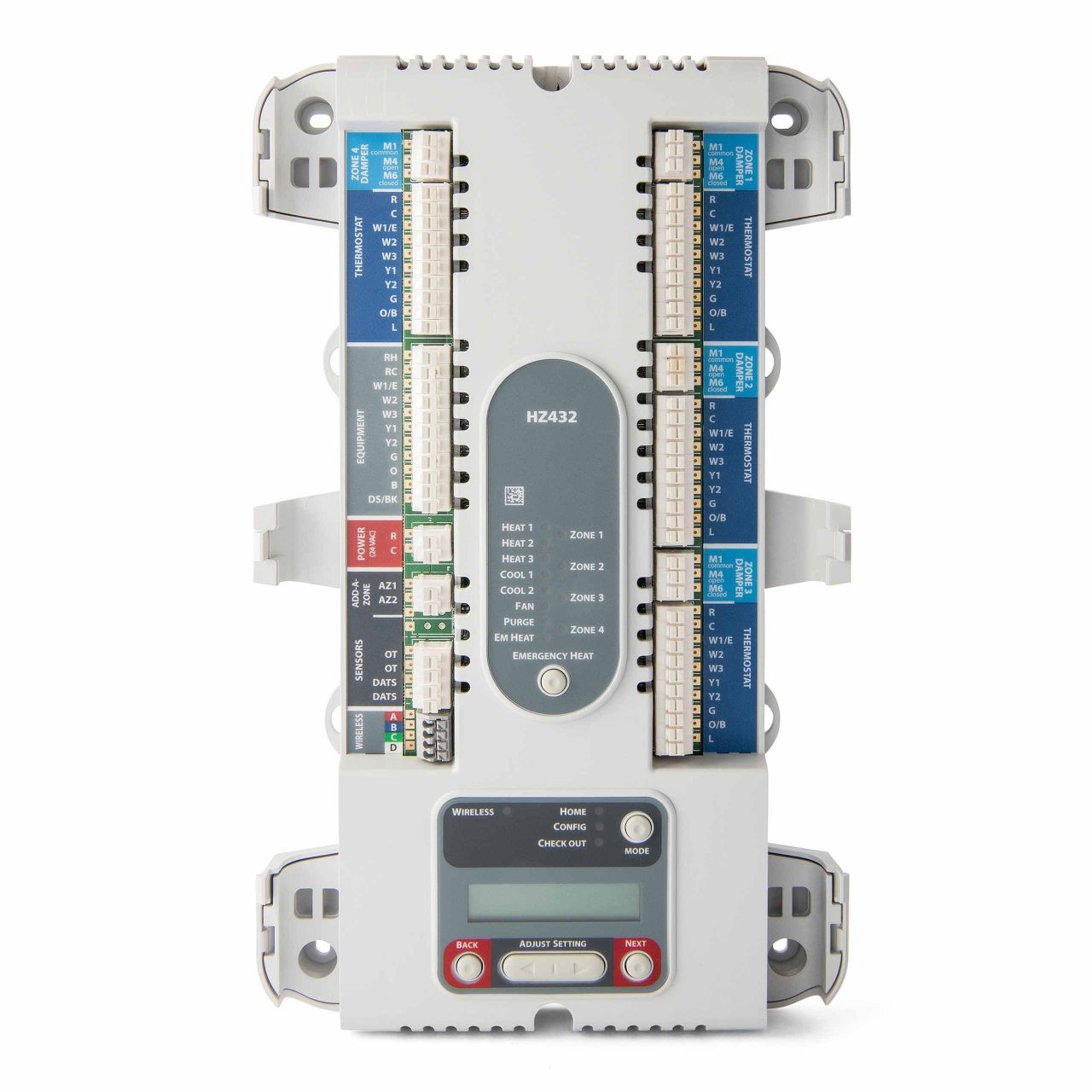

The TrueZONE® HZ432 is a 4 zone panel that can be used to control conventional, heat pump, or dual fuel applications up to 3H/2C. It features robust push terminals, common-sense LEDs, variable-speed fan control, and has a small footprint for mounting flexibility.This TrueZONE® HZ432 Panel is for use in conventional, heat pump or dual fuel applications. With Intuitive Installer Setup, the easy-to-follow, digital display uses real language to guide users through four easy steps. It also comes with a Standard Checkout Procedure.
Resideo Zoning Control Panel, Model: TrueZONE, 4 Zones, 3 H / 2 C, 24 VAC, Auto Changeover, Push Terminal, 8.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size, -40-165 °F Temperature Rating, 5-90% RH (Non-Condensing), 13.42" H x 8" W x 1.86" D Dimensions, Gray, 50 Hz, 60 Hz
- Controls up to 4 zones for conventional, heat pump, or dual-fuel systems (3H/2C).
- Expandable up to 32 zones using wired thermostats with the optional TotalZone Add-A-Zone panel (TAZ-4H).
- Intuitive installer setup features an easy-to-follow digital display with plain language prompts.
- Includes robust push terminals for secure wiring connections (up to two 18 or 20 AWG wires per terminal).
- Supports variable-speed fan control, discharge air temperature staging, and advanced dual-fuel operation.
- RedLINKâ„¢ enabled for wireless zone control when used with the THM4000R1000 Wireless Adapter.
- Covered by a 5-year manufacturer warranty.
