Resideo TrueZONE HZ322 Zoning Control Panel, 3 Zones, 2 H / 2 C, 18-30 VAC, Auto Changeover, Push Terminal, 3 Zones, Up To 2H/2C Conventional, Up To 2H/1C Heat Pump, 24 VAC
Resideo TrueZONE HZ322 Zoning Control Panel, 3 Zones, 2 H / 2 C, 18-30 VAC, Auto Changeover, Push Terminal, 3 Zones, Up To 2H/2C Conventional, Up To 2H/1C Heat Pump, 24 VAC
| Changeover | : | Auto |
| Color | : | Gray |
| Connection Type | : | Push Terminal |
| Control Output | : | 24 VAC |
| Dimensions | : | 11.5" H x 8" W x 1.86" D |
| Electrical Connection | : | Push Terminals |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Number of Zones | : | 3 |
| Outputs | : | 3 Zones, Up to 2H/2C Conventional, Up to 2H/1C Heat Pump |
| Series | : | TrueZONE |
| Shape | : | Rectangular |
| Stages | : | 2 H / 2 C |
| Temperature Rating | : | -40-165 °F (Operating) |
| Terminal Type | : | Push Terminal |
| VA Rating | : | 7.5 VA (Zone Panel) |
| Voltage Rating | : | 18-30 VAC |
| Wire Size | : | 18 AWG, 20 AWG |

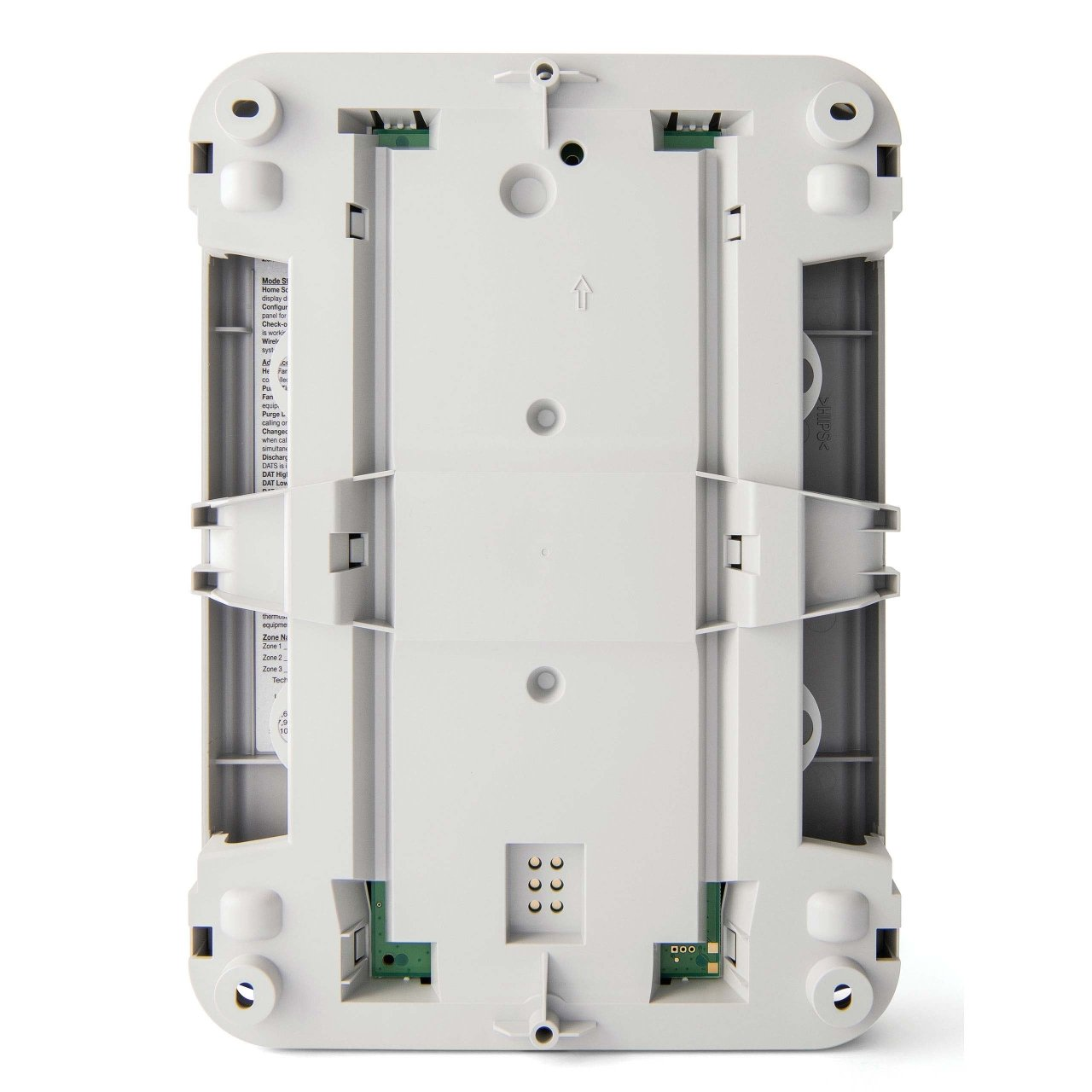

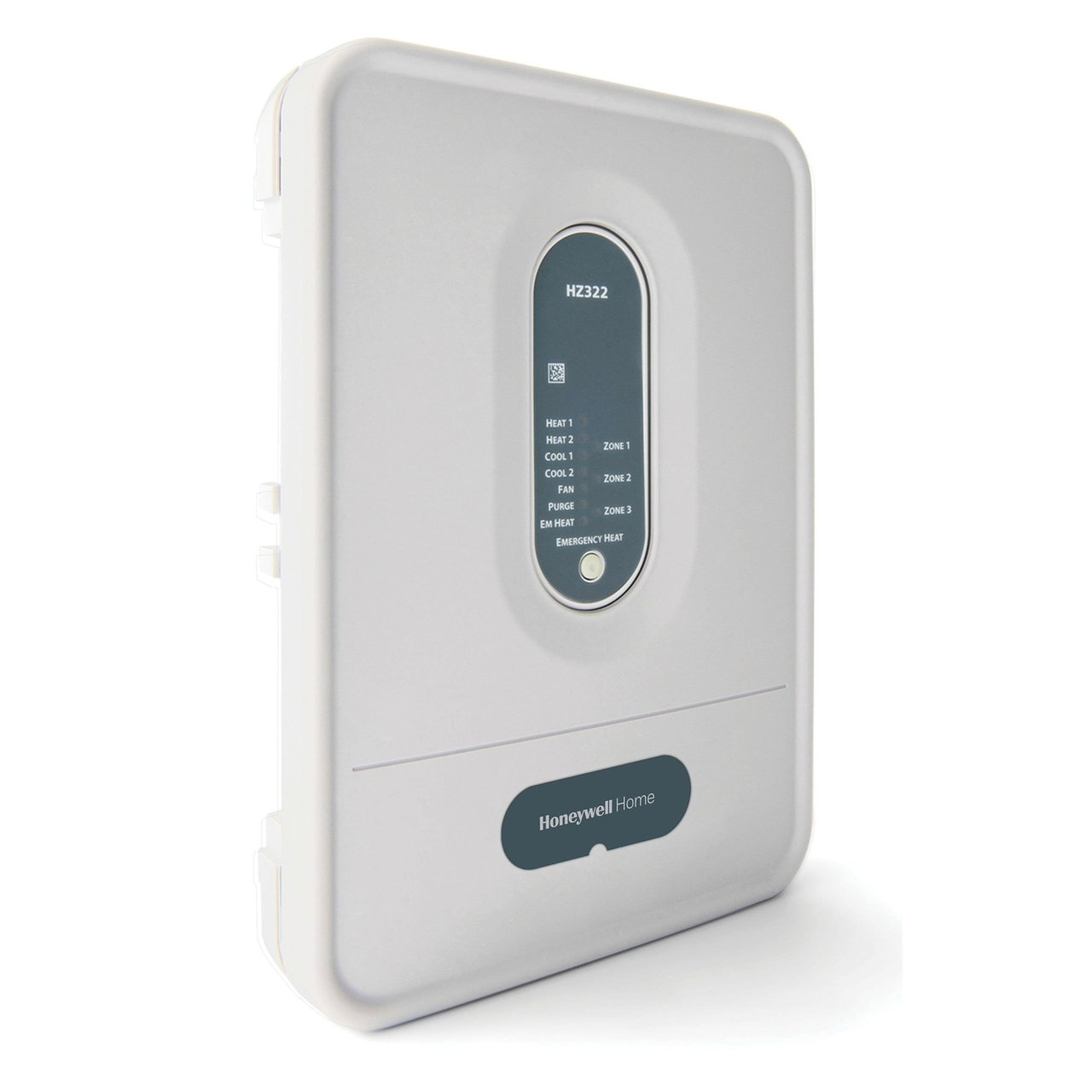

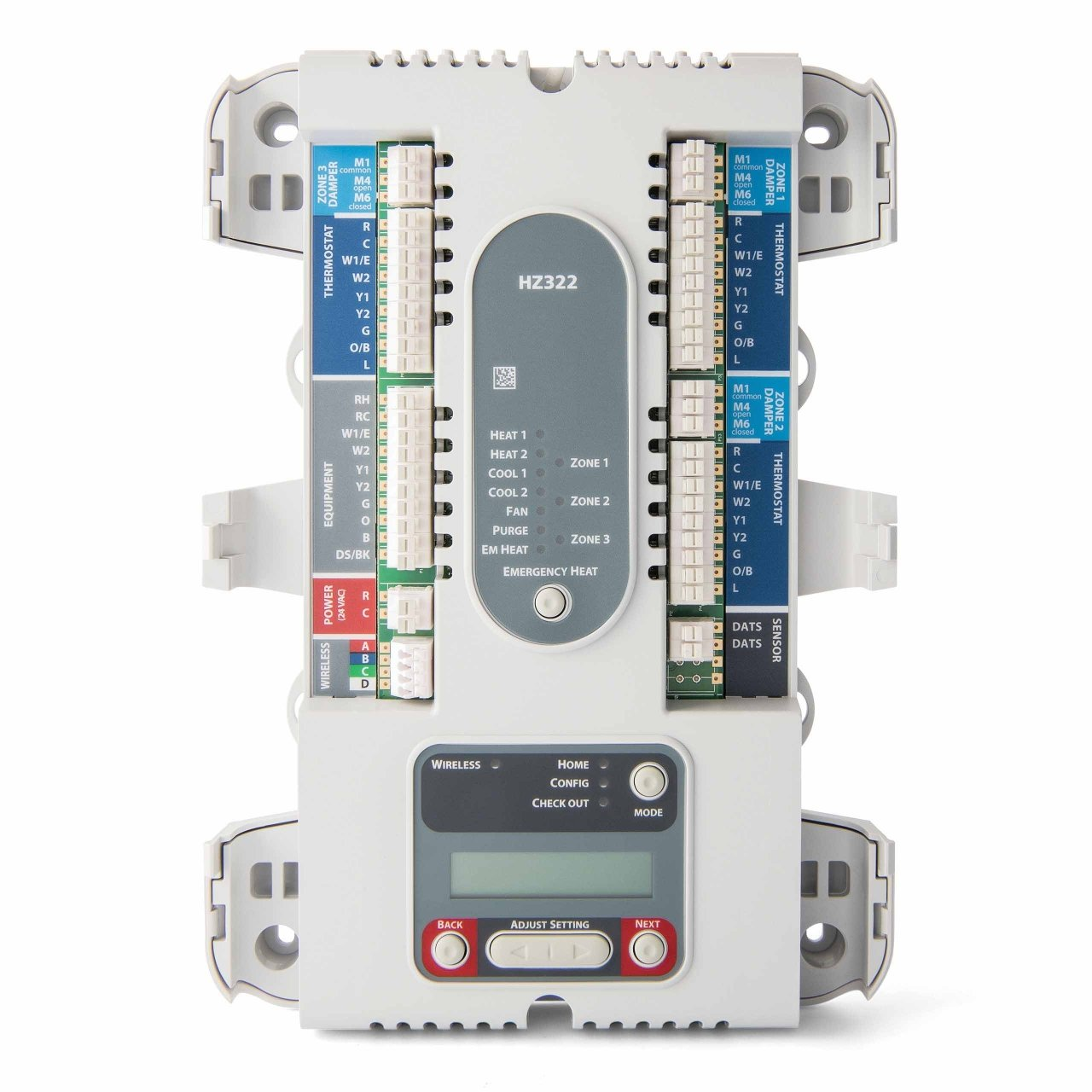

The HZ322 TrueZONE panel controls conventional gas, oil, or electric forced-air systems up to 2 stages heat and 2 stages cool. It also controls heat pump systems with a single-stage compressor and auxiliary heat (2H/1C). This panel manages 2 or 3 forced-air zones and is compatible with standard wired thermostats or wireless thermostats when used with an optional wireless adapter. It features an intuitive setup process guided by a digital display, robust push terminals for simplified wiring, and common-sense LEDs for status indication.
Resideo Zoning Control Panel, Model: TrueZONE, 3 Zones, 2 H / 2 C, 18-30 VAC, Auto Changeover, Push Terminal, 3 Zones, Up To 2H/2C Conventional, Up To 2H/1C Heat Pump, 24 VAC, 7.5 VA (Zone Panel), 18 AWG, 20 AWG Wire Size, -40-165 °F (Operating) Temperature Rating, 5-90% RH (Non-Condensing), 11.5" H x 8" W x 1.86" D Dimensions, Rectangular, Gray, 50 Hz, 60 Hz
- Controls up to 3 zones for conventional (up to 2H/2C) or heat pump (up to 2H/1C) systems.
- Features an intuitive setup with a digital display and robust push terminals for faster installation.
- Includes variable-speed fan control and discharge air temperature staging for optimized comfort and equipment protection.
- Common-sense LEDs provide clear status indication for quick diagnostics.
- Compatible with RedLINKâ„¢ wireless technology for flexible thermostat integration (requires THM4000R1000 adapter).
- Supports automatic changeover between heating and cooling.
- Backed by a 5-year warranty.
