Resideo TrueZONE HZ311 Zoning Control Panel, 3 Zones, 1 H / 1 C, 18-30 VAC, Auto Changeover, Push Terminal, 24 VAC, 6.25 VA (Zone Panel)
Resideo TrueZONE HZ311 Zoning Control Panel, 3 Zones, 1 H / 1 C, 18-30 VAC, Auto Changeover, Push Terminal, 24 VAC, 6.25 VA (Zone Panel)
| Changeover | : | Auto |
| Color | : | Gray |
| Connection Type | : | Push Terminal |
| Control Output | : | 24 VAC |
| Dimensions | : | 8" H x 8" W x 1.86" D |
| Domestic/Import | : | Import |
| Electrical Connection | : | Push Terminals |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Humidity Rating | : | 5-90% RH (Non-Condensing) |
| Number of Zones | : | 3 |
| Outputs | : | 3 Zones |
| Series | : | TrueZONE |
| Shape | : | Square |
| Stages | : | 1 H / 1 C |
| Temperature Rating | : | -40-165 °F |
| Terminal Type | : | Push Terminal |
| VA Rating | : | 6.25 VA (Zone Panel) |
| Voltage Rating | : | 18-30 VAC |
| Wire Size | : | 18 AWG (Solid) |

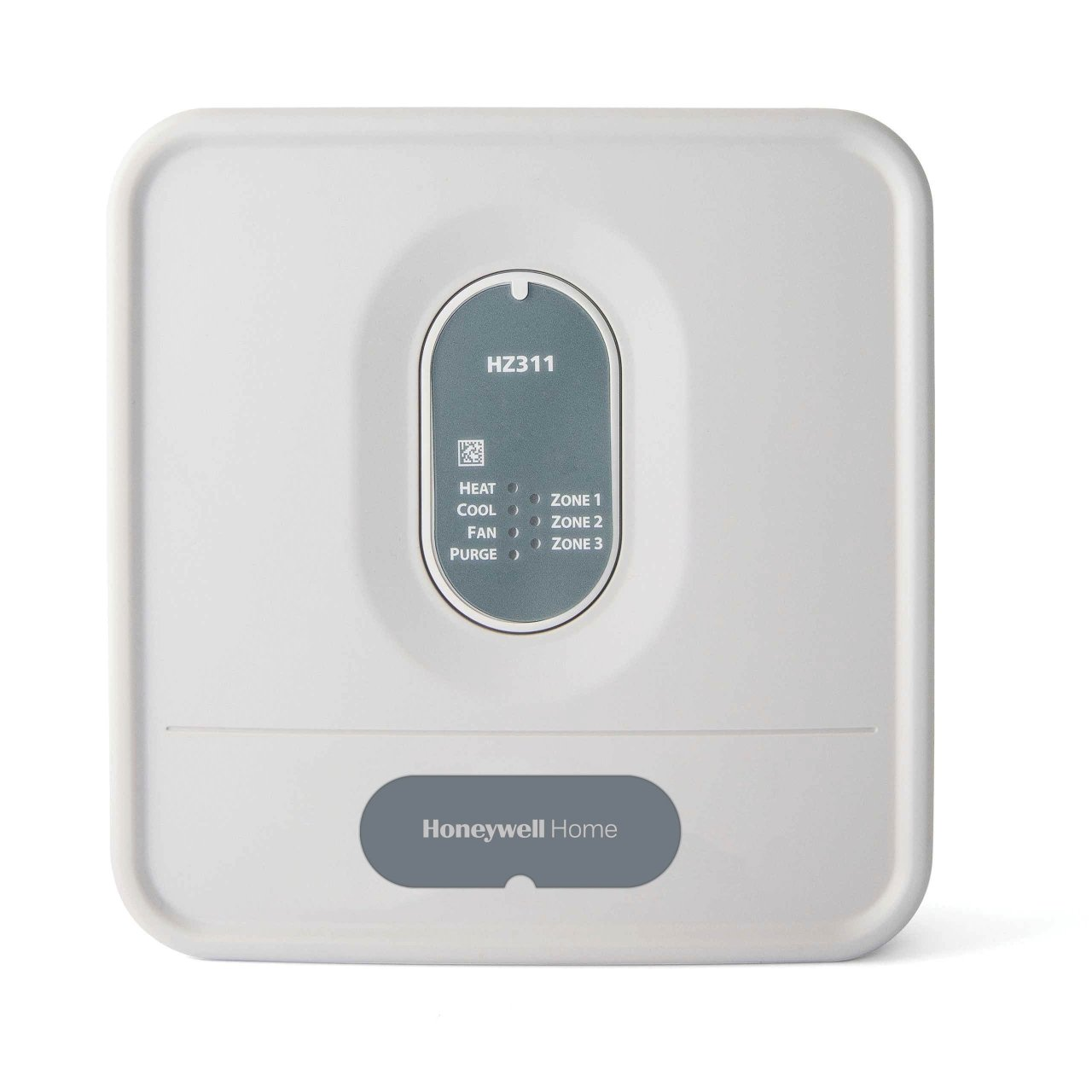

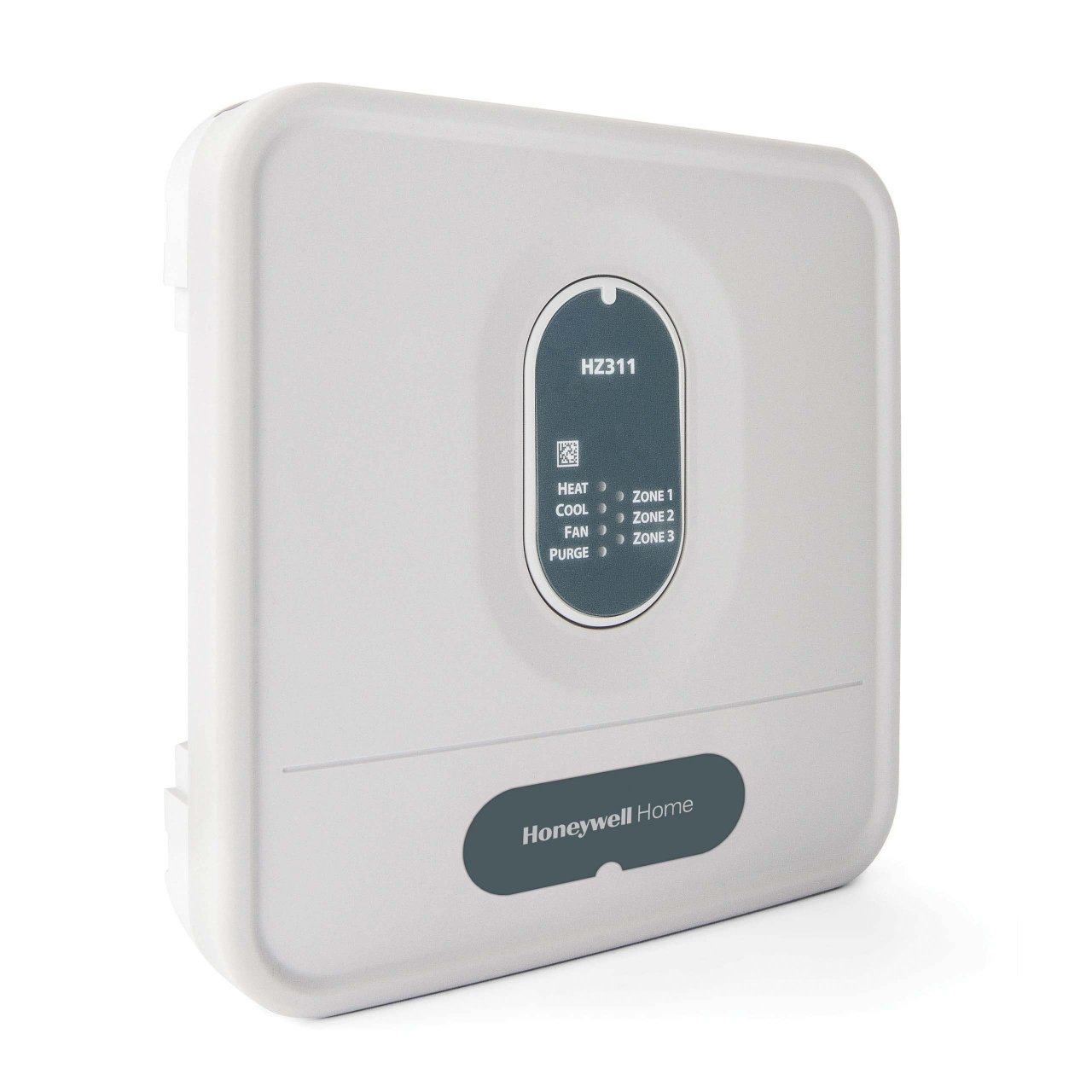

The TrueZONE® HZ311 Panel controls conventional, single-stage HVAC systems for up to three zones (1H/1C) at 24 VAC. It simplifies installation and troubleshooting with robust push terminals for quick wiring and intuitive LEDs that display system status.Designed for a clean, professional installation, this panel features a smaller footprint for flexible mounting options, including on return ducts, studs, or walls. Additional features include variable-speed fan control, auto changeover, and a resettable fuse for added protection. It is compatible with the C7735A Discharge Air Temperature Sensor.
Resideo Zoning Control Panel, Model: TrueZONE, 3 Zones, 1 H / 1 C, 18-30 VAC, Auto Changeover, Push Terminal, 24 VAC, 6.25 VA (Zone Panel), 18 AWG (Solid) Wire Size, -40-165 °F Temperature Rating, 5-90% RH (Non-Condensing), 8" H x 8" W x 1.86" D Dimensions, Square, Gray, 50 Hz, 60 Hz, Import
- Controls up to 3 zones for conventional single-stage (1H/1C) systems.
- Robust push terminals allow for faster wiring without tools.
- Common-sense LEDs clearly indicate zone calls and system status.
- Variable-speed fan control adjusts blower speed when only one zone is calling.
- Features automatic changeover between heating and cooling.
- Includes a resettable fuse for system protection.

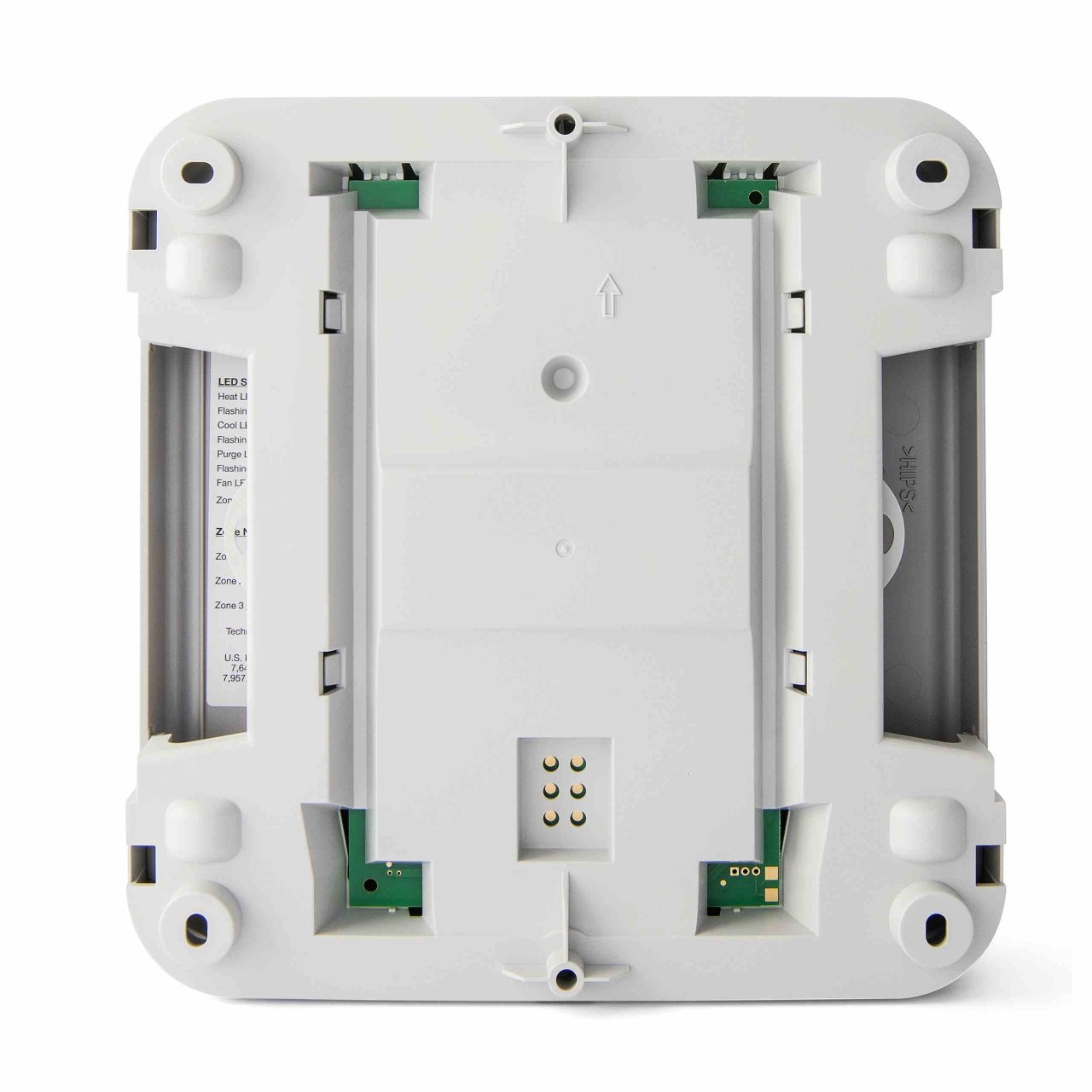

- Smaller footprint and multiple mounting holes allow for flexible installation locations.

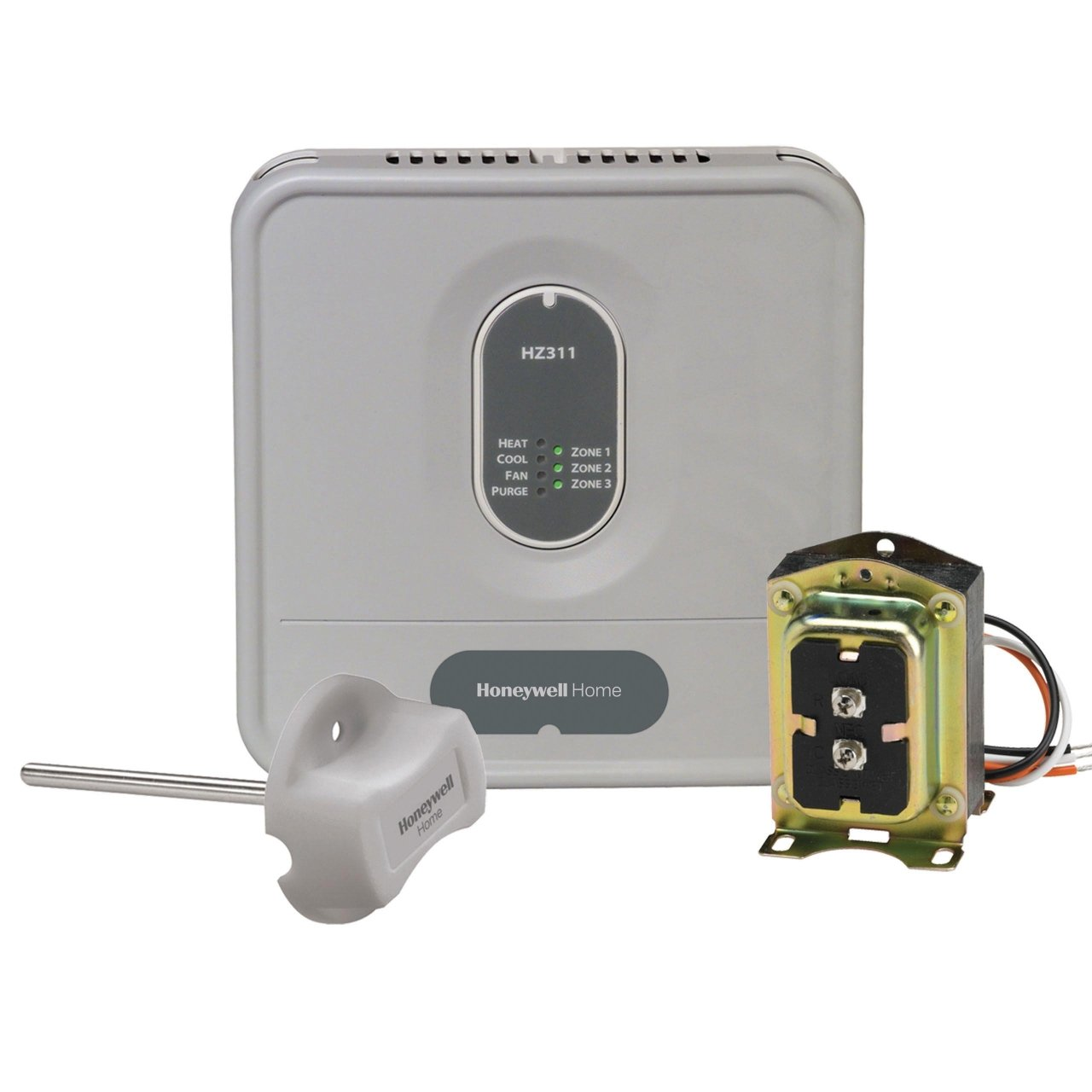

- Compatible with Resideo C7735A Discharge Air Temperature Sensor (required, sold separately or in HZ311K kit).
- Works with virtually any brand of conventional HVAC equipment.
- Covered by a 5-year warranty.
