| Amperage Rating | : | 200 mA |
| Display Type | : | LED |
| Frequency Rating | : | 60 Hz |
| Temperature Rating | : | 40 to 150 deg F |
| Voltage Rating | : | 24 V |

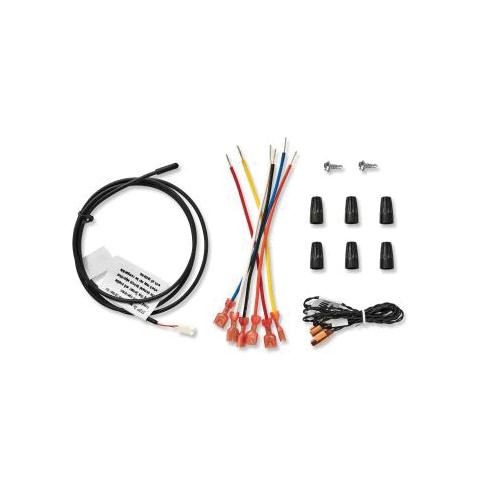

Universal defrost control for single-stage on/off heat pumps. It provides control of the outdoor equipment; compressor contactor, reversing valve and outdoor fan in response to thermostat requests and air and coil temperatures. It also controls the indoor auxiliary heat source that is used during defrost operations and often as a second stage of heat. A defrost cycle is triggered based on outdoor air and outdoor coil temperatures that are measured using included temperature sensors.

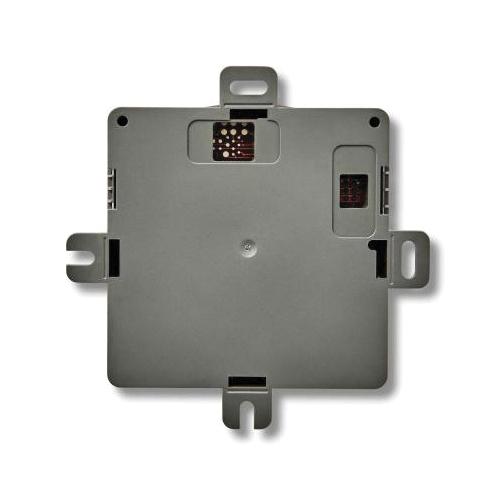

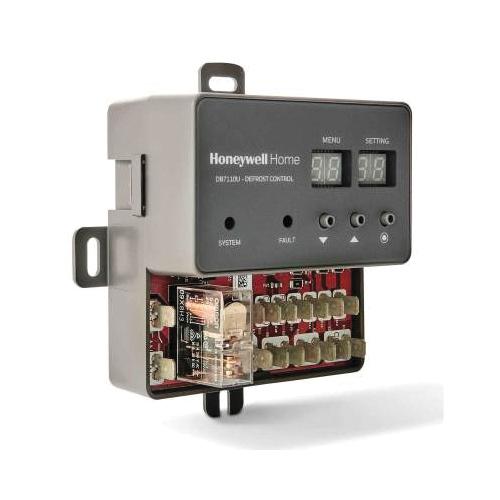

resideo Universal Defrost Control, 24 V, 200 mA, 60 Hz Frequency, 40 to 150 deg F, LED Display
