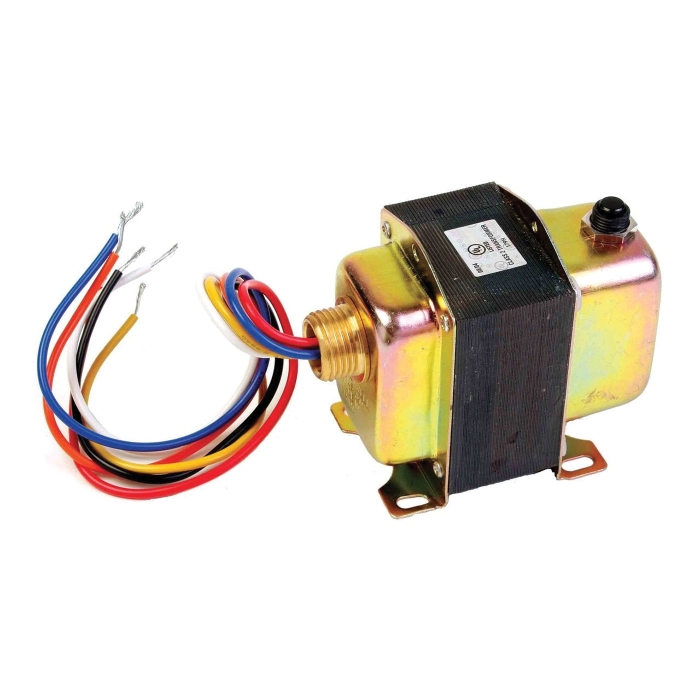

resideo AT175F1031/U General-Purpose Transformer, 208/277/480 V Primary, 27 V Secondary, VA Rating: 75 VA
resideo AT175F1031/U General-Purpose Transformer, 208/277/480 V Primary, 27 V Secondary, VA Rating: 75 VA
| Depth | : | 3-15/16 in |
| Electrical Connection Type | : | Male Quick Connect, Lead Wire |
| Frequency | : | 60 Hz |
| Function Type | : | Transformer |
| Height | : | 3-3/16 in |
| Installation / Mounting Type | : | Clamp, Foot, Panel, Plate |
| Operating Temperature Rating | : | -20 to 77 deg F |
| UL Listed | : | Yes |
| VA Rating | : | 75 VA |
| Voltage Rating | : | 208/277/480 V Primary, 27 V Secondary |
| Width | : | 2-3/16 in |
These general purpose transformers provide power to 24 Vac circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings. AT175 is rated at 75 VA. All models meet NEC Class 2 not wet, and conform to UL Standard 1585. Mounting options include clamp mounting on outlet box knockout, plate mounting, foot mounting, panel mounting, conduit/panel, and a combination.
resideo General-Purpose Transformer, 208/277/480 V Primary, 27 V Secondary, VA Rating: 75 VA, 60 Hz Frequency, Clamp, Foot, Panel, Plate Installation / Mounting, Male Quick Connect, Lead Wire Electrical Connection, -20 to 77 deg F Operating Temperature, UL Listed: Yes, 3-3/16 in Height, 2-3/16 in Width, 3-15/16 in Depth, Transformer Function Type
- Color-coded lead wires for primary connections and screw terminals for secondary connections
- Includes fixed 1/4 inch (6mm) male quick-connects (AT175A models only) or color-coded lead wires for primary and secondary connections
- Identified Class 2 not wet, Class 3 wett
