S&P USA TC7D Series Digital Time Clock, 24 VAC, Wall Mount, Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth), 3.5 VA, 10 A (Switch Rating, 131°F), 32°F - 140°F, 50 Hz, 60 Hz
S&P USA TC7D Series Digital Time Clock, 24 VAC, Wall Mount, Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth), 3.5 VA, 10 A (Switch Rating, 131°F), 32°F - 140°F, 50 Hz, 60 Hz

S&P USA TC7D Series Digital Time Clock, 24 VAC, Wall Mount, Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth), 3.5 VA, 10 A (Switch Rating, 131°F), 32°F - 140°F, 50 Hz, 60 Hz

S&P USA TC7D Series Digital Time Clock, 24 VAC, Wall Mount, Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth), 3.5 VA, 10 A (Switch Rating, 131°F), 32°F - 140°F, 50 Hz, 60 Hz

Manufacturer: Renewaire
Brand: Renewaire®
Part #: 389978
MPN: TC7D-W
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      10 A (Switch Rating, 131°F)
Color      :      White (Wall Plate)
Frequency Rating      :      50 Hz, 60 Hz
Model      :      TC7D-W
Mounting Type      :      Wall Mount
Power Rating      :      3.5 VA
Series      :      TC7D Series
Size      :      Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth)
Suitable For Use With      :      RenewAire ERV Models: EV90, EV90P, EV130, EV200, EV240, EV300, SL70, EV450, HE1XIN, HE1.5IN, HE1X, HE1.5, HE1XRT, HE1.5RT, HE2X-LE10X; S&P ERV Models: TRC500, TRC800; RenewAire Electric Heaters: RH-W
Temperature Rating      :      32°F - 140°F
Voltage Rating      :      24 VAC

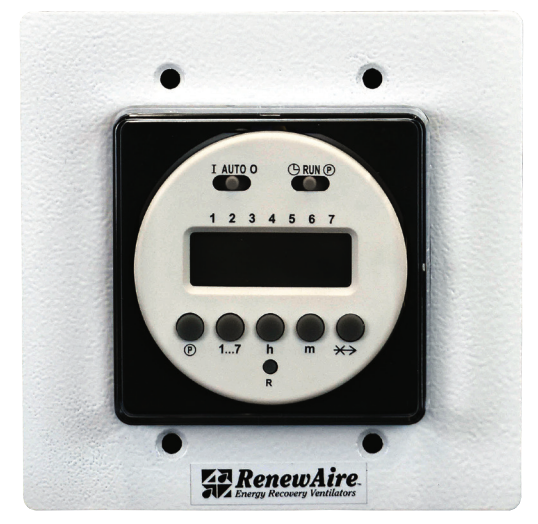

The Digital Time Clock - Wall Mount is designed for programming on/off cycles for HVAC equipment. It features a digital display and is intended for wall mounting in a standard 4" x 4" electrical box. This timer is compatible with RenewAire Total Recovery Climate (TRC) ERVs and RH-W heater thermostats, and can be used to optimize equipment operation schedules and reduce energy consumption.

S&P USA Digital Time Clock, Model: TC7D Series, 24 VAC, Wall Mount, Fits 4" x 4" Electrical Box (Min. 1-1/2" Depth), 3.5 VA, 10 A (Switch Rating, 131°F), 32°F - 140°F, 50 Hz, 60 Hz, White (Wall Plate)

  • Offers up to 16 on/off cycles per day or 56 per week for flexible scheduling.
  • Features a manual override switch for immediate on/off/auto control.
  • Includes a program reset button to clear all settings quickly.
  • Provides battery back-up to maintain settings during power outages.
  • Compatible with RenewAire TRC Series ERVs for efficient ventilation control.
  • Suitable for use with RH-W heater thermostats to lower set-point temperatures at scheduled times.
  • UL Listed for safety and reliability.
  • Installation and Operation Manual https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/digital-time-clock-manual-tc7d-pdf-4067-6693.pdf
  • Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/sl-ev-premium-series-single-multi-family-erv-catalog-4067-6712.pdf
