RectorSeal AquaGuard AG-3180E Micro Pan Sensor, 24 VAC, ≤60 Seconds Time Delay, Primary Drain Pan Mount (Using Adjustable Mounting Clips Or Double Sided Tape), Wire Leads (6 Ft) End Type, Plastic, 5 A @ 24VAC (Relay Red To Purple), 1 A @ 24VAC (Normally Open Contact Red To White), 1-9/10" H x 1-2/5" W x 1" D Dimensions
RectorSeal AquaGuard AG-3180E Micro Pan Sensor, 24 VAC, ≤60 Seconds Time Delay, Primary Drain Pan Mount (Using Adjustable Mounting Clips Or Double Sided Tape), Wire Leads (6 Ft) End Type, Plastic, 5 A @ 24VAC (Relay Red To Purple), 1 A @ 24VAC (Normally Open Contact Red To White), 1-9/10" H x 1-2/5" W x 1" D Dimensions
| Amperage Rating | : | 5 A @ 24VAC (Relay Red to Purple), 1 A @ 24VAC (Normally Open Contact Red to White) |
| Color | : | Clear, Black |
| Dimensions | : | 1-9/10" H x 1-2/5" W x 1" D |
| Domestic/Import | : | Import |
| End Type | : | Wire Leads (6 ft) |
| Frequency Rating | : | 60 Hz |
| Material | : | Plastic |
| Model | : | AG-3180E |
| Mounting Type | : | Primary Drain Pan Mount (using Adjustable mounting clips or Double sided tape) |
| Series | : | AquaGuard |
| Suitable For Use With | : | Commercial Package Units; Metal/Plastic Secondary Drain Pans; Primary Drain Pan |
| Time Delay | : | 60 seconds |
| Voltage Rating | : | 24 VAC |

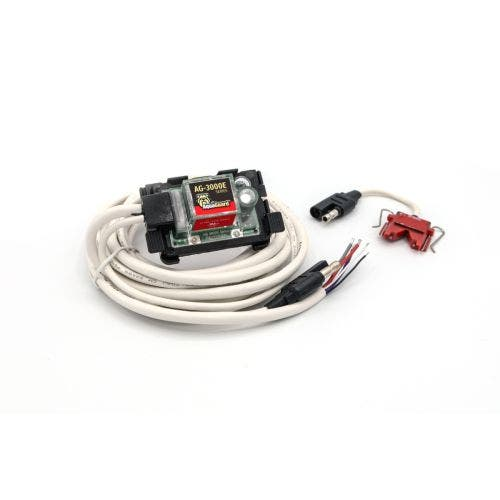

The AquaGuard AG-3180E micro-electronic condensate sensor is mounted directly in the primary drain pan. The bonus secondary sensor features water detection LED and easily installs in the metal or plastic secondary drain pan. Both sensors continuously monitor any condensate overflow in the primary and secondary drain pans and automatically shut off the system and activate an alarm if any overflow is detected.
RectorSeal AG-3180E Micro Pan Sensor, Model: AquaGuard, 24 VAC, ≤60 Seconds Time Delay, Primary Drain Pan Mount (Using Adjustable Mounting Clips Or Double Sided Tape), Wire Leads (6 Ft) End Type, Plastic, 5 A @ 24VAC (Relay Red To Purple), 1 A @ 24VAC (Normally Open Contact Red To White), 1-9/10" H x 1-2/5" W x 1" D Dimensions, 60 Hz, Import, Clear, Black
- Includes a primary micro pan sensor and a bonus secondary sensor with a water detection LED.
- Features an adjustable time delay of up to 60 seconds to prevent nuisance shutdowns.
- Equipped with 6 feet of plenum-rated probe and sensor wire for safe installation.
- Flexible installation options include adjustable mounting clips or double-sided tape.
- Offers configurable normally open or normally closed switch operation (5A @ 24 VAC).
- Includes a normally open 4th wire (1A @ 24 VAC) for optional external alarms or control systems.
- UL 508 approved for electrical safety.
