RectorSeal Big Foot / Fix-It-Foot 87773 Equipment Riser w/ Channel, 282 lbs Load Capacity, 15-1/2" Overall Width, 7" Overall Depth, 4" Overall Height, Recycled Rubber (Pad), Aluminum (Track), No Adjustable Height, Black

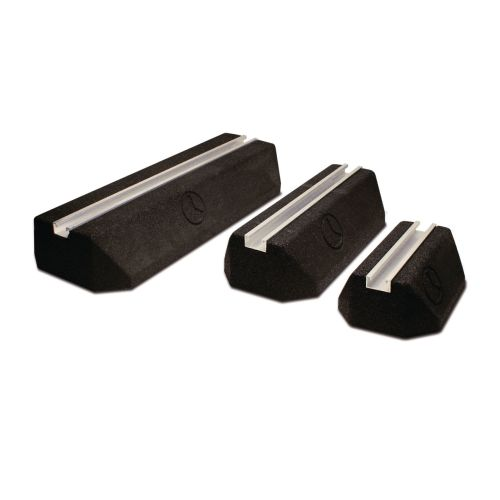

The Big Foot Systems Fix-It-Foot is a 4-inch riser with an integrated channel, measuring 16 inches long and supporting up to 282 lbs. It is ideal for rooftop support of equipment and systems, providing additional vibration isolation due to its height and increased stability from its weight.Made with a weather-resistant recycled crumb rubber pad, this support features a recessed underside for a solid stance on surfaces. The built-in aluminum track allows for the use of standard strut hardware (not included) for securing equipment.

RectorSeal Equipment Riser w/ Channel, Model: Big Foot / Fix-It-Foot, 282 lbs Load Capacity, 15-1/2" Overall Width, 7" Overall Depth, 4" Overall Height, Recycled Rubber (Pad), Aluminum (Track), No Adjustable Height, Black

• Provides stable rooftop or ground support for HVAC equipment and systems like condensers or VRF units.
• Constructed from weather-resistant, recycled crumb rubber for durability in outdoor environments.
• Features a recessed underside to ensure a solid stance on mounting surfaces.
• Includes an integrated aluminum channel compatible with standard strut hardware (hardware not included).
• Offers vibration isolation properties, enhanced by its 4-inch height.
• Supports equipment loads up to 282 lbs.

• Catalog https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/electrical-product-catalog-3105-6984.pdf
• Brochure https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/rectorseal-mounting-solutions-and-accessories-3105-4417.pdf
