RectorSeal Aspen Orange ASPMAXOUNI Condensate Pump Kit, 49' Maximum Feet Of Head, 100-250 V, 0.15 GPM (0' Head), 0.025 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 16 W, ≤104 °F (Water) Operating Temperature
RectorSeal Aspen Orange ASPMAXOUNI Condensate Pump Kit, 49' Maximum Feet Of Head, 100-250 V, 0.15 GPM (0' Head), 0.025 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 16 W, ≤104 °F (Water) Operating Temperature
| Amperage Rating | : | 0.18 A |
| Capacity | : | 157000 Btu/hr |
| Color | : | Orange |
| Cord Size | : | 5 ' |
| Dimensions | : | 4-7/8" L x 2-5/8" H x 1-3/4" W |
| Discharge Size | : | 1/4 " |
| Flow Rate | : | 0.15 GPM (0' Head), 0.025 GPM (49' Head) |
| Housing Material | : | ABS |
| Maximum Feet of Head | : | 49 ' |
| Model | : | ASPMAXOUNI |
| Mounting Type | : | Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir) |
| Operating Temperature | : | 104 °F (Water) |
| Phase | : | 1 |
| Power Rating | : | 16 W |
| Series | : | Aspen Orange |
| Sound Level | : | 35 dBA |
| Suction Size | : | 5 ft |
| Temperature Rating | : | 104 deg F |
| Voltage Rating | : | 100-250 V |

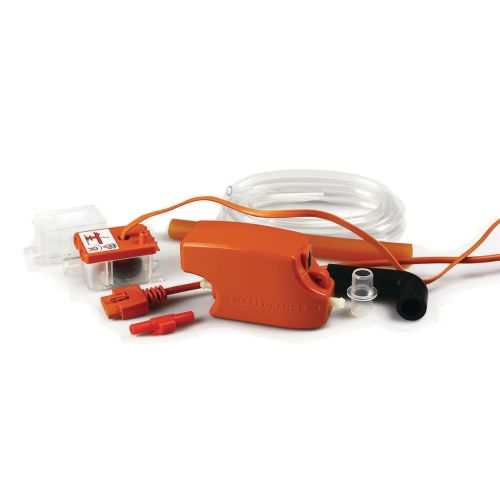

Maxi Orange pumps are designed with a separate pump and reservoir. The 2 elements connect together with a length of 1/4" id vinyl tube and a communication cable, which are both usually around 6 ft. long. This may be extended if required.
RectorSeal Condensate Pump Kit, Model: Aspen Orange, 49' Maximum Feet Of Head, 100-250 V, 0.15 GPM (0' Head), 0.025 GPM (49' Head), Remote Mount (Above Ceiling/Inside Lineset Cover), Pan Mount, In-Line (Reservoir), 1/4" Discharge Size, 16 W, ≤104 °F (Water) Operating Temperature, 1 Phase, 0.18 A, 5' Cord Length, 4-7/8" L x 2-5/8" H x 1-3/4" W Dimensions, ABS
- Self-priming pump allows for flexible installation, including remote mounting above ceilings or inside lineset covers.
- Includes both pan mount and inline style reservoirs for versatile setup options.
- Features modular terminals for quick and easy electrical connections.
- Operates quietly at 35 dB(A).
- Fully potted electronics provide resistance to shock, vibration, moisture, and chemicals.
- Equipped with 3A normally closed dry contacts rated @ 5A inductive @ 230V AC for safety switch or alarm functionality.
- Suitable for removing condensate from ductless mini-split air conditioning systems.
