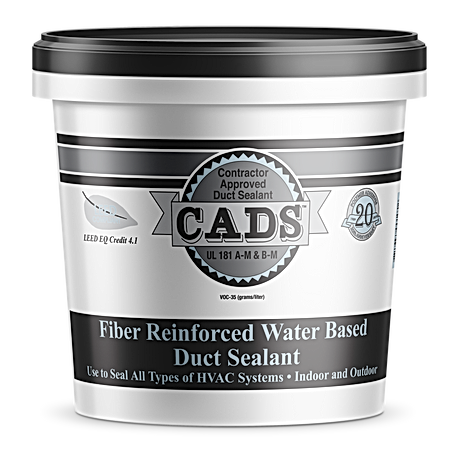

Polymer Adhesive Sealant Systems CADS Series CADS Water-Based Duct Sealant, Water-Based, 1 Gallon Net Content, White, Gray, For Metal, Fiberglass Ductboard, Flexduct, -40-200 °F (Service), 35-115 °F (Storage, Application), 70 - 80 Sq Ft/Gallon @ 20-25 Mils Wet Film Thickness, Paste
Polymer Adhesive Sealant Systems CADS Series CADS Water-Based Duct Sealant, Water-Based, 1 Gallon Net Content, White, Gray, For Metal, Fiberglass Ductboard, Flexduct, -40-200 °F (Service), 35-115 °F (Storage, Application), 70 - 80 Sq Ft/Gallon @ 20-25 Mils Wet Film Thickness, Paste
| Applicable Materials | : | Metal, Fiberglass Ductboard, Flexduct |
| Base Type | : | Water-Based |
| Boiling Point | : | 212 °F |
| Color | : | White, Gray |
| Composition | : | Water, Fiber |
| Container Type | : | Pail |
| Coverage Area | : | 70 - 80 sq ft/gallon @ 20-25 mils wet film thickness |
| Density | : | 10.8 lbs/gal (+/- 0.3 lbs) |
| Dry Time | : | 24-48 hrs |
| Evaporation Rate | : | 1 Relative to Butyl Acetate |
| Finish | : | Fibrous Texture |
| Form | : | Paste |
| Mixing Ratio | : | Single Component |
| Model | : | CADS-1 |
| Net Content | : | 1 gallon |
| Odor/Scent | : | Slight Ammoniacal |
| Series | : | CADS Series |
| Setting Time | : | 1 hr (To Touch) |
| Shelf Life | : | 1.5 yrs (In Unopened Container) |
| Specific Gravity | : | 1.3-1.5 g/cm³ |
| Temperature Rating | : | -40-200 °F (Service), 35-115 °F (Storage, Application) |
| VOC Content | : | 32 g/L |
| Viscosity | : | 70000 to 80000 cPs |
| pH Range | : | 9.4 to 9.8 |
CADS is a fiber-reinforced, water-based duct sealant designed to pressure seal various HVAC duct systems, including metal, fiberglass ductboard, and flex duct. It provides excellent adhesion and flexibility, curing to a tough film suitable for both indoor and outdoor applications.This sealant is rated for high-velocity HVAC systems and offers excellent resistance to mold and mildew. It meets LEED requirements and exceeds all SMACNA pressure and sealing classes, making it a reliable choice for residential and commercial duct sealing projects.
Polymer Adhesive Sealant Systems CADS Water-Based Duct Sealant, Model: CADS Series, Water-Based, 1 Gallon Net Content, White, Gray, For Metal, Fiberglass Ductboard, Flexduct, -40-200 °F (Service), 35-115 °F (Storage, Application), 70 - 80 Sq Ft/Gallon @ 20-25 Mils Wet Film Thickness, Paste, Pail, 1 Hr (To Touch) Setting Time, 24-48 Hrs Dry Time, Slight Ammoniacal Odor, 1.5 Yrs (In Unopened Container) Shelf Life, 8.0-9.5 pH, Water, Fiber, Single Component, 1.3-1.5 g/cm³ Specific Gravity, 10.8 lbs/gal (+/- 0.3 lbs), Fibrous Texture, 212 °F Boiling Point, <1 Relative To Butyl Acetate Evaporation Rate
- Fiber-reinforced, water-based formula provides strength, adhesion, and flexibility.
- Seals various HVAC duct types including metal, fiberglass ductboard, and flex duct.
- Rated for high-velocity systems (up to 10" WC) and suitable for indoor/outdoor use.
- UL 181 A-M and B-M listed and exceeds all SMACNA pressure and sealing classes.
- Provides excellent mold and mildew resistance.
- LEED compliant (EQ Credit 4.1) and freeze-thaw stable.
- Covers approximately 70-80 sq ft per gallon at 20-25 mils wet thickness.
