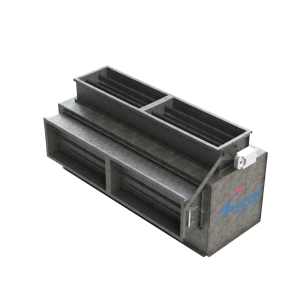

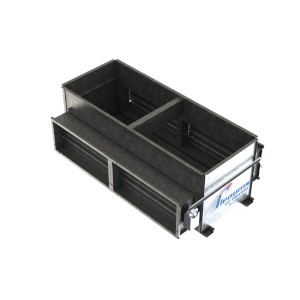

Plenums of Florida PMB Series PMB24Q-28S Insulated Mixing Box, 24-1/2" W x 28" D (Fit) Dimensions, Galvanized Steel, Galvanized
Plenums of Florida PMB Series PMB24Q-28S Insulated Mixing Box, 24-1/2" W x 28" D (Fit) Dimensions, Galvanized Steel, Galvanized
Manufacturer: Plenums of Florida, Inc
Brand: Plenums of Florida
Part #: 388714
MPN: PMB24Q-28S
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Dimensions | : | 24-1/2" W x 28" D (Fit) |
| Finish | : | Galvanized |
| Material | : | Galvanized Steel |
| Series | : | PMB Series |
| Terminal Unit Type | : | Insulated Mixing Box |
Taking outdoor air into the building to help cool a space and provide required ventilation is a well-known technique; to do it to maximum effect takes careful analysis and proper selection of components and control strategies. A mixing box carries out the economizer function of providing cooling assist and ventilation in buildings by taking in outdoor air in a single, packaged device.
Plenums of Florida Insulated Mixing Box, Model: PMB Series, 24-1/2" W x 28" D (Fit) Dimensions, Galvanized Steel, Galvanized
- Constructed from durable galvanized steel.
- Fully insulated design helps maintain air temperature and prevent condensation.
- Features parallel blade dampers equipped with bronze bushings for reliable operation.
- Includes damper linkage and associated hardware for installation.
- Sized to fit applications requiring dimensions of 24.5" W x 28" D.
- Facilitates the economizer function by mixing outdoor and return air streams.
