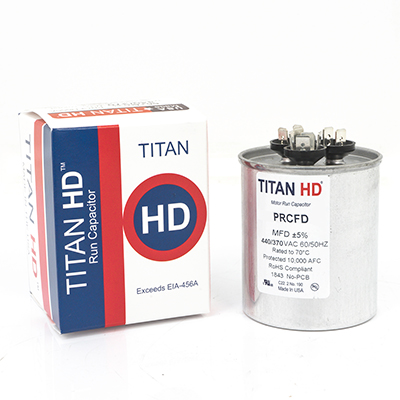

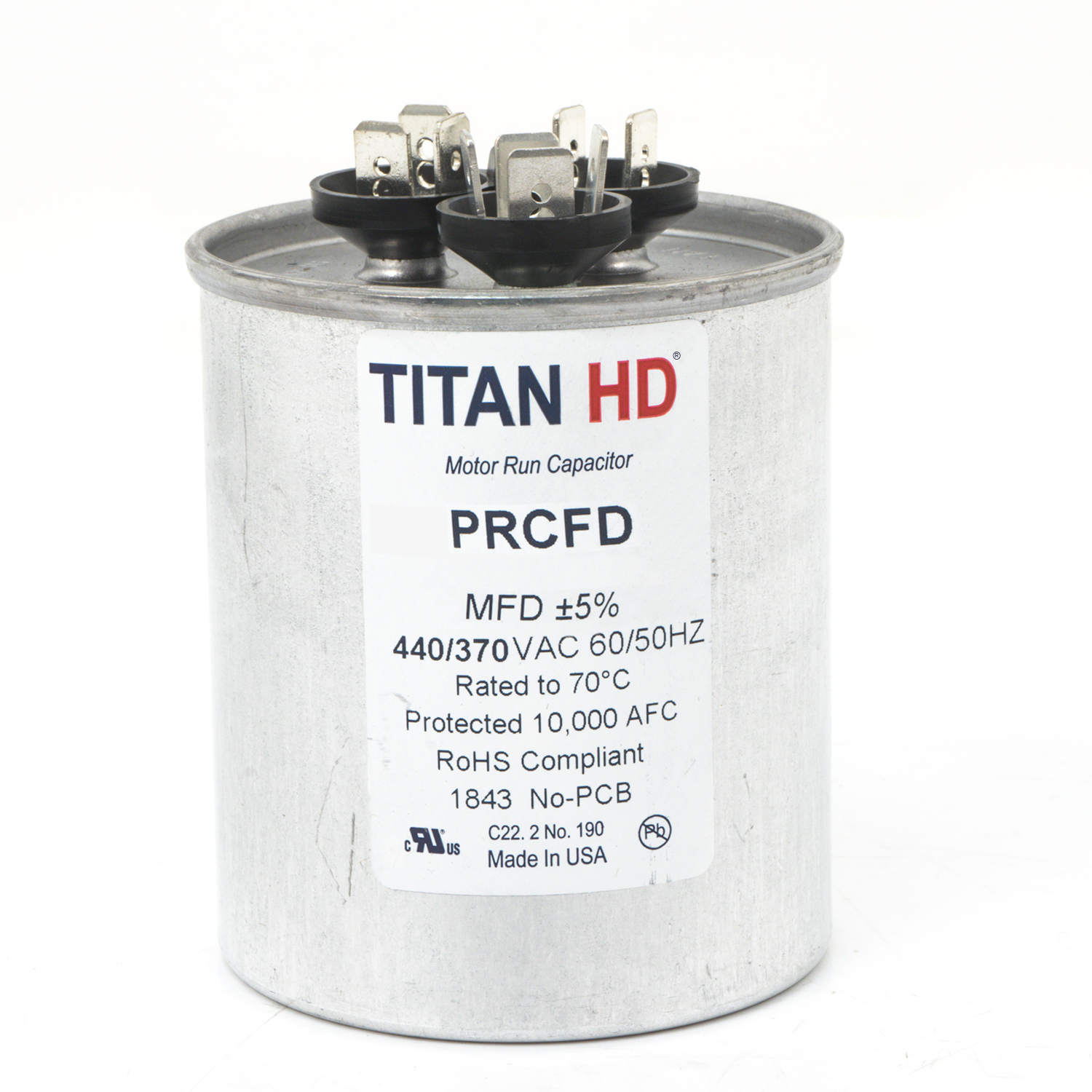

Packard Titan HD PRCFD5575A Dual Motor Run Capacitor, 55/7.5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3.88" Overall Height, 2-1/2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Packard Titan HD PRCFD5575A Dual Motor Run Capacitor, 55/7.5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3.88" Overall Height, 2-1/2" Diameter, Aluminum (Case), Steel (Cover) Housing Material
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 388871
MPN: PRCFD5575A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Average Life | : | 60000 hr |
| Capacitance | : | 55/7.5 MFD |
| Case Material | : | Aluminum |
| Diameter | : | 2-1/2 " |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3.88 in |
| Housing Color | : | Silver |
| Housing Material | : | Aluminum (Case), Steel (Cover) |
| MFD Rating | : | 55+7.5 uF |
| Number of Sections | : | 2 |
| Overall Height | : | 3.88 " |
| Series | : | Titan HD |
| Shape | : | Round |
| Standard Tolerance | : | +/-10 % |
| Suitable For Use With | : | Electric Motors, Air Conditioning, Refrigeration, Business Machines, Fans |
| Temperature Rating | : | -40 to 70 deg C |
| Voltage Rating | : | 440/370 VAC |
Packard has received the call to create a USA-made capacitor to provide contractors with confidence on the job. Our answer is Titan HDâ„¢. With a substantial 60,000 hours of operating life, it is just as hardworking as those who made them.
Packard Dual Motor Run Capacitor, Model: Titan HD, 55/7.5 MFD, 440/370 VAC, Round, 2 Number Of Sections, 3.88" Overall Height, 2-1/2" Diameter, Aluminum (Case), Steel (Cover) Housing Material, Silver
- Made in the USA.
- Offers a long operating life rated up to 60,000 hours.
- Meets the rigorous EIA-456-A industry standard for performance and quality.
- Features metalized polypropylene film technology for self-restoration in the event of a breakdown.
- Includes a sophisticated UL-approved pressure sensitive interrupter to remove the capacitor from the circuit at end of life.
- Utilizes patented, environmentally-friendly, soybean-based oil to prevent corrosion and aid heat transfer.

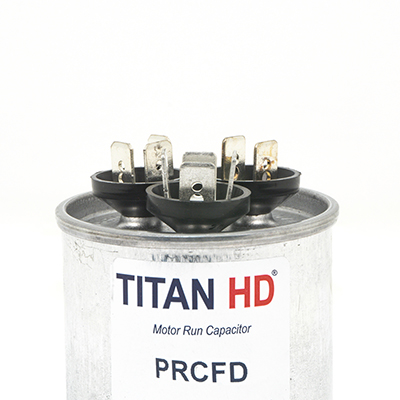

- Designed with an aluminum case and standard 1/4" male quick-connect terminals.
- Rated for 440/370 VAC operation at 50/60 Hz.
- Suitable for use with electric motors in applications like air conditioning and refrigeration.
