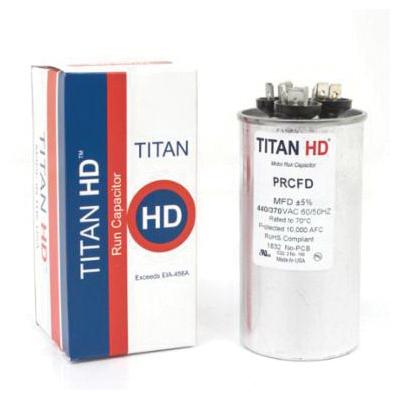

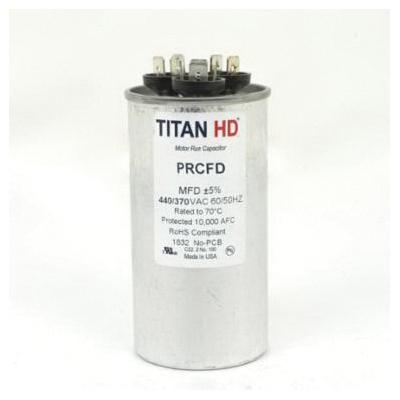

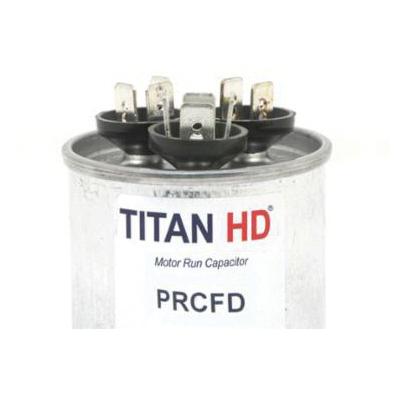

Packard PRCFD Series PRCFD505A Motor Dual Run Capacitor, MFD Rating: 50+5 uF, 440 VAC, Round, 2 in Dia, 3.88 in H
Packard PRCFD Series PRCFD505A Motor Dual Run Capacitor, MFD Rating: 50+5 uF, 440 VAC, Round, 2 in Dia, 3.88 in H
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 388867
MPN: PRCFD505A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Average Life | : | 60000 hr |
| Case Material | : | Aluminum |
| Diameter | : | 2 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3.88 in |
| MFD Rating | : | 50+5 uF |
| Series | : | PRCFD Series |
| Shape | : | Round |
| Standard Tolerance | : | +/-10 % |
| Temperature Rating | : | -40 to 70 deg C |
| Voltage Rating | : | 440 VAC |
Packard Motor Dual Run Capacitor, Series: PRCFD Series, 50+5 uF MFD Rating, 440 VAC, 50/60 Hz, Round Shape, 60000 hr Average Life, +/-10 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, 2 in Dia, 3.88 in Height
- Manufactured using state of the art, metalized polypropylene film technology for self-restoration in the event of a breakdown
- Eye catching packaging for retail environment
- Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
- Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
- Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
- Aluminum cans filled with soybean based oil
- Made in U.S.A
