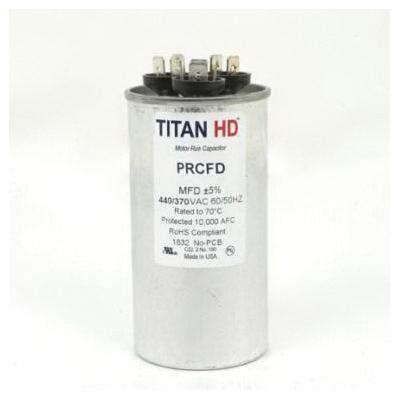

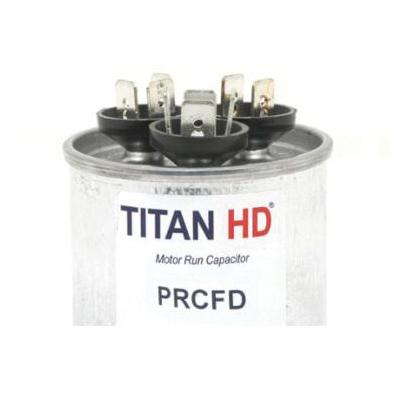

Packard PRCFD Series PRCFD353A Motor Dual Run Capacitor, MFD Rating: 35+3 uF, 440 VAC, Round, 2 in Dia, 2.88 in H
Packard PRCFD Series PRCFD353A Motor Dual Run Capacitor, MFD Rating: 35+3 uF, 440 VAC, Round, 2 in Dia, 2.88 in H
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 388856
MPN: PRCFD353A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | 1/4 in Terminal Size |
| Average Life | : | 60000 hr |
| Case Material | : | Aluminum |
| Cover Material | : | Steel |
| Diameter | : | 2 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 2.88 in |
| MFD Rating | : | 35+3 uF |
| Series | : | PRCFD Series |
| Shape | : | Round |
| Standard Tolerance | : | +/-10 % |
| Temperature Rating | : | -40 to 70 deg C |
| Terminal Type | : | Male Quick-Connect |
| Voltage Rating | : | 440 VAC |
Packard Motor Dual Run Capacitor, Series: PRCFD Series, 35+3 uF MFD Rating, 440 VAC, 50/60 Hz, Round Shape, Male Quick-Connect Terminal, 60000 hr Average Life, +/-10 % Standard Tolerance, -40 to 70 deg C, Aluminum Case, Steel Cover, 2 in Dia, 2.88 in Height, Additional Information: 1/4 in Terminal Size

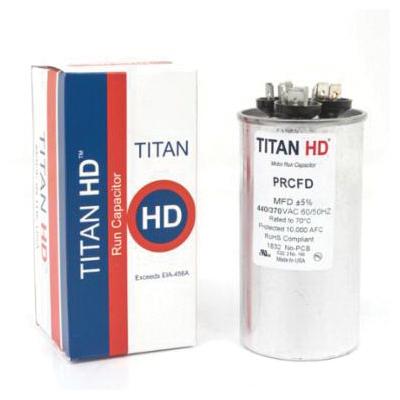

- Eye catching packaging for retail environment
- Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
- Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
- Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
- Aluminum cans filled with soybean based oil
- Made in USA
