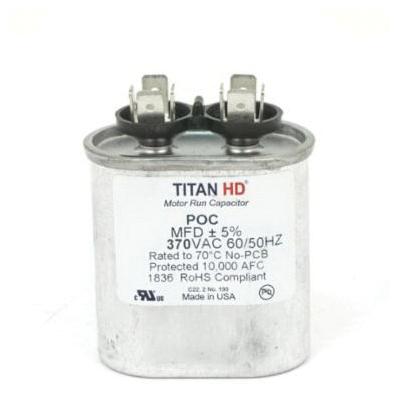

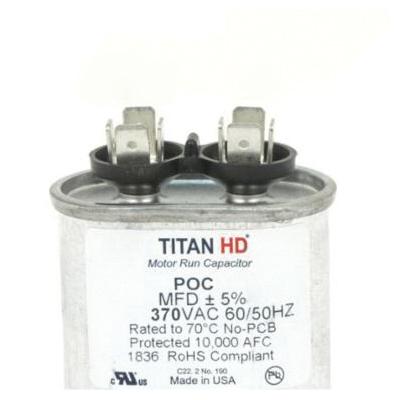

Packard POC Series POC10A Motor Single Run Capacitor, MFD Rating: 10 uF, 370 VAC, Oval, 3.41 in H, 2 in W, 1-1/4 in D
Packard POC Series POC10A Motor Single Run Capacitor, MFD Rating: 10 uF, 370 VAC, Oval, 3.41 in H, 2 in W, 1-1/4 in D
Manufacturer: DiversiTech Corporation
Brand: Packard
Part #: 388798
MPN: POC10A
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Additional Information | : | 1/4 in Terminal Size |
| Average Life | : | 60000 hr |
| Case Height | : | 2.91 in |
| Case Material | : | Aluminum |
| Cover Material | : | Steel |
| Depth | : | 1-1/4 in |
| Frequency Rating | : | 50/60 Hz |
| Height | : | 3.41 in |
| MFD Rating | : | 10 uF |
| Series | : | POC Series |
| Shape | : | Oval |
| Standard Tolerance | : | +/-10 % |
| Temperature Rating | : | -40 to 70 deg C |
| Terminal Type | : | Male Quick-Connect |
| Voltage Rating | : | 370 VAC |
| Width | : | 2 in |
Packard Motor Single Run Capacitor, Series: POC Series, 10 uF MFD Rating, 370 VAC, 50/60 Hz, Oval Shape, Male Quick-Connect Terminal, 60000 hr Average Life, +/-10 % Standard Tolerance, 2.91 in Case Height, -40 to 70 deg C, Aluminum Case, Steel Cover, 3.41 in Height, 2 in Width, 1-1/4 in D, Additional Information: 1/4 in Terminal Size
- Manufactured using state of the art, metalized polypropylene film technology for self-restoration in the event of a breakdown
- Eye catching packaging for retail environment
- Contains metalized polypropylene film technology for self-restoration in the event of a breakdown
- Sophisticated UL approved pressure sensitive interrupter to remove the capacitor from circuit at end of life
- Patented, environmentally friendly oil prevents corrosion and aids in optimum heat transfer
- Aluminum cans filled with soybean based oil
- Made in U.S.A
