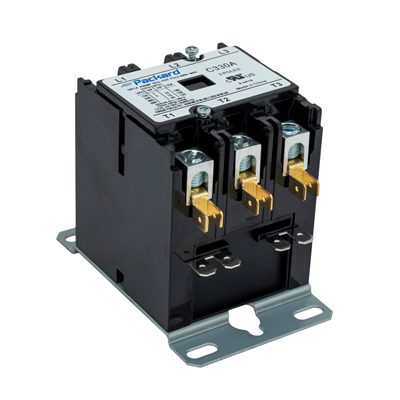

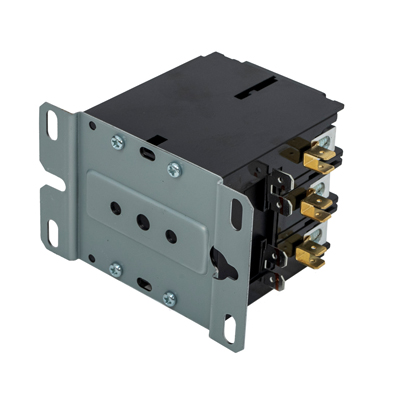

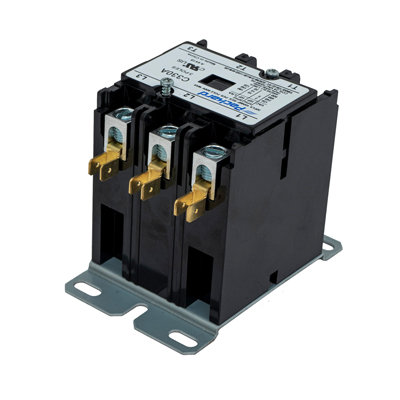

Packard C340C Definite Purpose Contactor, 3 Pole, 40 A (Inductive, 600 VAC), 50 A (Resistive, 600 VAC) Contact Rating, 208 VAC, 240 VAC, 600 VAC, 240 A (240 V), 200 A (480 V), 160 A (600 V), Box Lug, Spade Terminal Connection Type, Foot Mount
Packard C340C Definite Purpose Contactor, 3 Pole, 40 A (Inductive, 600 VAC), 50 A (Resistive, 600 VAC) Contact Rating, 208 VAC, 240 VAC, 600 VAC, 240 A (240 V), 200 A (480 V), 160 A (600 V), Box Lug, Spade Terminal Connection Type, Foot Mount
| Amperage Rating | : | 40 A (Inductive); 50 A (Resistive) |
| Coil Voltage | : | 208/240 VAC |
| Connection Type | : | Box Lug, Spade Terminal |
| Contact Material | : | Silver Plated |
| Contact Rating | : | 40 A (Inductive, 600 VAC), 50 A (Resistive, 600 VAC) |
| Expansion Slot Type | : | Accepts AC3, P6S, P7S Auxiliary Switches |
| Frequency Rating | : | 50 Hz, 60 Hz |
| Full Load Current Rating | : | 40 A |
| Insulation Class | : | Class B (Coil) |
| Load Rating | : | 40 A (Inductive), 50 A (Resistive) |
| Locked Rotor Rating | : | 240 A (240 V), 200 A (480 V), 160 A (600 V) |
| Model | : | C340C |
| Mounting Type | : | Foot Mount |
| Number of Poles | : | 3 |
| Resistive Amperage | : | 50 A |
| Terminal Type | : | Box Lug, Spade Terminal |
| Voltage Rating | : | 600 VAC |
This 3-pole definite purpose contactor operates with a 208/240 VAC coil voltage. It meets UL 508 specifications for devices up to 600 VAC and features Class B coil insulation for reliability. The contactor has a 40 A inductive and 50 A resistive rating at 50/60 Hz.Designed for durability, it features a dust-free internal construction and versatile foot mounting. The package includes box lugs, spade terminals, and covers for convenient installation.
Packard Definite Purpose Contactor, 3 Pole, 40 A (Inductive, 600 VAC), 50 A (Resistive, 600 VAC) Contact Rating, 208 VAC, 240 VAC, 600 VAC, 240 A (240 V), 200 A (480 V), 160 A (600 V), Box Lug, Spade Terminal Connection Type, Foot Mount, Silver Plated Contacts, 50 Hz, 60 Hz, Class B (Coil), Accepts AC3, P6S, P7S Auxiliary Switches
- Meets UL 508 specifications and is UL recognized for safety assurance.
- Features Class B coil insulation for reliable performance.
- Rated for 40 A inductive and 50 A resistive loads at 50/60 Hz.

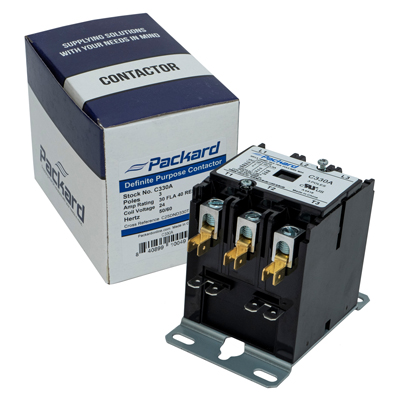

- Includes box lugs, spade terminals, and protective covers.
- Versatile foot mount allows for flexible installation options.
- Accepts Packard AC3, P6S, or P7S auxiliary switches (sold separately).
