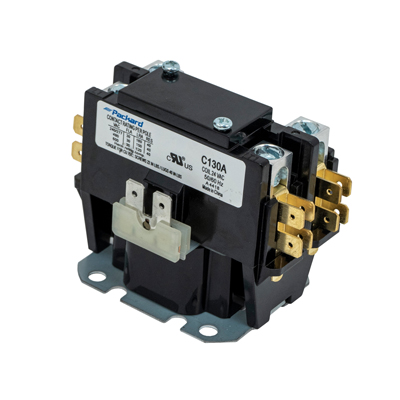

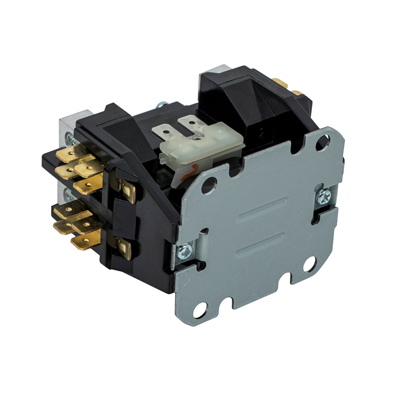

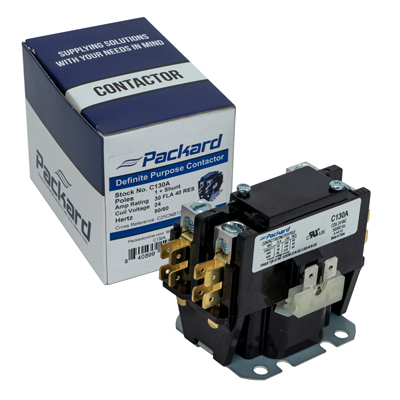

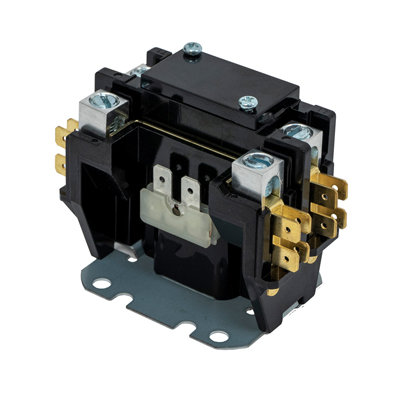

Packard C130A Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V)

This definite purpose contactor is built for demanding HVAC applications, featuring a single pole with shunt configuration, a 30 Amp inductive (40 Amp resistive) rating, and a 24 VAC coil compatible with 50/60 Hz systems. Designed for reliability, it meets UL 508 specifications for industrial control equipment up to 600 VAC.The contactor incorporates Class B coil insulation for enhanced durability and features a dust-free internal construction. It offers flexible installation with a versatile foot mount and convenient wiring options, including standard box lugs and spade terminals, plus quick connects for the coil.

Packard Definite Purpose Contactor, 1 (With Shunt) Pole, 30 A Contact Rating, 24 VAC, 600 VAC, 1-Phase, 40 A, 180 A (240 V), 150 A (480 V), 120 A (600 V), Box Lug, Spade Terminal Connection Type, Foot Mount, 1NO, 50 Hz, 60 Hz, 2.64" Height, 2.17 In Width, Class B

• Rated for 30 Amps inductive (40 Amps resistive) at up to 600 VAC.
• Single pole configuration with shunt, operated by a 24 VAC coil (50/60 Hz).
• Features Class B coil insulation for enhanced durability.
• Includes box lugs, spade terminals, and covers for convenient installation.
• Versatile foot mount allows for easy placement and replacement.
• UL Recognized and CSA Certified for safety compliance.
• Designed with dust-free internal construction.

• Specification Sheet https://s3.amazonaws.com/open-secret-production-public/data-studio/marcone/documents/div-c130a-specification-sheet-4647-9018.pdf
