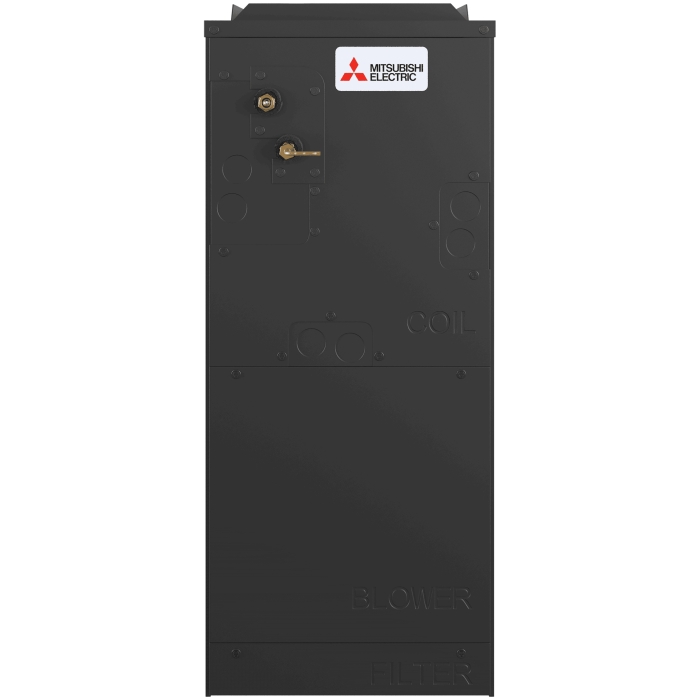

Mitsubishi Electric Trane® SVZ-AP36NL Ducted Air Handler, R-454B Refrigerant, 208/230 V, 1 ph, 36000 Btu/hr Cooling
Mitsubishi Electric Trane® SVZ-AP36NL Ducted Air Handler, R-454B Refrigerant, 208/230 V, 1 ph, 36000 Btu/hr Cooling
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 389629
MPN: SVZ-AP36NL
Customer Part #:
Min. Order Qty: 1
Login for Availability
| Air Flow Direction | : | Downflow, Multi-Position |
| BTU Cooling Rating | : | 36000 Btu/hr |
| CFM Airflow | : | 910 cfm |
| Depth | : | 21-5/8 in |
| Filter Size | : | 20 x 20 x 1 in |
| Height | : | 43-7/8 in |
| Liquid Line Size | : | 3/8 in |
| Motor Type | : | ECM |
| Number of Speeds | : | 3 |
| Phase | : | 1 ph |
| Product Family | : | M Series |
| Refrigerant Type | : | R-454B |
| SEER | : | 20 |
| Sound Level | : | 49 dBA |
| Voltage Rating | : | 208/230 V |
| Width | : | 21 in |
The SVZ Multi-position Air Handler is a whole-home solution that can replace furnaces or forced-air systems using existing ductwork. It supports upflow, downflow, and horizontal left/right configurations; and it can be disassembled and reassembled to fit through tight spaces. Built-in control inputs support humidifiers, ERVs, and auxiliary heat. The SVZ is compatible with SUZ single-zone units, with MXZ compatibility available, and comes in 12k - 60k BTU/H models.
Mitsubishi Electric Trane® Ducted Air Handler, R-454B Refrigerant, Downflow, Multi-Position Air Flow Direction, 208/230 V, 1 ph Phase, 36000 Btu/hr Cooling, 21 in Width, 910 cfm, Product Family: M Series, 43-7/8 in Height, 21-5/8 in Depth, 3/8 in Liquid Line, ECM Motor, 20 x 20 x 1 in Filter, 49 dBA Sound Level, 3 Speed, 20 SEER
