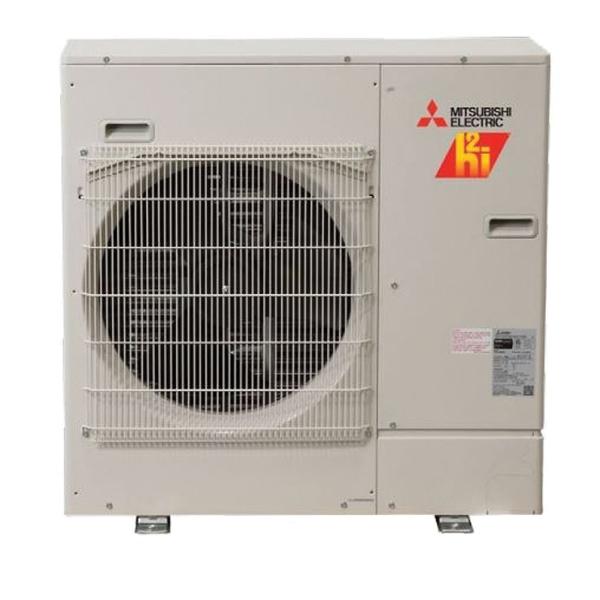

Mitsubishi Electric Trane® SUZ-KA24NAHZ-R1 Outdoor Hyper Heating Universal Unit, 208/230 V, 17 A, 1 ph
Mitsubishi Electric Trane® SUZ-KA24NAHZ-R1 Outdoor Hyper Heating Universal Unit, 208/230 V, 17 A, 1 ph
| Amperage Rating | : | 17 A |
| Color | : | Ivory |
| Compressor Type | : | Scroll |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 10000 to 24000 Btu/hr |
| Cooling CFM Rating | : | 800 cfm |
| Cooling Operating Temperature | : | 95 deg F |
| Cooling Sound Level | : | 52 dBA |
| Drive Type | : | Inverter |
| EER Rating | : | 10.3 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 25 A |
| HSPF Rating | : | 9 |
| Heating BTU Rating | : | 10000 to 28000 Btu/hr |
| Heating CFM Rating | : | 800 cfm |
| Heating Operating Temperature | : | 47 deg F |
| Heating Sound Level | : | 53 dBA |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 37-1/8 in |
| Overall Length | : | 37-13/32 in |
| Overall Width | : | 14-3/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 2080 W Cooling, 2280 W Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 15 |
| Series | : | SUZ-KA-NAHZ Series |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® Outdoor Hyper Heating Universal Unit, Series: SUZ-KA-NAHZ, 208/230 V, 17 A, 2080 W Cooling, 2280 W Heating, 60 Hz, 1 ph, 10000 to 28000 Btu/hr Heating, 10000 to 24000 Btu/hr Cooling, 800 cfm Heating CFM Rating, 800 cfm Cooling CFM Rating, 10.3 EER Rating, 15 SEER, 9 HSPF, Flared Connection, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, 53 dBA Heating Sound Level, 52 dBA Cooling Sound Level, Ivory, 47 deg F Heating Operating Temperature, 95 deg F Cooling Operating Temperature, 37-13/32 in Overall Length, 14-3/16 in Overall Width, 37-1/8 in Overall Height
- The outdoor unit powers the indoor unit, and should a power outage occur, the system is automatically restarted when power returns
- INVERTER-driven compressor and LEV provide high efficiency and comfort while using only the energy needed to maintain maximum performance
- H2i® hyper heat performance offers 100% heating capacity at 5deg F
- Hot-Start Technology: no cold air rush at equipment startup or when restarting after Defrost Cycle
- Quiet operation
- Built-in base pan heater
- Innovative Joint Lap DC Motor leads to high efficiency and reliability
- Pulse Amplitude Modulation technology
