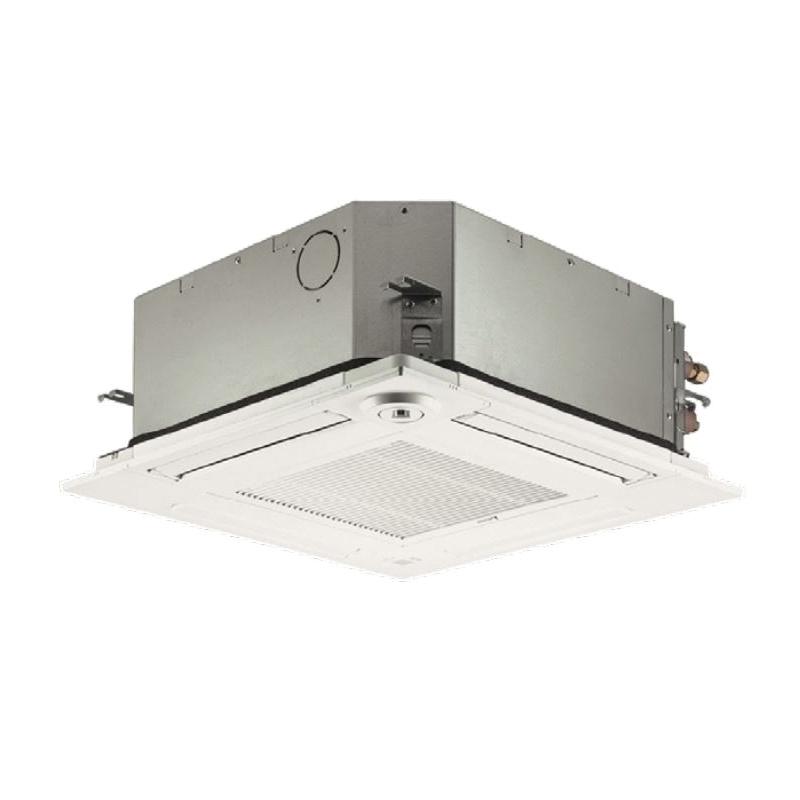

Mitsubishi Electric Trane® SLZ-KF09NA1 4-Way Indoor Cassette Ductless Heat Pump, 24 in, 208/230 V, 1 A, 1 ph
Mitsubishi Electric Trane® SLZ-KF09NA1 4-Way Indoor Cassette Ductless Heat Pump, 24 in, 208/230 V, 1 A, 1 ph
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 389511
MPN: SLZ-KF09NA1
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 1 A |
| BTU Rating | : | 3600 to 9000 Btu/hr Cooling, 4010 to 12000 Btu/hr Heating |
| CFM Rating | : | 230/265/300 cfm Cooling, 230/265/335 cfm Heating |
| Color | : | White |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | Flared |
| Drive Type | : | Inverter |
| EER Rating | : | 13.4 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 12.2 |
| Mounting Type | : | Ceiling |
| Overall Height | : | 9-21/32 in |
| Overall Length | : | 22-7/16 in |
| Overall Width | : | 22-7/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 670 W Cooling, 940 W Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 24 |
| Series | : | SLZ Series |
| Size | : | 24 in |
| Sound Level | : | 25/28/31 dBA Cooling, 25/28/31 dBA Heating |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® 4-Way Indoor Cassette Ductless Heat Pump, Series: SLZ, 24 in, 208/230 V, 1 A, 670 W Cooling, 940 W Heating, 60 Hz, 1 ph, 3600 to 9000 Btu/hr Cooling, 4010 to 12000 Btu/hr Heating, 230/265/300 cfm Cooling, 230/265/335 cfm Heating, 13.4 EER Rating, 24 SEER, 12.2 HSPF, Flared Connection, 1-1/4 in Connection, R-410A Refrigerant, 15 A Fuse Rating, Inverter Drive, 25/28/31 dBA Cooling, 25/28/31 dBA Heating Sound Level, Ceiling Mounting, White, 22-7/16 in Overall Length, 22-7/16 in Overall Width, 9-21/32 in Overall Height
- Ceiling-recessed cassette (24"x24") ductless heat pump
- Install Konnect Series in a drywalled ceiling (with an access panel for servicing) or in a 2'x2' drop ceiling
- Wide airflow pattern for excellent air distribution
- Optional 3D i-see Sensor®
- Fresh air intake provided in the main body
- Built-in drain condensate lift mechanism (lifts to 33")
- kumo cloud® smart device app for remote access
- Third-party interface options
- Wired or wireless controllers
- Long-life air filter included
- Individual vane control
