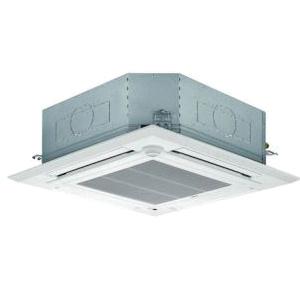

Mitsubishi Electric PLA-A36EA8 Ceiling Cassette Indoor Unit, 208 - 230 VAC, 24 VDC, 36000 Btu/hr BTU, 1 ph -Phase
Mitsubishi Electric PLA-A36EA8 Ceiling Cassette Indoor Unit, 208 - 230 VAC, 24 VDC, 36000 Btu/hr BTU, 1 ph -Phase
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388667
MPN: PLA-A36EA8
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| BTU Rating | : | 36000 Btu/hr |
| CFM Rating | : | 670 to 1200 cfm Dry Cooling, 630 to 1160 cfm Wet Cooling, 670 to 1200 cfm Dry Heating |
| Connection Type | : | Flared |
| EER Rating | : | 13 |
| Finish | : | Munsell |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 35 A |
| HSPF Rating | : | 9, 7.4 |
| Mounting Type | : | Ceiling |
| Overall Height | : | 11-3/4 in |
| Overall Length | : | 33���1/16 in |
| Overall Width | : | 33���1/16 in |
| Phase | : | 1 ph |
| Power Rating | : | 2750 W Cooling, 2650 to 2715 W Heating |
| SEER Rating | : | 20 |
| Sound Level | : | 32 to 44 dBA |
| Suitable For Use With | : | MXZ and PUMY Heat Pumps Systems |
| Voltage Rating | : | 208 - 230 VAC, 24 VDC |
Mitsubishi Electric Ceiling Cassette Indoor Unit, 208 - 230 VAC, 24 VDC, 2750 W Cooling, 2650 to 2715 W Heating, 60 Hz, 1 ph Phase, 36000 Btu/hr, 670 to 1200 cfm Dry Cooling, 630 to 1160 cfm Wet Cooling, 670 to 1200 cfm Dry Heating, 13 EER Rating, 20 SEER, 9, 7.4 HSPF, Flared Connection, 35 A Fuse Rating, 32 to 44 dBA Sound Level, Ceiling Mounting, Finish: Munsell, 33‐1/16 in Overall Length, 33‐1/16 in Overall Width, 11-3/4 in Overall Height, For Use With: MXZ and PUMY Heat Pumps Systems
