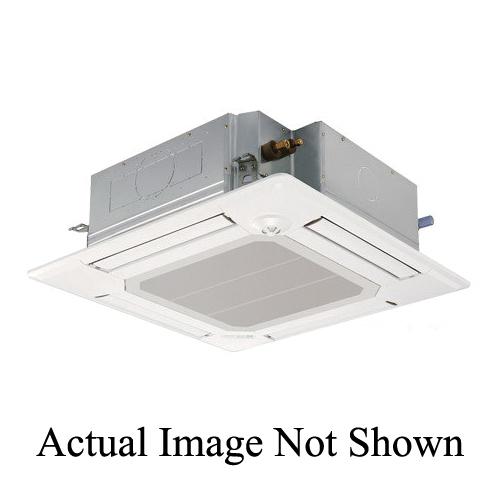

Mitsubishi Electric PLA Series PLA-A30BA4 Ceiling Cassette Indoor Unit, 1-1/4 in, 208/230 V, 1 A, 30000 Btu/hr BTU
Mitsubishi Electric PLA Series PLA-A30BA4 Ceiling Cassette Indoor Unit, 1-1/4 in, 208/230 V, 1 A, 30000 Btu/hr BTU

Mitsubishi Electric PLA Series PLA-A30BA4 Ceiling Cassette Indoor Unit, 1-1/4 in, 208/230 V, 1 A, 30000 Btu/hr BTU

Mitsubishi Electric PLA Series PLA-A30BA4 Ceiling Cassette Indoor Unit, 1-1/4 in, 208/230 V, 1 A, 30000 Btu/hr BTU

Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388664
MPN: PLA-A30BA4
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
Amperage Rating      :      1 A
BTU Rating      :      30000 Btu/hr
CFM Rating      :      490 to 740 cfm
Connection Size      :      3/8 in, 5/8 in
Connection Type      :      Flared
Drive Type      :      Direct
Finish      :      Munsell 6.4 8.9/0.4
Frequency Rating      :      60 Hz
Fuse Rating      :      15 A
HSPF Rating      :      9.4
Mounting Type      :      Ceiling
Number of Fan Speeds      :      1
Overall Height      :      10-3/16 in
Overall Length      :      33-1/16 in
Overall Width      :      33-1/16 in
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      15.6
Series      :      PLA Series
Size      :      1-1/4 in
Sound Level      :      28 to 30 to 32 to 34 dBA
Temperature Rating      :      10 to 30 deg C
Voltage Rating      :      208/230 V

Mitsubishi Electric Ceiling Cassette Indoor Unit, Series: PLA Series, 1-1/4 in, 208/230 V, 1 A, 60 Hz, 1 ph, 1 Number of Fan Speeds, 30000 Btu/hr, 490 to 740 cfm CFM Rating, 15.6 SEER, HSPF: 9.4, Flared, 3/8 in, 5/8 in, R-410A, 15 A Fuse, Direct Drive, 28 to 30 to 32 to 34 dBA, Ceiling Mount, Munsell 6.4 8.9/0.4, 10 to 30 deg C, 33-1/16 in Overall Length, 33-1/16 in Overall Width, 10-3/16 in Overall Height

  • Innovative flash technology enables high heating capacity at lower outside temperatures
  • Exhibits 100% of rated heating capacity at 5 deg F, 90% of rated heating capacity at-4 deg F
  • Built-in drain lift mechanism for condensate removal, lifts upto 33-7/16 in
  • Wide airflow pattern for better air distribution; independently adjustable vanes
  • Auto wave airflow in heating mode unit independently cycles through horizontal and vertical positions for more even heat distribution
  • Self-check function-integrated diagnostics
  • Limited warranty
