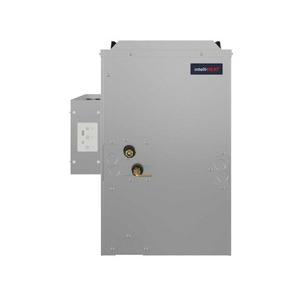

Mitsubishi Electric PAA Series PAA-A42BA1 Air Conditioner Coil, Type A Coil, 3.5 ton, 3880 cfm, Steel
Mitsubishi Electric PAA Series PAA-A42BA1 Air Conditioner Coil, Type A Coil, 3.5 ton, 3880 cfm, Steel
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388515
MPN: PAA-A42BA1
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 0.2 A/5 kA |
| BTU Rating | : | 42000 Btu/hr Cooling, 46000 Btu/hr Heating |
| CFM Rating | : | 3880 cfm |
| Coil Type | : | Type A |
| Configuration | : | Cased, Horizontal Right/Left, Vertical, Upflow/Downflow |
| Connection Size | : | 3/8 in, 5/8 in |
| Connection Type | : | Flared |
| Dimensions | : | 31 in H x 17-1/2 in W x 21-3/8 in D |
| Finish | : | Galvanized |
| Flow Rate | : | 1225 cfm |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 30 A |
| Material | : | Steel |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.3 in-WG Static |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 15.5 |
| Series | : | PAA Series |
| Suitable For Use With | : | P-Series, M/Nv-Series Systems, PUY-A42NKA7, PUZ-A42NKA7 Outdoor Units |
| Temperature Rating | : | 0 to 115 deg F Cooling, -4 to 70 deg F Heating |
| Tonnage | : | 3.5 ton |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Corporation Mitsubishi Electric Air Conditioner Coil, PAA Series, 42000 Btu/hr Cooling, 46000 Btu/hr Heating, 208/230 V, 0.2 A/5 kA, 60 Hz, 1 ph Phase, Cased, Horizontal Right/Left, Vertical, Upflow/Downflow, 3880 cfm, 15.5 SEER, Tonnage: 3.5 ton, R-410A Refrigerant, Type A Coil, 3/8 in, 5/8 in Connection, Flared Connection, 30 A Fuse Rating, 1225 cfm Flow Rate, 0.3 in-WG Static, 0 to 115 deg F Cooling, -4 to 70 deg F Heating, Steel, Finish: Galvanized, 31 in H x 17-1/2 in W x 21-3/8 in D, For Use With: P-Series, M/Nv-Series Systems, PUY-A42NKA7, PUZ-A42NKA7 Outdoor Units
- Economic balance point allows the customer to choose the outdoor ambient temperature to switch from heat pump to furnace
- Capacity balance point allows the customer to determine the length of time (24 to 29 min) the heat pump will attempt to heat the space before switching to furnace (as an auxiliary heat source)
- Emergency mode ensures system to operate in furnace mode when in error
- Auto restart function for auto recovery after power failure
