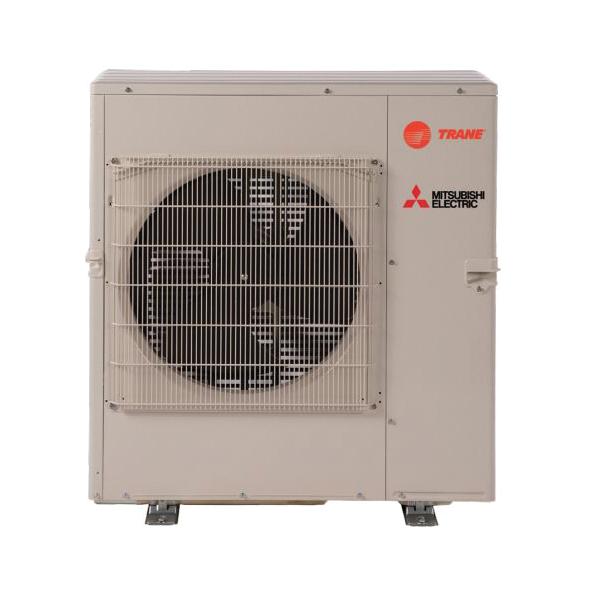

Mitsubishi Electric Trane® NTXMMX42A152AA Multi-Indoor Heat Pump System, 208/230 V, 32.5 A, 40500 Btu/hr Cooling
Mitsubishi Electric Trane® NTXMMX42A152AA Multi-Indoor Heat Pump System, 208/230 V, 32.5 A, 40500 Btu/hr Cooling
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388415
MPN: NTXMMX42A152AA
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 32.5 A |
| Color | : | Munsell 3Y 7.8/11 |
| Compressor Type | : | Inverter Scroll Hermetic |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 40500 Btu/hr |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 56 dBA |
| EER Rating | : | 9.2 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HSPF Rating | : | 10.3 |
| Heating BTU Rating | : | 45000 Btu/hr |
| Heating Operating Temperature | : | 5 to 65 deg F |
| Heating Sound Level | : | 58 dBA |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | NTXMMX |
| Overall Height | : | 41-9/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 4403 W Cooling, 3575 W Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19.7 |
| Suction Line Size | : | 1/2 in, 3/8 in |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® Multi-Indoor Heat Pump System, 208/230 V, 32.5 A, 4403 W Cooling, 3575 W Heating, 60 Hz, 1 ph Phase, 45000 Btu/hr Heating, 40500 Btu/hr Cooling, 9.2 EER Rating, 19.7 SEER, 10.3 HSPF, Flared Connection, Inverter Scroll Hermetic Compressor, R-410A Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, 40 A Fuse Rating, 58 dBA Heating Sound Level, 56 dBA Cooling Sound Level, Munsell 3Y 7.8/11, 5 to 65 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-13/32 in Overall Width, 41-9/32 in Overall Height
- Variable speed INVERTER-driven compressor
- Optional base pan heater
- Quiet outdoor unit operation as low as 58 dB(A)
- High pressure protection
- Compressor thermal protection
- Compressor overcurrent detection
- Fan motor overheating/voltage protection
