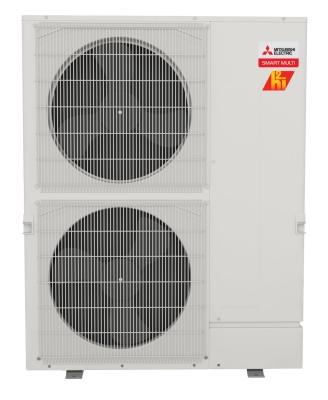

Mitsubishi Electric MXZ-SM MXZ-SM42NAMHZ-U1 Hyper-Heating Multi-Zone Heat Pump System, 208/230 V, 42000 Btu/hr Cooling
Mitsubishi Electric MXZ-SM MXZ-SM42NAMHZ-U1 Hyper-Heating Multi-Zone Heat Pump System, 208/230 V, 42000 Btu/hr Cooling
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388349
MPN: MXZ-SM42NAMHZ-U1
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Compressor Type | : | Variable Speed Inverter Driven |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 42000 Btu/hr |
| Cooling CFM Rating | : | 3885 cfm |
| Cooling Sound Level | : | 50 dBA |
| EER Rating | : | 11, 12.2, 13.4 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 40 A |
| HSPF Rating | : | 11, 12 |
| Heating BTU Rating | : | 32000 to 48000 Btu/hr |
| Heating CFM Rating | : | 3885 cfm |
| Heating Sound Level | : | 54 dBA |
| Liquid Line Size | : | 3/8 in |
| Model | : | MXZ-SM |
| Overall Height | : | 13 in |
| Overall Length | : | 52-11/16 in |
| Overall Width | : | 41-11/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 3135 W, 3350 W, 3440 W, 3430 W, 3550 W, 3750 W, 3820 W, 4140 W |
| SEER Rating | : | 18, 22 |
| Suction Line Size | : | 5/8 in |
| Tonnage | : | 3.5 ton |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Hyper-Heating Multi-Zone Heat Pump System, Model: MXZ-SM, 208/230 V, 3135 W, 3350 W, 3440 W, 3430 W, 3550 W, 3750 W, 3820 W, 4140 W Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 32000 to 48000 Btu/hr, Cooling BTU Rating: 42000 Btu/hr, Heating CFM Rating: 3885 cfm, Cooling CFM Rating: 3885 cfm, 11, 12.2, 13.4 EER, 18, 22 SEER, 11, 12 HSPF, Flared Connection, Variable Speed Inverter Driven Compressor, 3/8 in Liquid Line, 5/8 in Suction Line, 40 A Fuse, Tonnage: 3.5 ton, Heating Sound Level: 54 dBA, Cooling Sound Level: 50 dBA, 52-11/16 in Overall Length, 41-11/32 in Overall Width, 13 in Overall Height
- Multi-zone, H2i hyper heating heat pump outdoor unit, Blue Fin anti-corrosion treatment on heat exchanger
- Compatible with M and P Series and City Multi® indoor units, branch box required for connection with M and P Series
- Seacoast protection on heat exchanger and base panel (rated for 2000 hr in accordance with ASTM B117 testing)
- Thermal differential 1 deg F (with PAC-MKA32/52BC only)
- Built-in base pan heater
- Quiet outdoor unit operation, rated sound pressure as low as 50 dBA
- High pressure protection
- Compressor thermal protection
- Compressor overcurrent detection
- Fan motor overheating/voltage protection
- Hyper heating performance offers 100% heating capacity at 5 deg F and 75% heating capacity at-13 deg F
