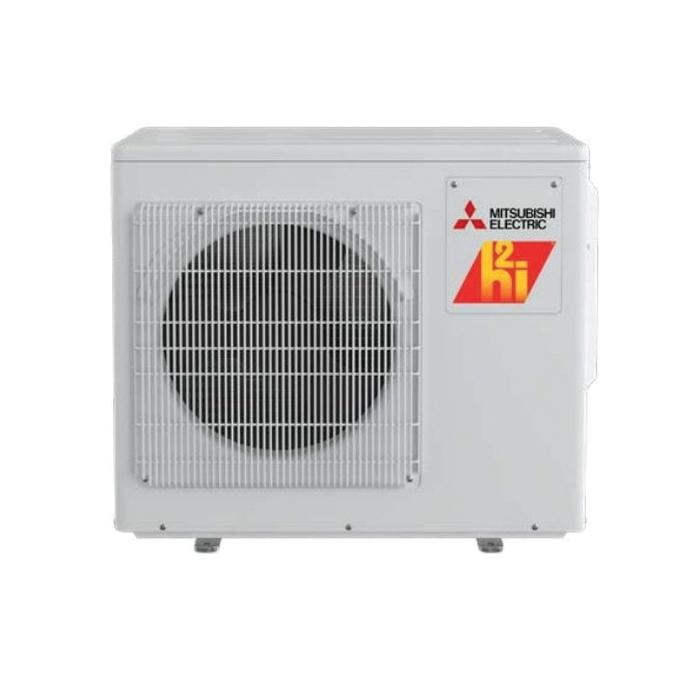

Mitsubishi Electric Trane® MXZ-2D20NLHZ-U1 Outdoor Hyper Heat Pump Unit, 208/230 V, 21.7 A, 20000 Btu/hr Cooling
Mitsubishi Electric Trane® MXZ-2D20NLHZ-U1 Outdoor Hyper Heat Pump Unit, 208/230 V, 21.7 A, 20000 Btu/hr Cooling
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388326
MPN: MXZ-2D20NLHZ
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 21.7 A |
| Color | : | Ivory |
| Compressor Type | : | Twin Rotary |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 20000 Btu/hr |
| Cooling CFM Rating | : | 2119 cfm |
| Cooling Operating Temperature | : | 14 to 115 deg F |
| Cooling Sound Level | : | 51 dBA |
| EER Rating | : | 13.5 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 38 A |
| HSPF Rating | : | 10 |
| Heating BTU Rating | : | 25500 Btu/hr |
| Heating CFM Rating | : | 2228 cfm |
| Heating Operating Temperature | : | 65 to 75 deg F |
| Heating Sound Level | : | 53 dBA |
| Liquid Line Size | : | 1/4 in |
| Overall Height | : | 31-11/32 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-11/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 88 W |
| Refrigerant Type | : | R-454B |
| SEER Rating | : | 19.3 |
| Suction Line Size | : | 3/8 in |
| Voltage Rating | : | 208/230 V |
Mitsubishi Electric Trane® Outdoor Hyper Heat Pump Unit, 208/230 V, 21.7 A, 88 W, 60 Hz, 1 ph, 25500 Btu/hr Heating, 20000 Btu/hr Cooling, 2228 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13.5 EER Rating, 19.3 SEER, 10 HSPF, Flared Connection, Twin Rotary Compressor, R-454B Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 38 A Fuse Rating, 53 dBA Heating Sound Level, 51 dBA Cooling Sound Level, Ivory, 65 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 13 in Overall Length, 37-11/32 in Overall Width, 31-11/32 in Overall Height
- Thermal Differential 1degF
- Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing)
- Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet.
- INVERTER-driven compressor: An inverter-driven compressor generates the precise capacity needed to maintain a temperature set point.
- Hyper-Heating INVERTER®: Hyper-heating performance offers 100% heating capacity at 5degF and 75% heating capacity at -13degF
- High pressure protection
- Fan motor overheating/voltage protection
- Compressor thermal protection
- Compressor overcurrent detection
- Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series)
- Built-in base pan heater
