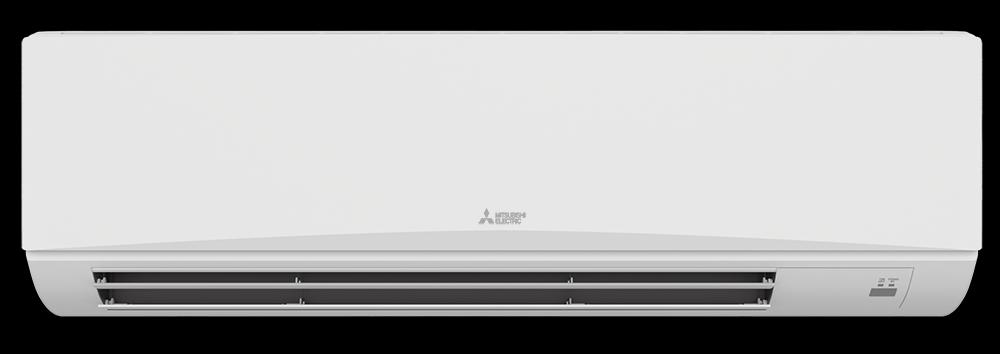

Mitsubishi Electric Trane® MSZ-GS12NA-U1 12,000 Btu/hr Ductless Wall-Mounted Indoor Unit, 381 CFM, R-410A, 208/230V
Mitsubishi Electric Trane® MSZ-GS12NA-U1 12,000 Btu/hr Ductless Wall-Mounted Indoor Unit, 381 CFM, R-410A, 208/230V
Manufacturer: Mitsubishi Electric Trane HVAC US LLC
Brand: Mitsubishi Electric Trane®
Part #: 388203
MPN: MSZ-GS12NA-U1
Customer Part #:
Min. Order Qty: 1
Login for Availability
| BTU Cooling Rating | : | 12,000 Btu/hr |
| BTU Heating Rating | : | 14,000 Btu/hr |
| CFM Airflow | : | 134 cfm~160 cfm~222 cfm~307 cfm~381 cfm |
| Depth | : | 11.63 in |
| Height | : | 9.13 in |
| Installation / Mounting Type | : | Wall |
| Liquid Line Size | : | 1/4 in |
| Model Number | : | MSZ-GS |
| Motor Type | : | ECM |
| Number of Speeds | : | 5 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Product Family | : | MSZ-GS-NA Series |
| Product Type | : | Wall-Unit |
| Refrigerant Type | : | R-410A |
| Sound Level | : | 19 dBA~22 dBA~30 dBA~37 dBA~45 dBA |
| Suction Line Size | : | 3/8 in |
| Tonnage | : | 1.0 Ton |
| Voltage Rating | : | 208/230 V |
| Width | : | 31.44 in |
Mitsubishi Electric Mini-Split-Type Air Conditioner Indoor Unit, Model: MSZ-GS, 208/230 V, 60 Hz, 1 ph, 12000 Btu/hr, 134 to 390 cfm CFM Rating, 19 dB, 22 dB, 30 dB, 37 dB, 45 dB, Wall Mount, Munsell, 11-5/8 in Overall Length, 31-7/16 in Overall Width, 9-1/8 in Overall Height, Additional Information: 470 rpm Quite, 530 rpm Low, 670 rpm Medium, 860 rpm High, 1020 rpm Super High Cooling, 470 rpm Quite, 530 rpm Low, 670 rpm Medium, 860 rpm High, 1040 rpm Super High Heating
