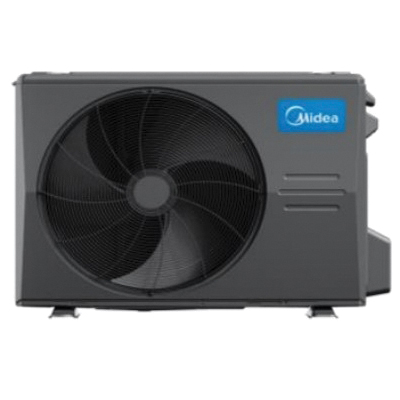

Midea® MO1BE-H24B-2A 24,000 Btu/hr Single-Zone Ductless Heat Pump Outdoor Unit, 9.5 HSPF2, R-454B, 208/230V
Midea® MO1BE-H24B-2A 24,000 Btu/hr Single-Zone Ductless Heat Pump Outdoor Unit, 9.5 HSPF2, R-454B, 208/230V
Manufacturer: Midea Group
Brand: Midea®
Part #: 438609
MPN: MO1BE-H24B-2A
Customer Part #:
Min. Order Qty: 1
Login for Availability
| BTU Cooling Rating | : | 24,000 Btu/hr |
| BTU Heating Rating | : | 26,000 Btu/hr |
| Compressor Type | : | Rotary |
| EER2 | : | 10.0 |
| HSPF2 | : | 9.5 |
| Liquid Line Size | : | 3/8 in |
| Model Number | : | MO1BE |
| Number of Stages | : | Variable |
| Number of Zones | : | 1 |
| Package Quantity | : | 1 |
| Phase | : | 1 ph |
| Product Family | : | EVOX |
| Product Type | : | Single-Zone |
| Refrigerant Type | : | R-454B |
| Sound Level | : | 60.0 dBA |
| Suction Line Size | : | 3/4 in |
| Tonnage | : | 2.0 Ton |
| Voltage Rating | : | 208/230 V |
Midea® Heat Pump, EVOX Series, Model: MO1BE, 208/230 V, 19 A, 60 Hz, 1 ph Phase, 26000 Btu/hr Heating, 24000 Btu/hr Cooling, 1766 cfm Cooling CFM Rating, Connection Type: Flared, Rotary Compressor, R-454B Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 20 A Fuse Rating, Inverter Drive, Tonnage: 2 ton, 60 dBA Cooling Sound Level, -13 to 75 deg F Heating Operating Temperature, -13 to 122 deg F Cooling Operating Temperature, 35 in Overall Length, 13-1/2 in Overall Width, 26-1/2 in Overall Height, Additional Information: 10 EER2, 9.5 HSPF2-4
