| BTU Cooling Rating | : | 36000 Btu/hr |
| CFM Airflow | : | 1236~1148~1060~971~971 cfm |
| Compatibility | : | Single Zone |
| Equipment Rating | : | Standard Heat |
| Model Number | : | MAUSE |
| Number of Speeds | : | 5 |
| Phase | : | 1 |
| Product Type | : | Air Handler |
| Refrigerant Type | : | R-454B |
| Series | : | EVOX G3 |
| Sound Level | : | 50~50~48~32~32 dBA |
| Tonnage | : | 3 ton |
| Voltage Rating | : | 115/208/230 V |

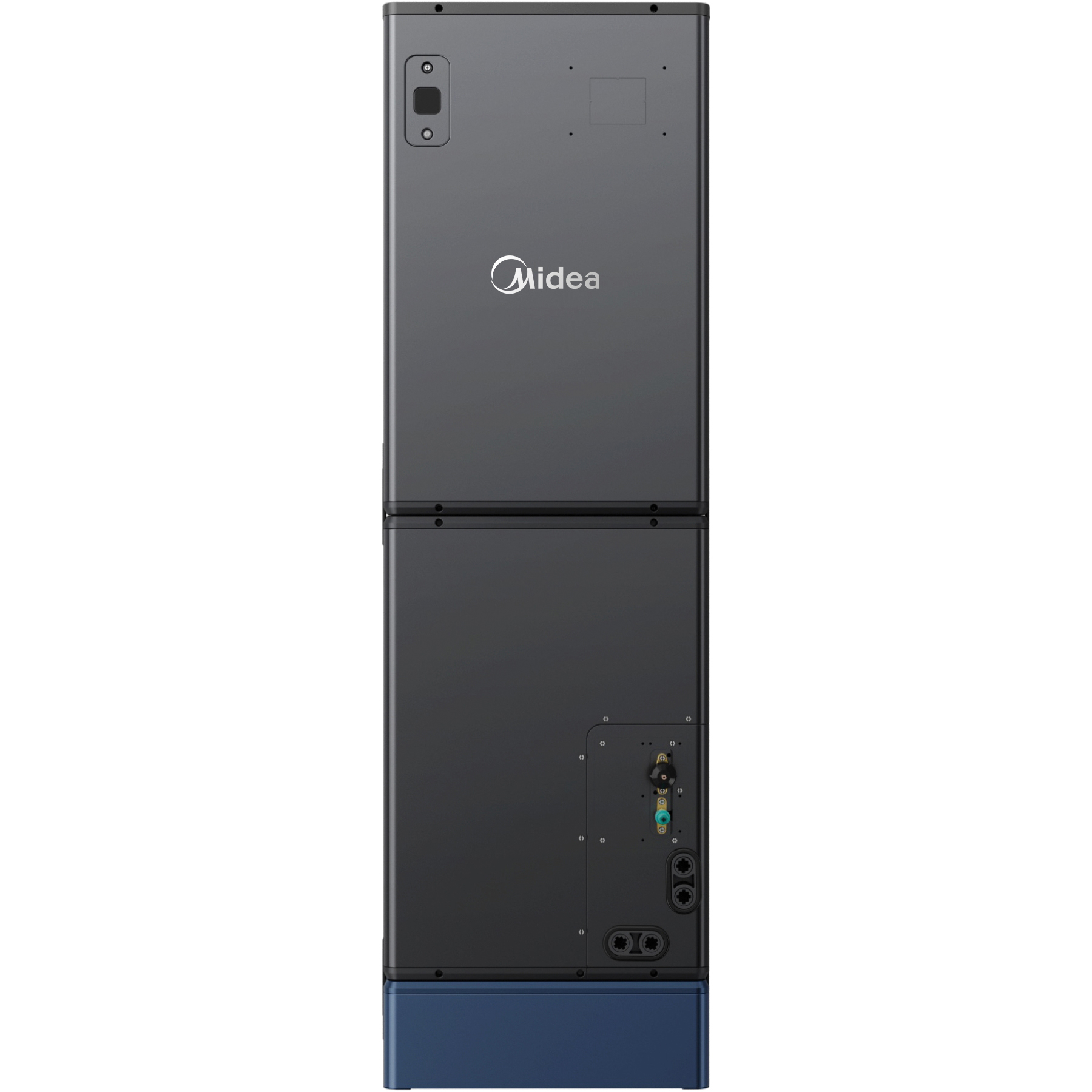

Midea® Air Handler, EVOX G3 Series, Model: MAUSE, 36000 Btu/hr, 115/208/230 V, 60 Hz, 1 ph Phase, 1236/1148/1060/971/971 cfm, Downflow, Horizontal Left, Horizontal Right, Low Boy (To Return/Supply), Upflow, R-454B Refrigerant, 50/50/48/32/32 dBA Sound Level, 3/8 in Liquid Line, 3/4 in Suction Line, ECM Motor, 58-1/8 in H x 17-1/2 in W x 21-1/2 in D, Additional Information: 12.5 EER2, 19 SEER2
