Mars 83904 Furnace/Air Handler Surge Protector, 120 V, 10 kA Short Circuit Rating, 1-4/5" Overall Depth, 2-9/10" Overall Width, 4-1/2" Overall Length, Gray
Mars 83904 Furnace/Air Handler Surge Protector, 120 V, 10 kA Short Circuit Rating, 1-4/5" Overall Depth, 2-9/10" Overall Width, 4-1/2" Overall Length, Gray
Manufacturer: Mars
Brand: Mars®
Part #: 384350
MPN: 83904
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 10000 A |
| Color | : | Gray |
| Connection Type | : | 8 in 12 AWG Lead |
| Enclosure Type | : | NEMA 2 |
| Mounting Type | : | Threaded Nipple |
| Overall Depth | : | 1-4/5 " |
| Overall Length | : | 4-1/2 " |
| Overall Width | : | 2-9/10 " |
| Short Circuit Rating | : | 10 kA |
| Suitable For Use With | : | 120V Ductless Systems; Furnace & Air Handlers; Inverter Boards; ECM Motors; Control Boards; Transformers; Relays; Sensors |
| Voltage Rating | : | 120 V |

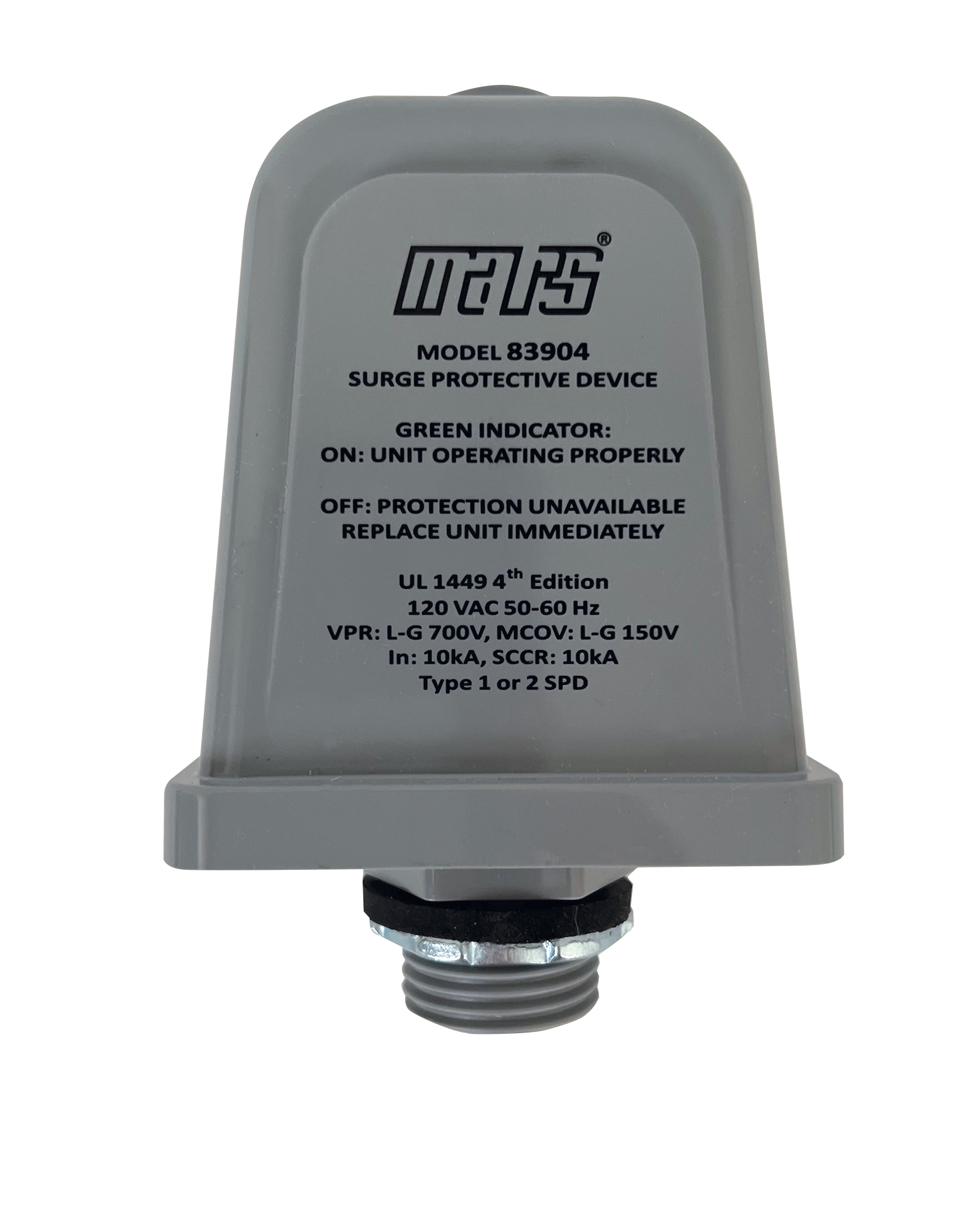

The MARS 83904 SPD is designed specifically for 120V furnace and air handler applications. The furnace and air handler contain components that must be protected from surges such as, ECM motors, Control Boards, Transformers. The MARS Surge utilizes thermally protected MOV technology for safe and reliable protection of equipment. The 120V Surge Device is easy to install with only 2 wires to connect.
Mars Furnace/Air Handler Surge Protector, 120 V, 10 kA Short Circuit Rating, 1-4/5" Overall Depth, 2-9/10" Overall Width, 4-1/2" Overall Length, Gray
- Provides surge protection specifically for 120V furnace and air handler applications.
- Features thermally protected MOV (Metal Oxide Varistor) technology for safe and reliable operation.
- Easy 2-wire installation with pre-stripped leads, designed to fit standard 1/2" knockouts.
- Green LED indicator confirms the device's operational status.
- UL 1449 4th Edition listed as a Type 1 or Type 2 Surge Protective Device (SPD).
- Offers a Short Circuit Current Rating (SCCR) of 10 kA.
- Includes a 3-year manufacturer warranty and a $7,500 connected equipment warranty.
- Compatible With: 120V Furnaces, Air Handlers, Ductless Systems, ECM Motors, Control Boards, Transformers, Relays, and Sensors.
