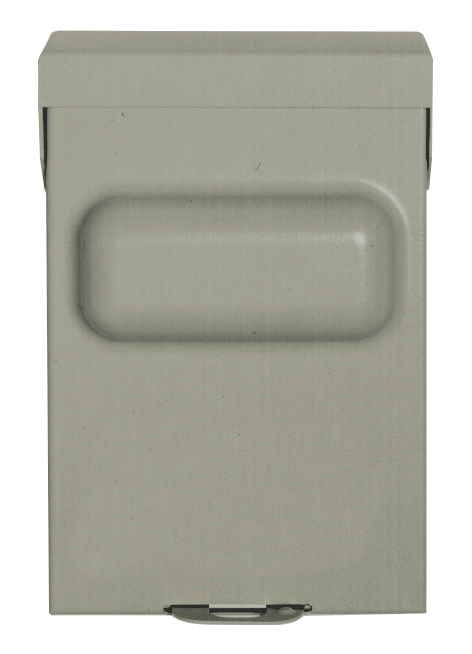

Mars 833 Series 83335 Non-Fused AC Disconnect, 60 A, 240 VAC, Non-Fusible, NEMA 3R, Surface Mount, Galvanized Steel, Galvanized, Electro-Deposition Finish
Mars 833 Series 83335 Non-Fused AC Disconnect, 60 A, 240 VAC, Non-Fusible, NEMA 3R, Surface Mount, Galvanized Steel, Galvanized, Electro-Deposition Finish
| Additional Information | : | 2-Pole, Top Open, Single Phase |
| Amperage Rating | : | 60 A |
| Enclosure Type | : | NEMA 3R |
| Fusible/Non-Fusible | : | Non-Fusible |
| Housing Color | : | Gray |
| Housing Finish | : | Galvanized, Electro-deposition |
| Housing Material | : | Galvanized Steel |
| Mounting Type | : | Surface Mount |
| Overall Depth | : | 2.13 " |
| Overall Length | : | 7-3/10 " |
| Overall Width | : | 5 " |
| Series | : | 833 Series |
| Suitable For Use With | : | HVAC/R Equipment |
| Voltage Rating | : | 240 VAC |
This MARS 833 Series disconnect provides a crucial safety feature, offering a readily accessible means to disconnect power for air conditioning or refrigeration equipment as required by code. It is a non-fusible unit designed for single-phase, 240 VAC applications up to 60 amps.Housed in a durable, NEMA 3R rated galvanized steel enclosure with an electro-deposition finish, this disconnect switch is built to withstand outdoor conditions and resist corrosion. The top-opening design allows for easy access.
Mars Non-Fused AC Disconnect, Model: 833 Series, 60 A, 240 VAC, Non-Fusible, NEMA 3R, Surface Mount, Galvanized Steel, Galvanized, Electro-Deposition Finish, Gray, 5" Overall Width, 2.13" Overall Depth, 7-3/10" H Overall Length
- Provides a non-fusible, single-phase disconnecting means rated for 60A, 240 VAC.
- Housed in a durable, NEMA 3R rated galvanized steel enclosure for outdoor use.
- Features a corrosion-resistant electro-deposition finish for enhanced longevity.
- Top-opening door with pullout mechanism allows for easy access.
- Includes multiple knockouts (1/2", 3/4", 1") for versatile wiring configurations.
- UL and cUL listed, ensuring safety and code compliance.
- Suitable for use with air conditioning and refrigeration equipment.
