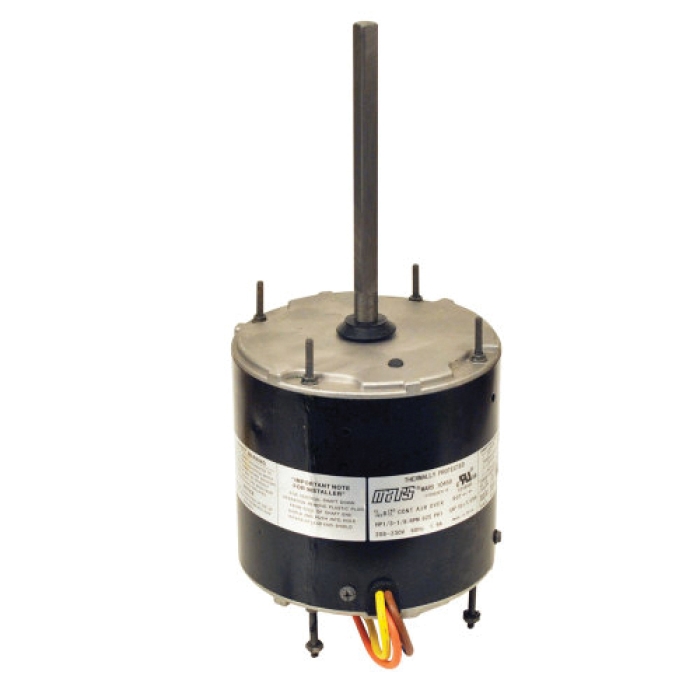

Mars® 10459 Condenser Fan Motor, 208 to 230 VAC, 1.9 A, 1/8 to 1/3 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
Mars® 10459 Condenser Fan Motor, 208 to 230 VAC, 1.9 A, 1/8 to 1/3 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz, 48 Frame
Manufacturer: Mars
Brand: Mars®
Part #: 381874
MPN: 10459
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 1.9 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.5 in Dia x 11.98 in L |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/8 to 1/3 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Totally Enclosed Air Over |
| Mounting Type | : | Band, Through-Bolt |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 6-1/2 in L |
| Speed Rating | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 VAC |
Mars® Condenser Fan Motor, 208 to 230 VAC, 1.9 A, 1/8 to 1/3 hp, 825 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 6-1/2 in L Shaft, Reversible Rotation, 1 Speed, Ball Bearing, Band, Through-Bolt Mounting, B Insulation Class, 60 deg C, 5.5 in Dia x 11.98 in L
- Capacitor 10 uF at 370 VAC
- Thermal overload protection
- Water slinger on shaft
- Rheem® mounting holes with screws installed
