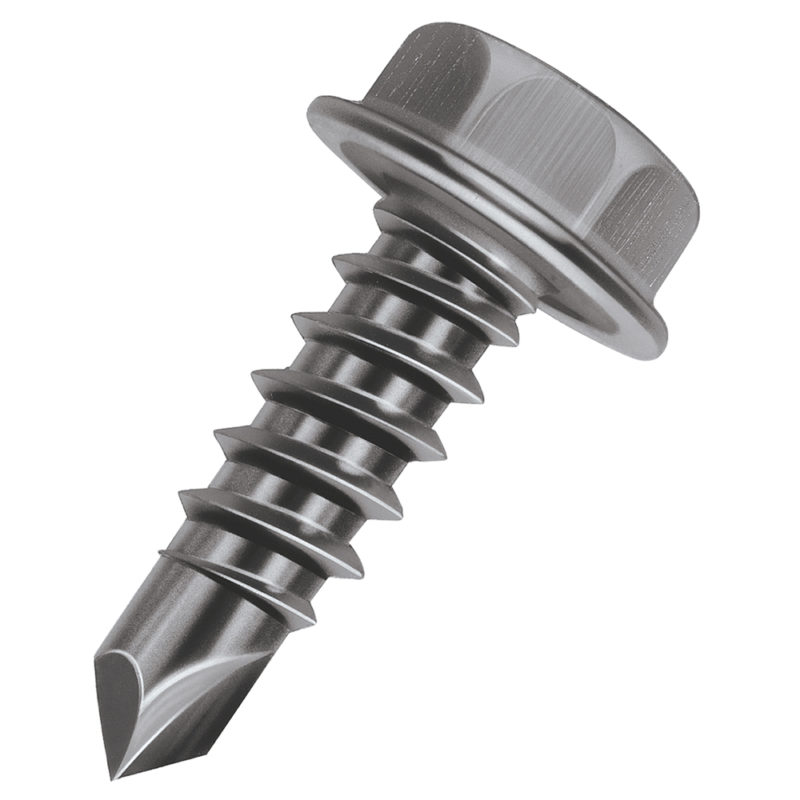

Malco Bit-Tip BT131T Drill & Tap Screw, #8-18, 1/2" Overall Length, Self-Drilling / Self-Tapping, Hex, 1/4" Drive Size, Hex Washer, 1/4" Head Size
Malco Bit-Tip BT131T Drill & Tap Screw, #8-18, 1/2" Overall Length, Self-Drilling / Self-Tapping, Hex, 1/4" Drive Size, Hex Washer, 1/4" Head Size
| Additional Information | : | Tub Packaging, 0.035 to 0.1 in THK Material, 1575 lb Tensile Strength, 42 in-lb Torsional Strength, #2 Point Size |
| Drive Size | : | 1/4 " |
| Drive Type | : | Hex |
| Finish | : | Zinc Plated, Heat Treated |
| Head Size | : | 1/4 " |
| Head Type | : | Hex Washer |
| Material | : | Steel |
| Model | : | BT131T |
| Overall Length | : | 1/2 " |
| Point Type | : | Self-Drilling |
| Series | : | Bit-Tip |
| Thread Length | : | 1/2 " |
| Thread Size | : | #8-18 |
| Thread Type | : | Self-Drilling / Self-Tapping |
Malco Bit-Tip® screws feature a unique drill and tap point that creates the optimal hole size for superior thread engagement and a secure fit. This design allows for one-step fastening, eliminating alignment issues and the need for separate drilling or tapping operations when working with materials like plywood, soft wood, drywall, or insulation attached to metal framing up to 0.100" thick.Constructed from high-quality, specially heat-treated steel and precision cold-forged for consistency, these versatile screws offer a reliable alternative to rivets, nuts and bolts, or spot welds. They can be installed efficiently using a standard 2500 RPM screw gun equipped with a depth locator, reducing the need for extra tools like drill bits or taps.
Malco Drill & Tap Screw, Model: Bit-Tip, #8-18, 1/2" Overall Length, Self-Drilling / Self-Tapping, Hex, 1/4" Drive Size, Hex Washer, 1/4" Head Size, Steel, Zinc Plated, Heat Treated, 1/2" Thread Length
- Drills and taps its own hole in one operation for optimal thread engagement and fit.
- Made from strong, specially heat-treated steel for reliable performance.
- Features a 1/4" hex washer head for secure driving and a large bearing surface.
- Suitable for fastening various materials to metal framing (0.035" - 0.100" thick).
- Installs efficiently using a standard 2500 RPM screw gun with a depth locator.
