M&M Manufacturing #800 DucTite Wye 80012106 Duct Wye, 12" x 10" x 6" (Large End x Opposite End x Branch) Fitting Size, 28 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin
M&M Manufacturing #800 DucTite Wye 80012106 Duct Wye, 12" x 10" x 6" (Large End x Opposite End x Branch) Fitting Size, 28 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin
| Color | : | Silver |
| Connection Type | : | Tapered/Crimped, Stop Bead (Flex Duct) |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Fitting Size | : | 12" x 10" x 6" (Large End x Opposite End x Branch) |
| Gauge | : | 28 ga |
| Material | : | ASTM-A653 CS B Galvanized Steel |
| Mounting Type | : | In-Line |
| Series | : | #800 DucTite Wye |
| Shape | : | Round Lateral Wye |

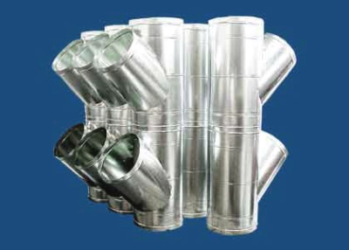

The #800 DucTite® Wye is a M&M Factory Sealed HVAC fitting available in many popular sizes. DucTite Wyes work equally well for rigid snap lock pipe or with flexible duct.The streamlined design provides improved air flow with less turbulence due to the shallower transition angle.Wye branch is Factory Sealed with a UL 181 approved mastic sealer. Branch is spot welded for strong mechanical fastening.
M&M Manufacturing Duct Wye, Model: #800 DucTite Wye, 12" x 10" x 6" (Large End x Opposite End x Branch) Fitting Size, 28 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin, In-Line, Silver
- Factory sealed with UL 181 approved mastic sealer for substantially airtight joints.
- Compatible with both rigid snap lock pipe and flexible duct.
- Streamlined 45-degree branch angle design improves airflow and reduces turbulence.
- Constructed from durable 28 gauge ASTM-A653 CS B galvanized steel.
- Spot-welded branch ensures strong mechanical fastening.
- Conforms to 2009 IRC M1601.4.1 requirements for airtight seams and joints.
- Dimensions: 12" inlet, 10" outlet, 6" branch.
