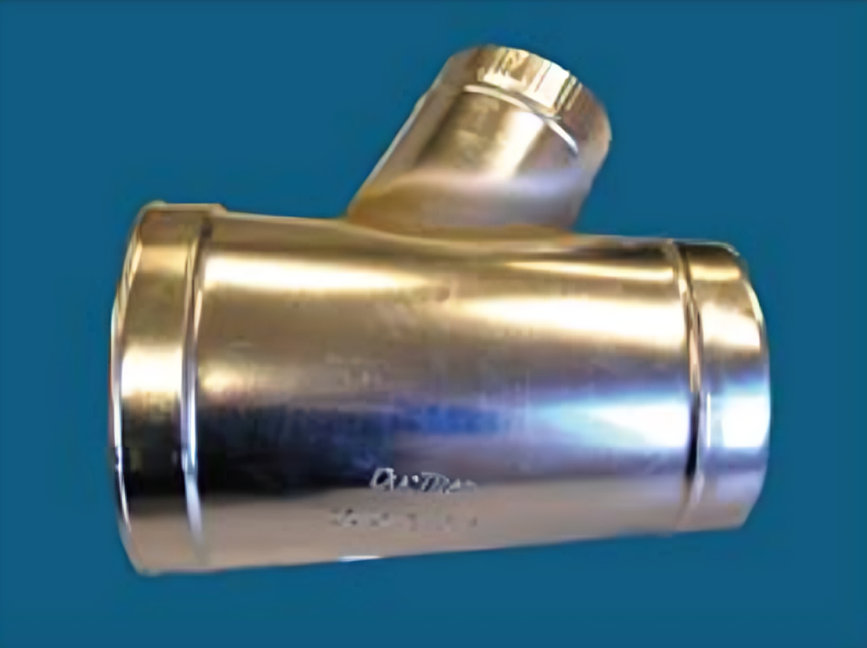

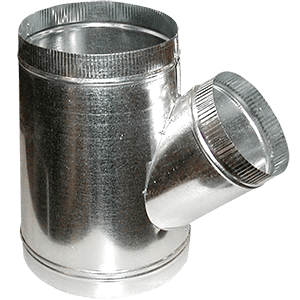

M&M Manufacturing #800 DucTite Wye 8001088 Duct Wye, 10" x 8" x 8" (Large End x Opposite End x Branch) Fitting Size, 30 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin
M&M Manufacturing #800 DucTite Wye 8001088 Duct Wye, 10" x 8" x 8" (Large End x Opposite End x Branch) Fitting Size, 30 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin
| Color | : | Silver |
| Connection Type | : | Tapered/Crimped, Stop Bead (Flex Duct) |
| Domestic/Import | : | Domestic |
| Finish | : | Galvanized |
| Fitting Size | : | 10" x 8" x 8" (Large End x Opposite End x Branch) |
| Gauge | : | 30 ga |
| Material | : | ASTM-A653 CS B Galvanized Steel |
| Mounting Type | : | In-Line |
| Series | : | #800 DucTite Wye |
| Shape | : | Round Lateral Wye |
The #800 DucTite® Wye is a M&M Factory Sealed HVAC fitting available in many popular sizes. DucTite Wyes work equally well for rigid snap lock pipe or with flexible duct.The streamlined design provides improved air flow with less turbulence due to the shallower transition angle.Wye branch is Factory Sealed with a UL 181 approved mastic sealer. Branch is spot welded for strong mechanical fastening.
M&M Manufacturing Duct Wye, Model: #800 DucTite Wye, 10" x 8" x 8" (Large End x Opposite End x Branch) Fitting Size, 30 Ga, Round Lateral Wye, Tapered/Crimped, Stop Bead (Flex Duct) Connection Type, ASTM-A653 CS B Galvanized Steel, Galvanized, Domestic Origin, In-Line, Silver
- Factory Sealed with UL 181 approved mastic for a substantially airtight connection per 2009 IRC M1601.4.1.
- Constructed from durable 30 gauge ASTM-A653 CS B galvanized steel.
- Streamlined 45-degree lateral wye design improves airflow and reduces turbulence.
- Suitable for connecting both rigid snap-lock pipe and flexible duct.
- Features spot-welded branch construction for enhanced strength and durability.
- Embossed DucTite logo verifies factory sealing, eliminating the need for additional tape or sealant.
