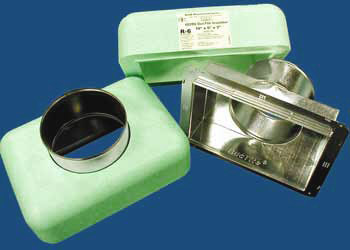

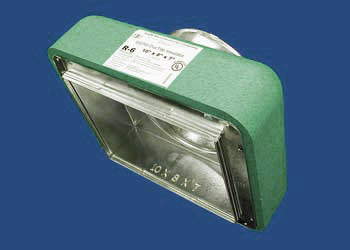

M&M Manufacturing 602R6 DucTite 602R610109 Insulated Register Box, 10" Length, 10" Width, For 9" Pipe, R-6, Round, Galvanized Steel (Box), Expanded Polystyrene (Insulation), 30 Ga
M&M Manufacturing 602R6 DucTite 602R610109 Insulated Register Box, 10" Length, 10" Width, For 9" Pipe, R-6, Round, Galvanized Steel (Box), Expanded Polystyrene (Insulation), 30 Ga
| Angle | : | 0 degrees |
| Color | : | Silver (Box), Green (Insulation) |
| Finish | : | Galvanized |
| Gauge | : | 30 ga |
| Length | : | 10 " |
| Material Standard | : | ICC-ES ESR-1228, UL Classified, IRC M1601.3.1 / M601.4.1 |
| Material | : | Galvanized Steel (Box), Expanded Polystyrene (Insulation) |
| Model | : | 602R610109 |
| Pipe Size | : | 9 " |
| R-Value | : | 6 |
| Series | : | 602R6 DucTite |
| Size | : | 9" Diam (Collar) x 10" L x 10" W |
| Vent Duct Shape | : | Round |
| Width | : | 10 " |
602R6 DucTite® Register Box w/Snap Rail Flange conforms to 2009 IRC M601.4.1 which requires joints and seams to be “Substantially Airtightâ€. #602R6 DucTite® Register Boxes are insulated at the plant with a true R-6 DucTite® Insulator of EPS. DucTite® is a registered trademark of M&M Manufacturing Company.
M&M Manufacturing Insulated Register Box, Model: 602R6 DucTite, 10" Length, 10" Width, For 9" Pipe, R-6, Round, Galvanized Steel (Box), Expanded Polystyrene (Insulation), 30 Ga, ICC-ES ESR-1228, UL Classified, IRC M1601.3.1 / M601.4.1, 0 Degrees Angle, Galvanized, Silver (Box), Green (Insulation)
- Features a factory-installed R-6 DucTite® Expanded Polystyrene (EPS) insulator.
- Constructed from durable galvanized steel.
- Includes a snap rail flange for easier installation.
- Meets 2009 IRC M1601.4.1 requirements for substantially airtight seams and joints.
- EPS insulation eliminates exposed fibers in the airstream and acts as a closed-cell vapor barrier.
- No additional taping or sealing is required, reducing installation time and labor costs.
- UL Classified and meets ICC-ES ESR-1228 standards.
- EPS insulation is made from 100% recyclable material.
