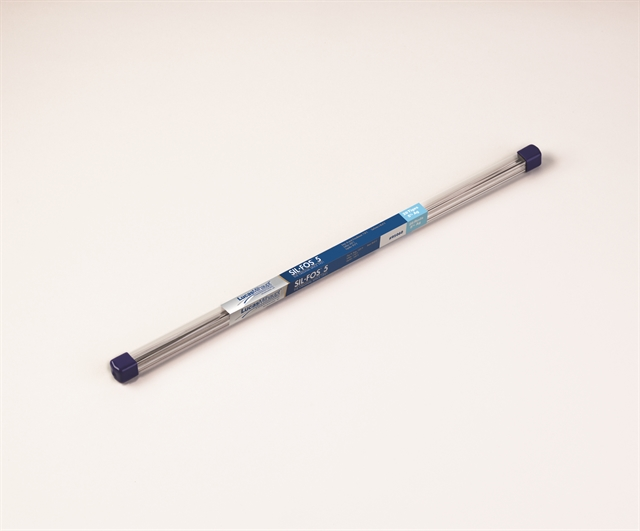

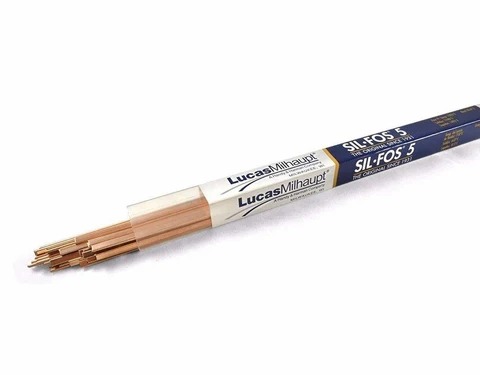

Lucas-Milhaupt Sil-Fos 5 95060 Brazing Rod, For Copper To Copper (Self-Fluxing), Copper To Brass (Requires Flux), Copper To Bronze (Requires Flux), Silver, Copper, Phosphorus, Other Elements, 1/20" (Thickness) Diameter, 20" Length, 1190-1325 °F (Solidus - Liquidus), Brazed Butt Joints: 30,000 - 35,000 PSI (Copper), 35,000 - 40,000 PSI (Brass), 35,000 - 40,000 PSI (Nickel-Silver) Tensile Strength, AWS Bcup-3
Lucas-Milhaupt Sil-Fos 5 95060 Brazing Rod, For Copper To Copper (Self-Fluxing), Copper To Brass (Requires Flux), Copper To Bronze (Requires Flux), Silver, Copper, Phosphorus, Other Elements, 1/20" (Thickness) Diameter, 20" Length, 1190-1325 °F (Solidus - Liquidus), Brazed Butt Joints: 30,000 - 35,000 PSI (Copper), 35,000 - 40,000 PSI (Brass), 35,000 - 40,000 PSI (Nickel-Silver) Tensile Strength, AWS Bcup-3
| Composition | : | Silver, Copper, Phosphorus, Other Elements |
| Container Size | : | 28 pieces (1 lb) |
| Container Type | : | Tube |
| Diameter | : | 1/20" (Thickness) |
| For Joining Material | : | Copper To Copper (Self-Fluxing), Copper To Brass (Requires Flux), Copper To Bronze (Requires Flux) |
| Length | : | 20 " |
| Material Code | : | AWS BCuP-3 |
| Series | : | Sil-Fos 5 |
| Shape | : | Rod |
| Temperature Rating | : | 1190-1325 °F (Solidus - Liquidus) |
| Tensile Strength | : | Brazed Butt Joints: 30,000 - 35,000 PSI (Copper), 35,000 - 40,000 PSI (Brass), 35,000 - 40,000 PSI (Nickel-Silver) |
Sil-Fos 5 is a silver-copper-phosphorus alloy developed primarily for copper-to-copper brazing, where its phosphorus content allows it to be self-fluxing. It can also be used to join brass or other nonferrous copper-base alloys with an appropriate flux (e.g., Handy Flux, Ultra Flux).This alloy serves as a more cost-effective alternative to higher silver content Ag-Cu-P alloys, although it may not penetrate deep joints as easily. It is widely used in HVAC/R applications such as refrigeration units, air conditioning apparatus, electrical conductors, and copper or brass pipe fittings.
Lucas-Milhaupt Brazing Rod, Model: Sil-Fos 5, For Copper To Copper (Self-Fluxing), Copper To Brass (Requires Flux), Copper To Bronze (Requires Flux), Silver, Copper, Phosphorus, Other Elements, 1/20" (Thickness) Diameter, 20" Length, 1190-1325 °F (Solidus - Liquidus), Brazed Butt Joints: 30,000 - 35,000 PSI (Copper), 35,000 - 40,000 PSI (Brass), 35,000 - 40,000 PSI (Nickel-Silver) Tensile Strength, AWS Bcup-3, 28 Pieces (1 lb) Container Size, Tube, Rod
- Composed of 5% Silver, 89% Copper, and 6% Phosphorus (AWS BCuP-3).
- Self-fluxing when joining copper-to-copper connections.
- Requires appropriate flux (like Handy Flux or Ultra Flux) when joining copper to brass or bronze.
- Offers a cost-effective brazing solution compared to alloys with higher silver content.
- Medium flow characteristics suitable for various joint types.
- Ideal for HVAC/R applications including refrigeration units, AC coils, and pipe fittings.
- Manufactured in the USA.
