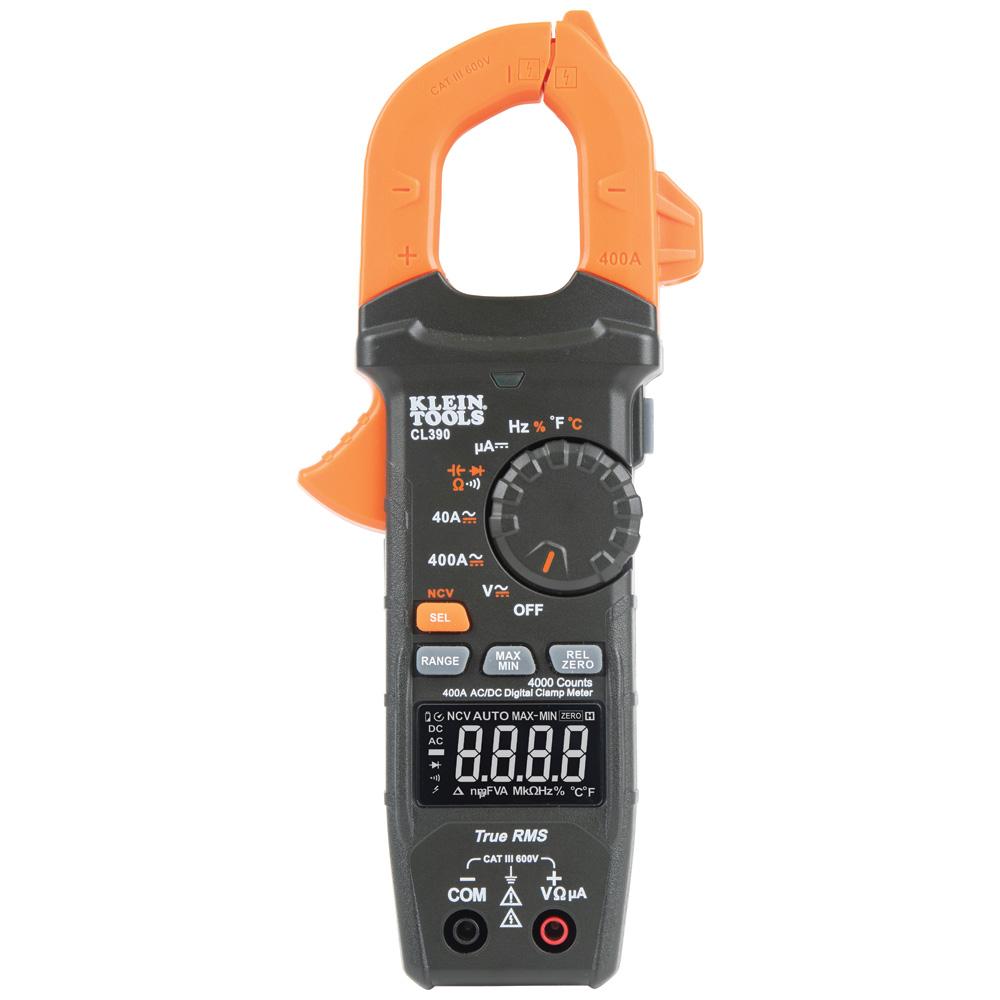

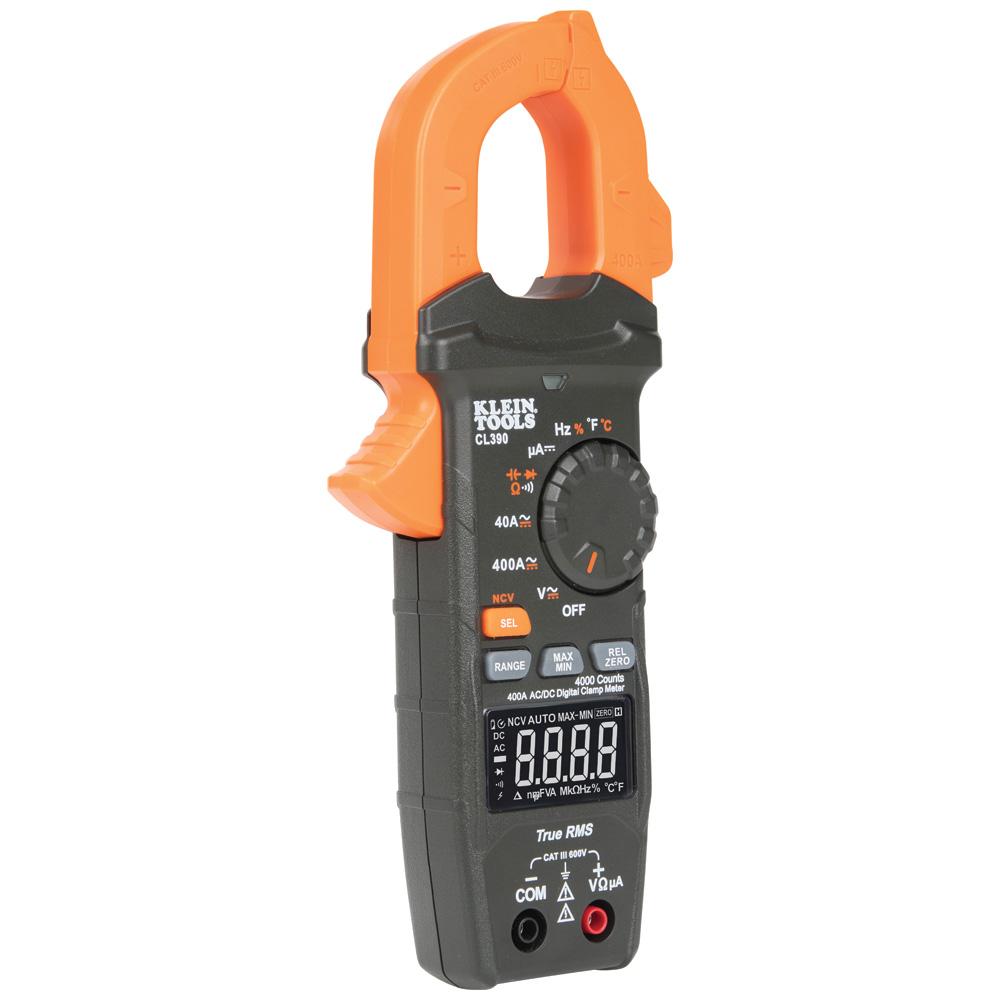

KLEIN TOOLS® CL390 AC/DC Digital TRMS Clamp Meter, 600 V, 400 A, 40 MOhm, 1.6 in Jaw
KLEIN TOOLS® CL390 AC/DC Digital TRMS Clamp Meter, 600 V, 400 A, 40 MOhm, 1.6 in Jaw
Manufacturer: Klein Tools, Inc
Brand: KLEIN TOOLS®
Part #: 385912
MPN: CL390
Customer Part #:
Min. Order Qty: 1
Login for Availability
Login for Price
| Amperage Rating | : | 400 A |
| Capacitance | : | 4000 uF |
| Counts | : | 4000 |
| Dimensions | : | 8.45 in L x 3.5 in W x 1.5 in H |
| Frequency Rating | : | 10 Hz to 60 kHz for 8 V to 220 VAC RMs |
| Jaw Capacity | : | 1.6 in |
| Material | : | ABS/Electronics |
| Operating Temperature | : | -40 to 1832 deg F |
| Resistance | : | 40 MOhm |
| Voltage Rating | : | 600 V |
KLEIN TOOLS® AC/DC Digital TRMS Clamp Meter, 600 V, 400 A, 40 MOhm Resistance, Jaw Capacity: 1.6 in, 4000 Counts, 10 Hz to 60 kHz for 8 V to 220 VAC RMs, -40 to 1832 deg F Operating, 4000 uF Capacitance, ABS/Electronics, 8.45 in L x 3.5 in W x 1.5 in H
- Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. No. 69445 or 69417) for hands-free operation
- Non-contact voltage tester integrated into the clamp jaw
- High visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
- Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
- Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC micro amps, capacitance, duty cycle, diode test and continuity via test leads and temperature with thermocouple
- Measures temperature with a K-type thermocouple probe
- Max/Min, Rel/Zero and Data Hold capability
- Auto power off after 10 min to conserve battery life
- Low battery indicator and easily accessible battery compartment
- Built to withstand a 6.6 ft drop
- CAT III 600 V, Class 2, double insulation safety-rating
- Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light industrial locations
