ICM Controls ICM530 ICM530 3-Phase SPD, 240 VAC (Delta), 120/208 VAC (Wye), 150 kA, 200 kA Short Circuit Rating, 20 kA Normal Discharge Current, 2-3/10" Overall Depth, 4-1/10" Overall Width, 4-3/10" Overall Length
ICM Controls ICM530 ICM530 3-Phase SPD, 240 VAC (Delta), 120/208 VAC (Wye), 150 kA, 200 kA Short Circuit Rating, 20 kA Normal Discharge Current, 2-3/10" Overall Depth, 4-1/10" Overall Width, 4-3/10" Overall Length
| Additional Information | : | 150 kA Maximum Surge Current, TFMOV Surge Protection, 50/60 Hz Frequency, -40 to 185 deg F Temperature Rating, NEMA 4X Enclosure |
| Color | : | White |
| Material | : | Plastic (NEMA Type 4X Enclosure) |
| Maximum Discharge Current | : | 150 kA |
| Normal Discharge Current | : | 20 kA |
| Overall Depth | : | 2-3/10 " |
| Overall Length | : | 4-3/10 " |
| Overall Width | : | 4-1/10 " |
| Series | : | ICM530 |
| Short Circuit Rating | : | 200 kA |
| Suitable For Use With | : | APPLIANCE / ELECTRICAL / HVAC/R / MARINE / POOL & SPA / RV |
| Voltage Rating | : | 240 VAC (Delta), 120/208 VAC (Wye) |

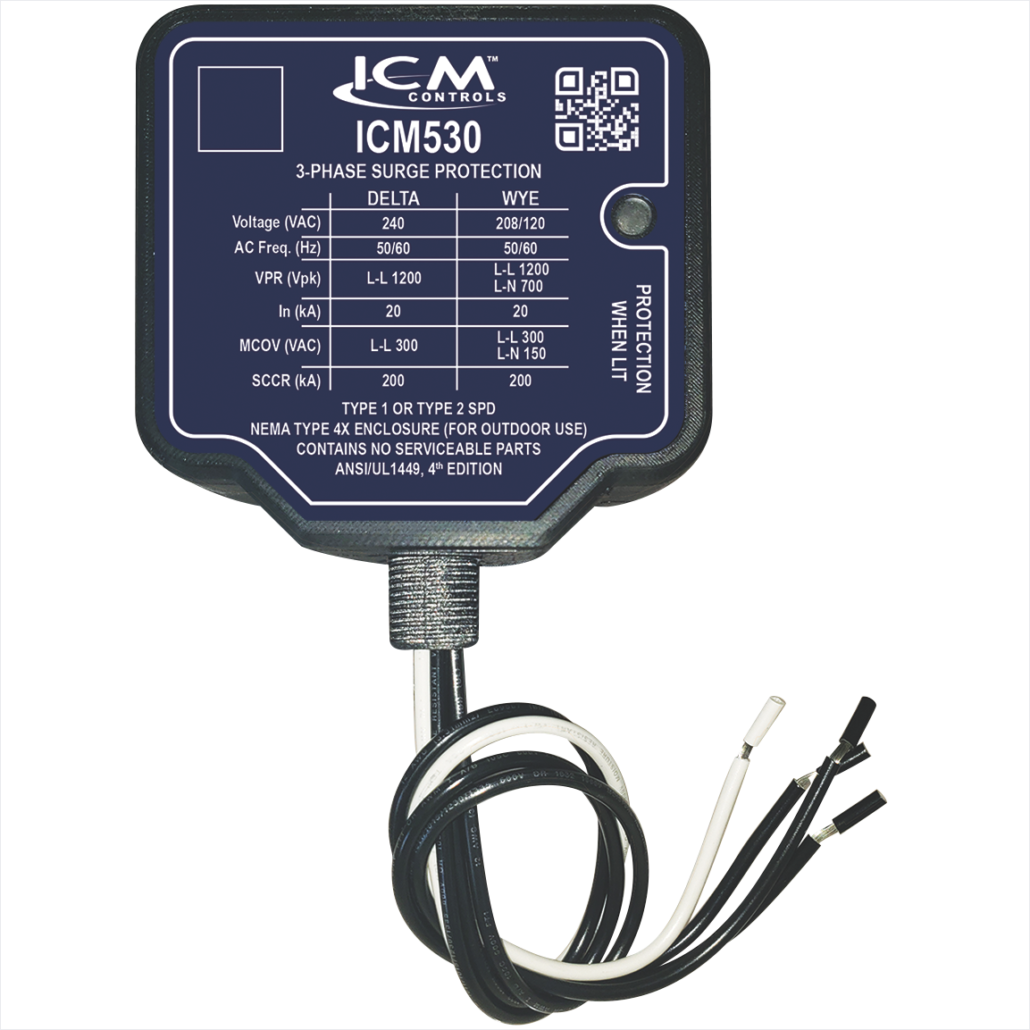

The ICM530 is a Type 1 and Type 2 three-phase surge protective device designed for 240 VAC Delta or 120/208 VAC Wye configurations. When a surge occurs, the device absorbs the surge up to its specified limits, protecting connected equipment. It incorporates thermally protected metal oxide varistor (TFMOV) technology, which safely disables the surge elements if a surge exceeds the thermal limits. A single green LED status light indicates operational status. This surge protector can be installed as a Type 1 or Type 2 device in both indoor and outdoor applications thanks to its NEMA 4X enclosure.
ICM Controls 3-Phase SPD, Model: ICM530, 240 VAC (Delta), 120/208 VAC (Wye), 150 kA, 200 kA Short Circuit Rating, 20 kA Normal Discharge Current, 2-3/10" Overall Depth, 4-1/10" Overall Width, 4-3/10" Overall Length, Plastic (NEMA Type 4X Enclosure), White
- Provides surge protection for 3-phase 240 VAC Delta or 120/208 VAC Wye systems.
- Features thermally protected metal oxide varistor (TFMOV) technology.
- Housed in a NEMA Type 4X watertight plastic enclosure suitable for indoor or outdoor use.
- Includes a green LED indicator for visual confirmation of protection status.
- UL Listed as a Type 1 or Type 2 Surge Protective Device (SPD).
- Offers a high Short Circuit Current Rating (SCCR) of 200 kA.
- Backed by a limited lifetime product warranty and a 3-year $10,000 connected equipment warranty.
