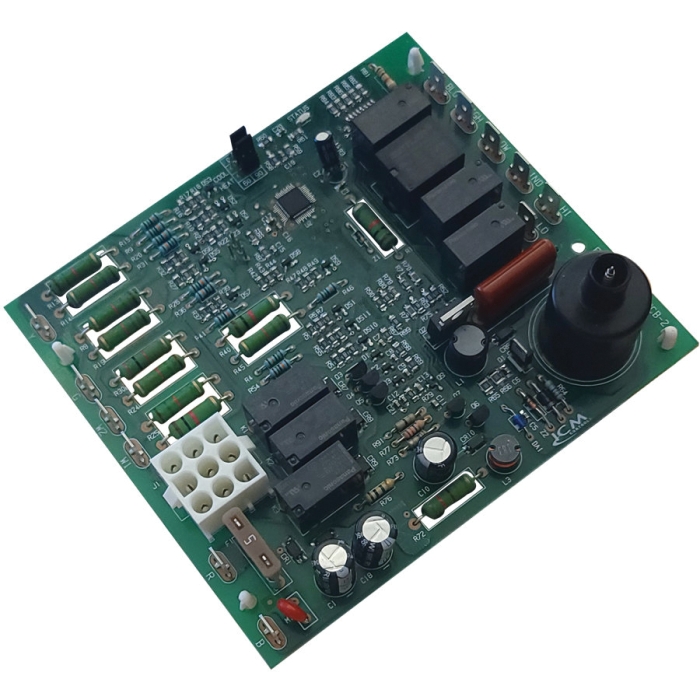

ICM™ ICM2915 Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth
ICM™ ICM2915 Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth
| Control Voltage | : | 18-30 V |
| Depth | : | 5-1/2 in |
| For Use With | : | Gas Furnaces |
| Frequency | : | 50/60 Hz |
| Function Type | : | Board |
| Height | : | 1-1/2 in |
| Product Type | : | Board |
| Product Weight | : | 0.38 lb |
| Voltage Rating | : | 230 V |
| Width | : | 4-3/4 in |
The ICM2915 is a form, fit, and functional replacements for the boards shown in the cross-reference section of this guide. The control boards are designed as automated gas ignition controls which monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits. Onboard diagnostics will indicate when a fault condition exists. In addition, the ICM2915 offers 2-stage low heat and high heat function for better efficiency.
ICM™ Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth, For Use With: Gas Furnaces, Board Function Type
- Controls blower motors, gas valve, & spark ignitor in sequence
- Protects against short cycling
- Selectable Heat/Cool blower off-delay time
- Flash codes from the onboard LED indicate specific problems for easier troubleshooting
- Repeated ignition failures or flame losses will disable heat operation for safety
- 2-stage low heat and high heat
