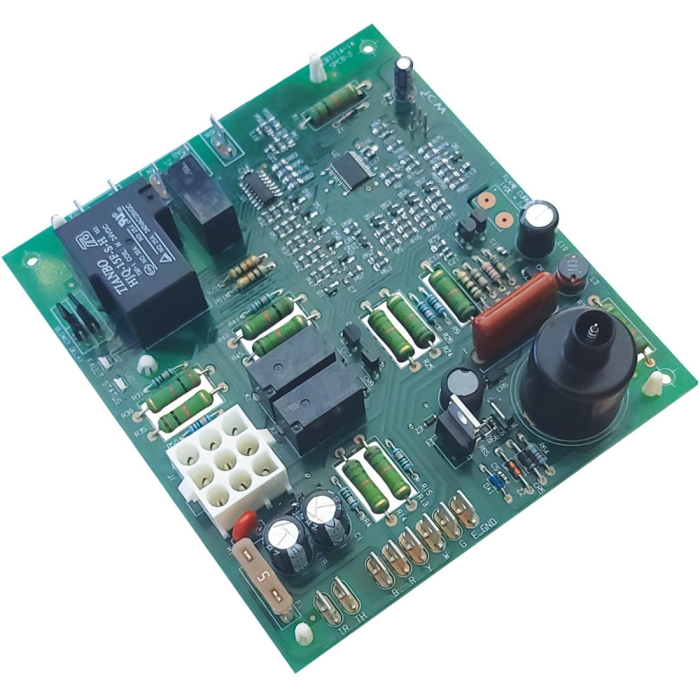

ICM™ ICM2913 Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth
ICM™ ICM2913 Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth
| Control Voltage | : | 18-30 V |
| Depth | : | 5-1/2 in |
| For Use With | : | Gas Furnaces |
| Frequency | : | 50/60 Hz |
| Function Type | : | Board |
| Height | : | 1-1/2 in |
| Product Type | : | Board |
| Product Weight | : | 0.38 lb |
| Voltage Rating | : | 230 V |
| Width | : | 4-3/4 in |
The ICM2913 is a form, fit, and functional replacement for the Trane Spark Ignition Control: D674711P01 shown in the cross-reference section of the guide. The control boards are designed as automated gas ignition controls that monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.
ICM™ Control Board, 230 V, 18-30 V Control, 50/60 Hz Frequency, 1-1/2 in Height, 4-3/4 in Width, 5-1/2 in Depth, For Use With: Gas Furnaces, Board Function Type
- Direct Spark Ignition (DSI) control board
- Microprocessor-based
- Monitors system timing, trial for ignition, system switches, flame sensing and lockout
- 100% lockout safety feature monitors for repeated over-temperature faults or flame losses and disables the heat operation for safety
- Continuously monitors the gas valve output
- Compatible with LP or natural gas
- LED indication for status and fault codes to aid in troubleshooting
- On board fuse
