| Amperage Rating | : | 1.5 A |
| Gas Type | : | Automated |
| Suitable For Use With | : | 23W5101/30W2501/69M0801/69M1501 Model Gas Furnaces |
| Temperature Rating | : | -40 to 176 deg F |
| Voltage Rating | : | 18-30 VAC |

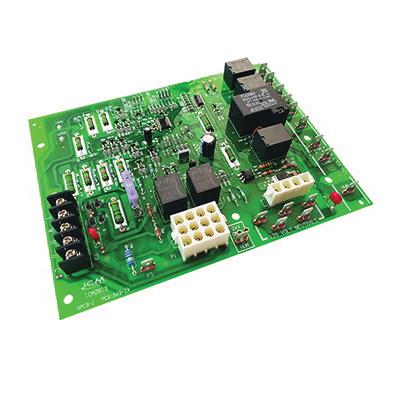

The ICM2813 is a form, fit and functional replacement for the Lennox SureLight® Series boards and white Rodgers equivalent. The ICM2813 automated gas ignition control board monitors the ignition sequence including the inducer, pressure switch, hot surface igniter, gas valve, flame sense and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits. Onboard diagnostics will indicate when a fault condition exists.
ICM™ Furnace Control Board, 18-30 VAC, 1.5 A, -40 to 176 deg F, Automated Gas, For Use With: 23W5101/30W2501/69M0801/69M1501 Model Gas Furnaces
- Controls the gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Monitors system pressure and limit switches
- Microprocessor based precision
- Diagnostic LED aid in testing and trouble shooting
