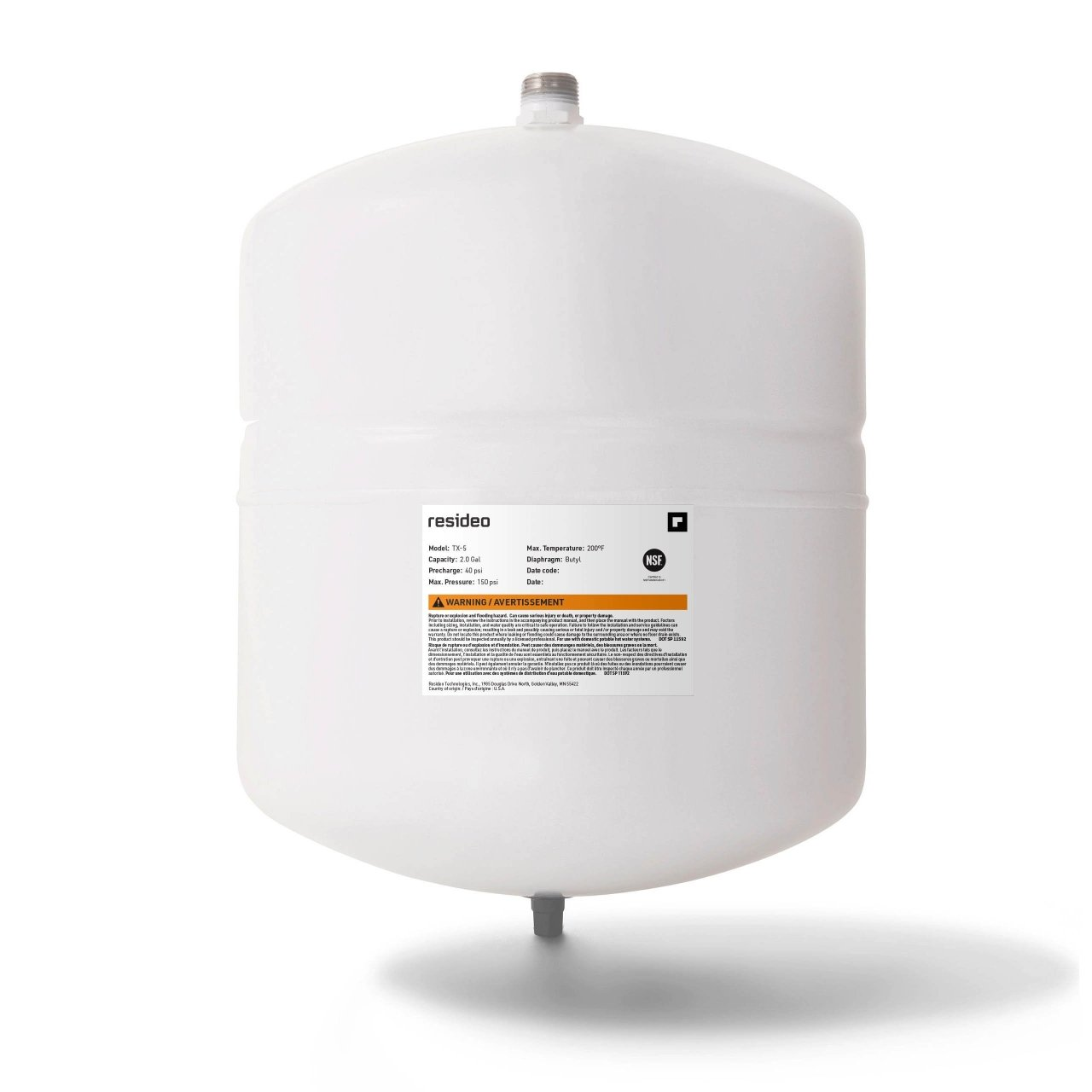

Resideo TX Series TX-5 Expansion Tank, 2 Gallons Capacity, MNPT Connection, 3/4" Connection Size, 150 PSI, 200 °F (Maximum) Temperature Rating, Butyl/EPDM Compound, Steel (Shell), Polypropylene (Liner), Brass (Connection)
Resideo TX Series TX-5 Expansion Tank, 2 Gallons Capacity, MNPT Connection, 3/4" Connection Size, 150 PSI, 200 °F (Maximum) Temperature Rating, Butyl/EPDM Compound, Steel (Shell), Polypropylene (Liner), Brass (Connection)
| Additional Information | : | Inlet/Outlet Connection: 3/4 Inch Male Threaded x 3/4 Inch Male Threaded|Tank Material: Steel|Tank Inner Lining: Polypropylene|Tank Dimensions: 8 Inch Diameter x 12-5/8 Inch Height|Tank Capacity: 2 Gallon|Diaphragm Type: Heavy Duty Butyl|Air Charge Capacity: 40 PSI |
| Air Charge Capacity | : | 40 PSI |
| Capacity | : | 2 gallons |
| Color | : | White |
| Connection Size | : | 3/4 " |
| Connection Type | : | MNPT |
| Diaphragm Material | : | Butyl/EPDM Compound |
| Diaphragm Type | : | Heavy Duty Butyl |
| Dimensions | : | 8" Diam x 12-5/8" H |
| Inlet/Outlet Connection | : | 3/4 Inch Male Threaded x 3/4 Inch Male Threaded |
| Material | : | Steel (Shell), Polypropylene (Liner), Brass (Connection) |
| Pressure Rating | : | 150 PSI |
| Series | : | TX Series |
| Specifications | : | Temperature Rating: 200 Deg F|Pressure Rating: 150 PSI |
| Tank Capacity | : | 2 Gallon |
| Tank Dimensions | : | 8 Inch Diameter x 12-5/8 Inch Height |
| Tank Inner Lining | : | Polypropylene |
| Tank Material | : | Steel |
| Temperature Rating | : | 200 °F (Maximum) |
| Type | : | Potable |
The Resideo Thermal Expansion Absorber is a pre-pressurized expansion tank featuring a heavy-duty butyl diaphragm. It is designed to control excess pressure buildup in potable hot water systems, effectively eliminating relief valve spillage, protecting fixtures, and extending the life of the water heater.Suitable for household and small commercial hot water heaters, its use helps save energy and reduces operating issues by preventing relief valve operation caused by excessive system pressure. The tank features a polypropylene liner, creating a 100% non-metallic and non-corrosive water reservoir.
Resideo Expansion Tank, Model: TX Series, 2 Gallons Capacity, MNPT Connection, 3/4" Connection Size, 150 PSI, 200 °F (Maximum) Temperature Rating, Butyl/EPDM Compound, Steel (Shell), Polypropylene (Liner), Brass (Connection), 8" Diam x 12-5/8" H Dimensions, White
- Heavy-duty butyl rubber diaphragm (FDA approved) isolates water from air.
- Polypropylene liner provides a 100% non-metallic, non-corrosive water reservoir.
- Controls pressure build-up and prevents water hammer.
- Protects water heaters from harmful pressure cycling.
- Factory pre-charged to 40 PSI for easier installation.
- Compatible with potable hot water systems up to 150 PSI and 200°F.
- NSF/ANSI 61 and IAPMO listed.
- Covered by a 7-year warranty.
